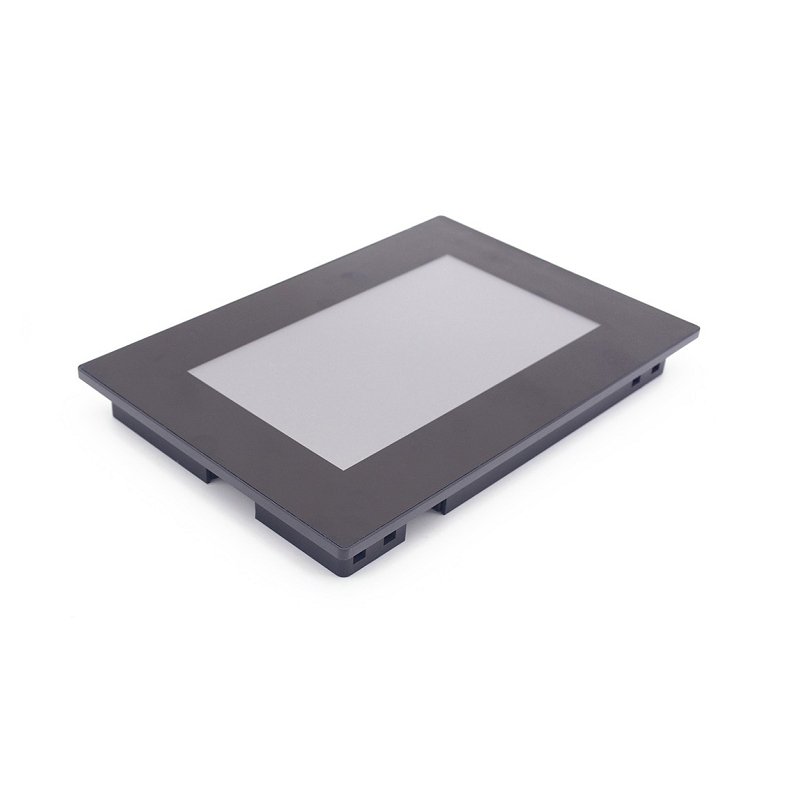

Nextion Enhanced NX8048K070-011C 7.0″ HMI Capacitive Touch Display with enclosure

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes. With the Nextion Editor software, users are able to create and design their own interfaces for Nextion display.SpecificationsModelNX8048K070-011CSize (inch)7Operating Voltage (VDC)5Colour64K 65536 colorsLayout size181 mm(L)×108 mm(W)×9.3 mm(H)Active Area (A.A.)164.90mm(L)×100.00mm(W)Visual Area (V.A.)154.08mm(L)×85.92mm(W)Resolution800×480 pixelTouch TypeCapacitiveTouches> 1 millionBacklightLEDBacklight lifetime (Average)>30,000 HoursBrightness230 nitRAM8192 BYTEFLASH Memory32 MBInstruction Buffer1024 BYTEUser Storage1024 BYTEWeight598gShipment Weight0.6 kgFeatures:Nextion Type: Intelligent SeriesNextion Models: NX8048K070-011C (7.0-inch capacitive touchscreen with enclosure)Built-in RTC support (Battery type: CR1220)Operating Voltage:5V-7VOperating Current: 510mA(VCC= 5V, Brightness is 100%).Package Includes:1 x Power Supply Test Board1 x Nextion Enhanced NX8048K070-011C 7.0″ HMI Capacitive Touch Display with enclosure1 x XH2.54 4P Wire4 x Mounting Buckle & Screw
