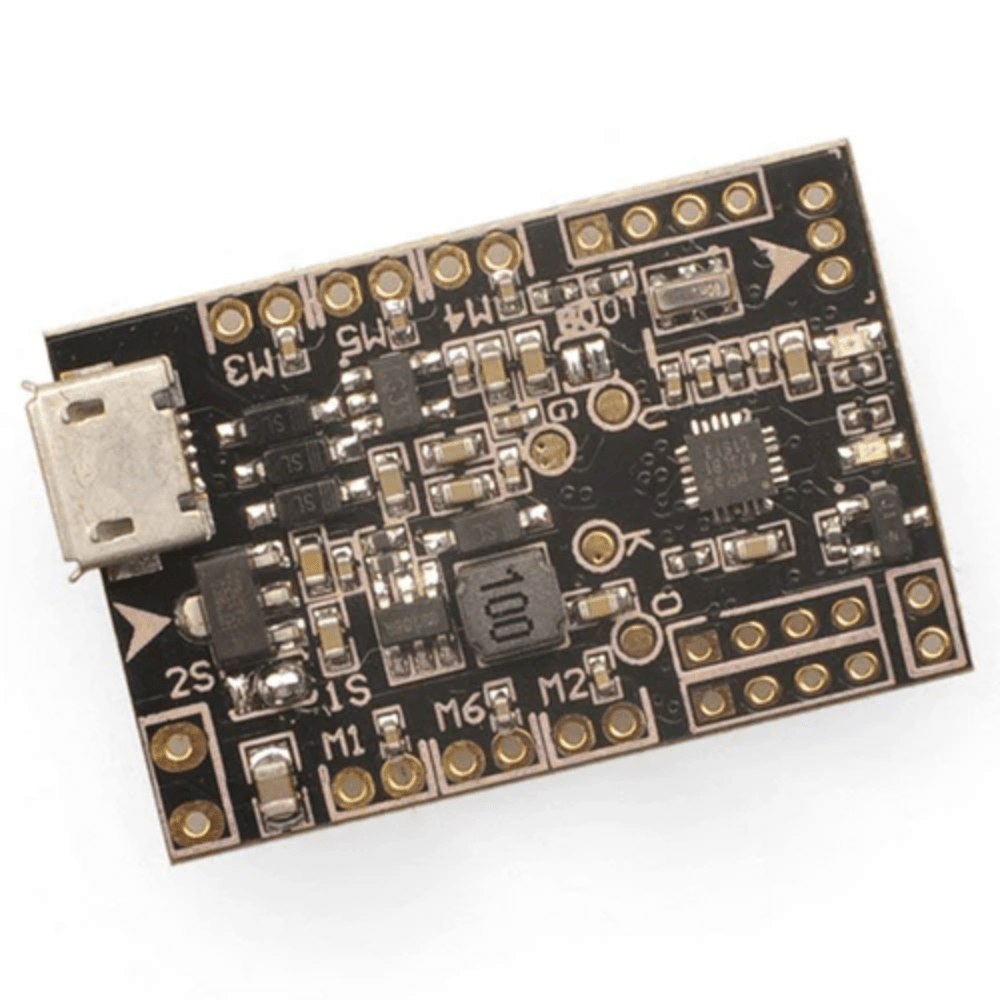

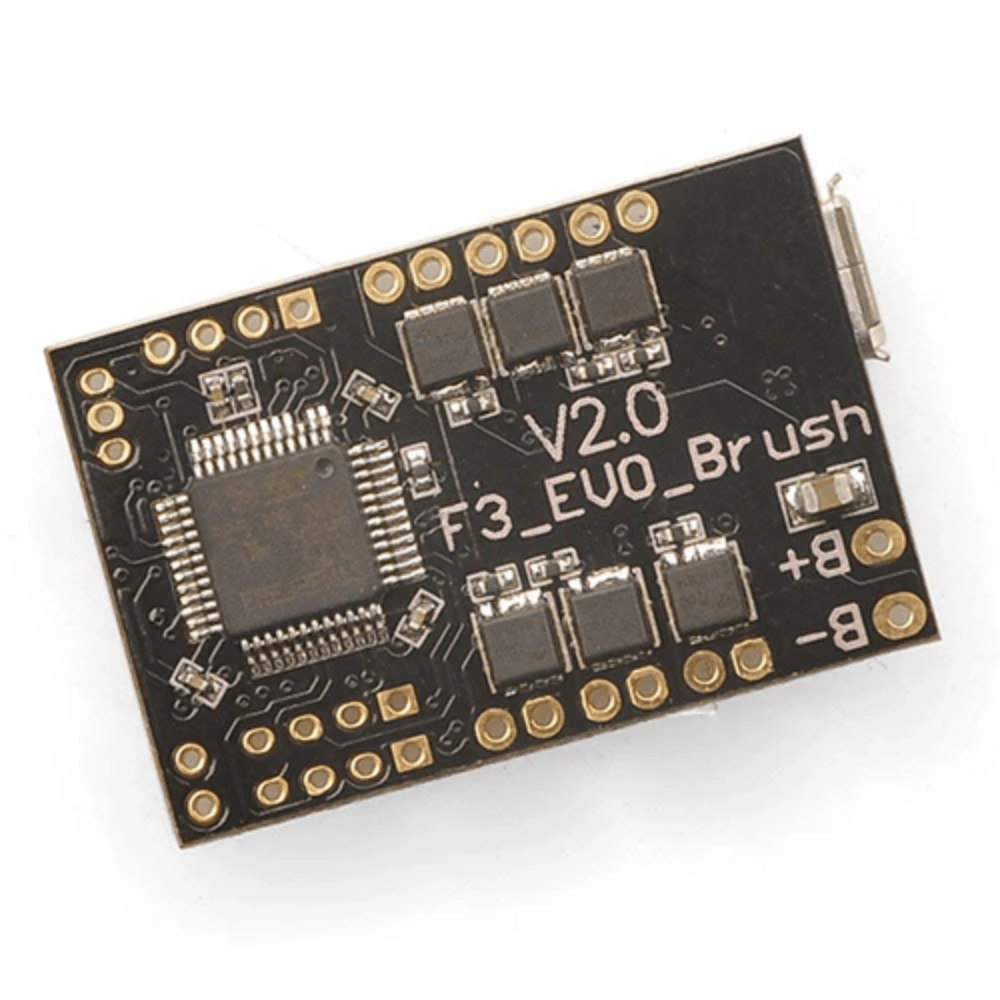

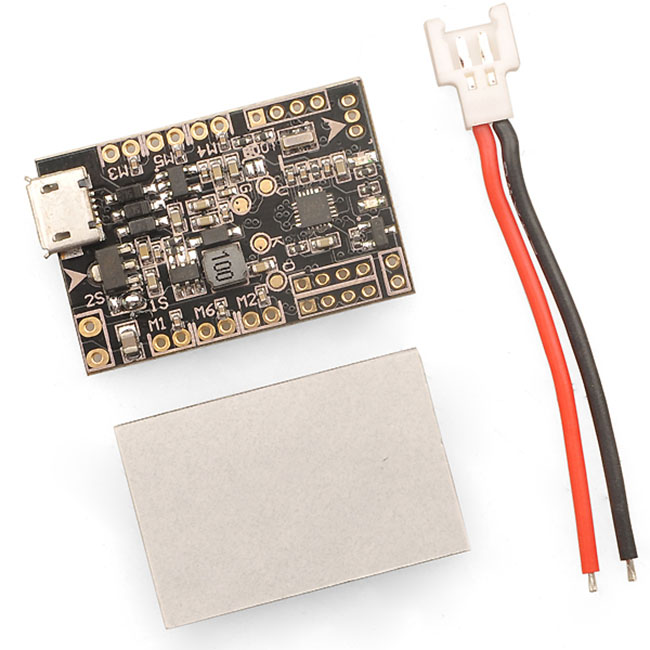

F3 Brushed Flight Control Board Based On SP RACING F3 EVO Brush for Micro FPV Frame

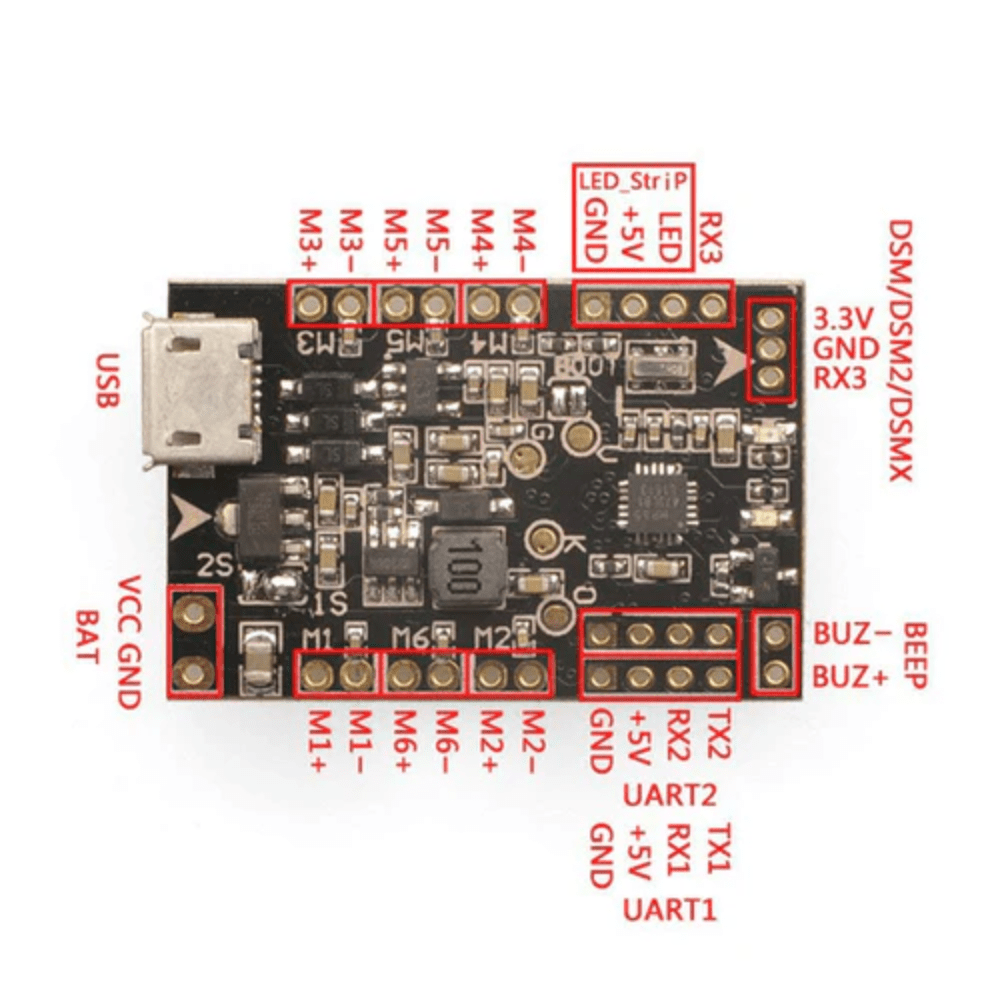

Specifications: Supported Receiver Input Signal: PPM, SBUS, DSM Support PPM, SBUS, DSM receiver input signal Battery voltage detection and buzzer interface Run on SP RACING F3 EVO firmware 32 brush flight control Large current NMOS transistors, operating current can reach 10A or higher Use STM32F303CCT6 MPU6500, advanced hardware platform F3 for higher flight stability
