170W High Power H-Bridge Motor Driver Module For NMOS Brake Duty Cycle For DC 5-40V Motor 4 External NMOS Tubes Two PWM Inputs

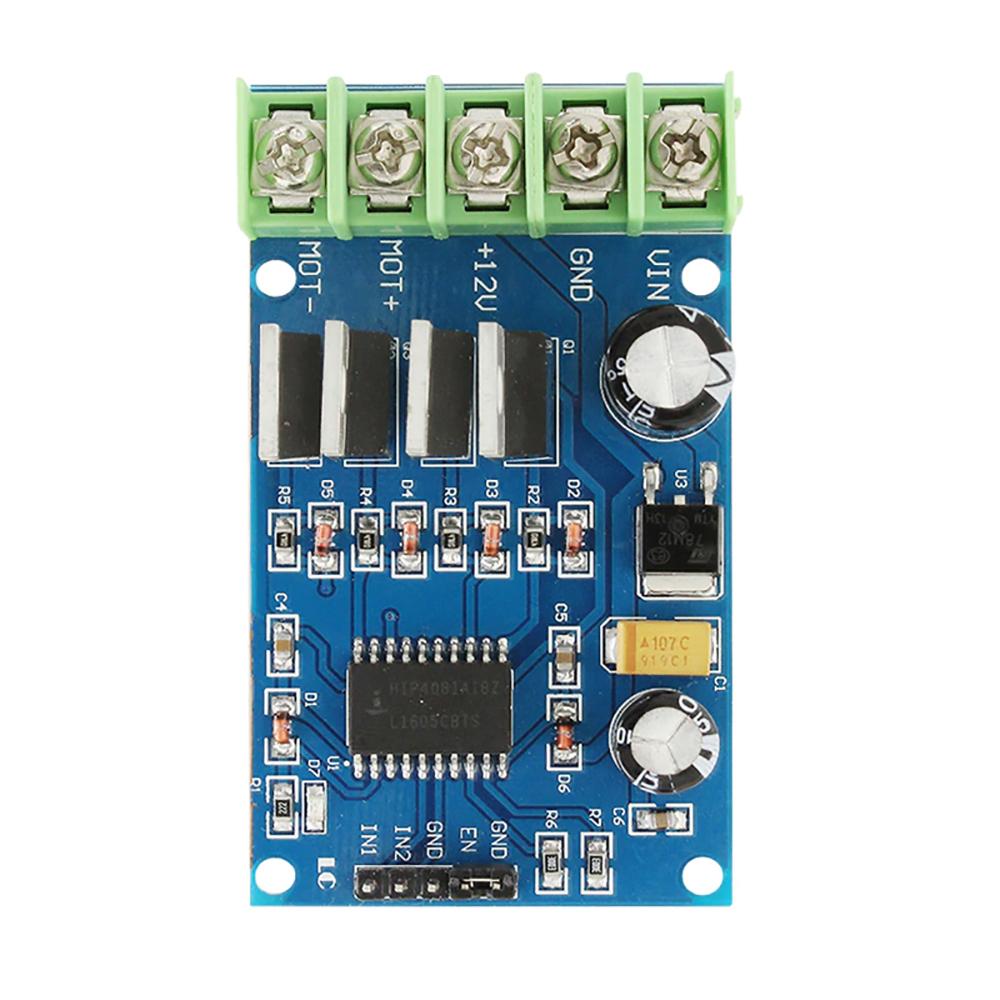

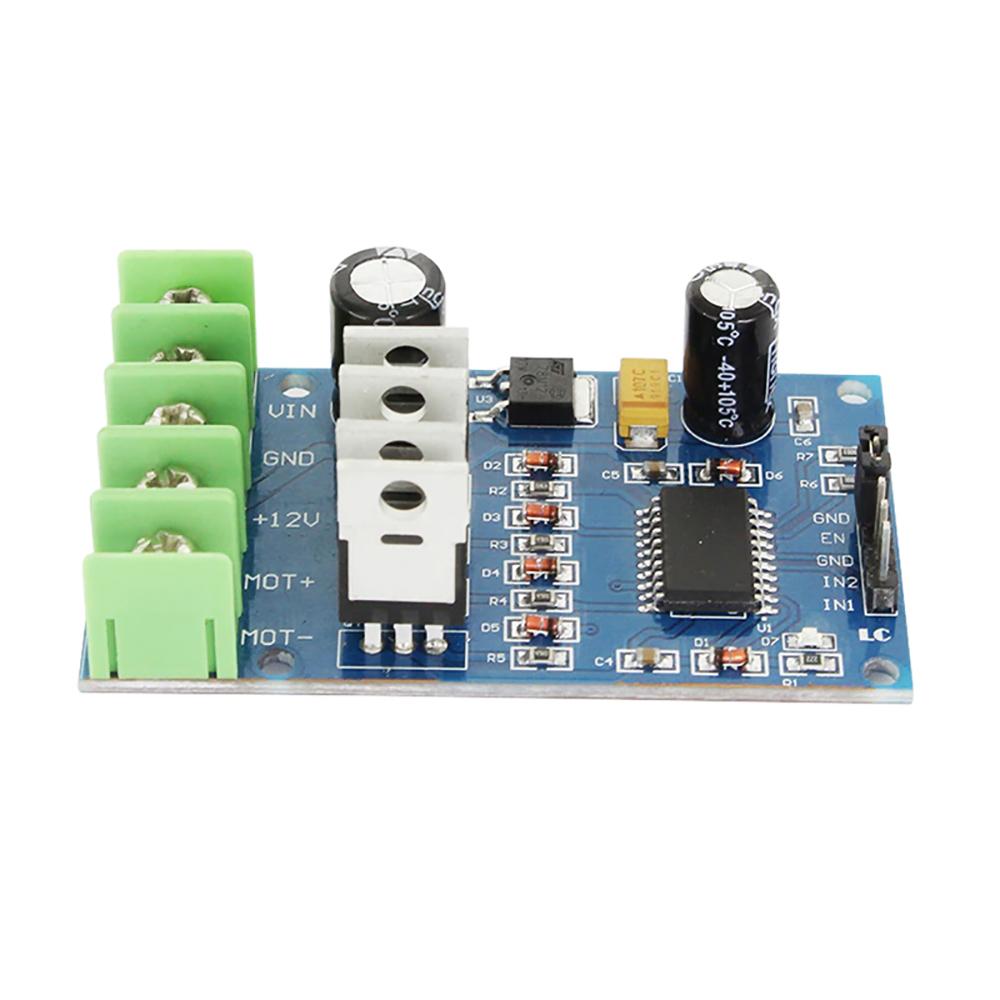

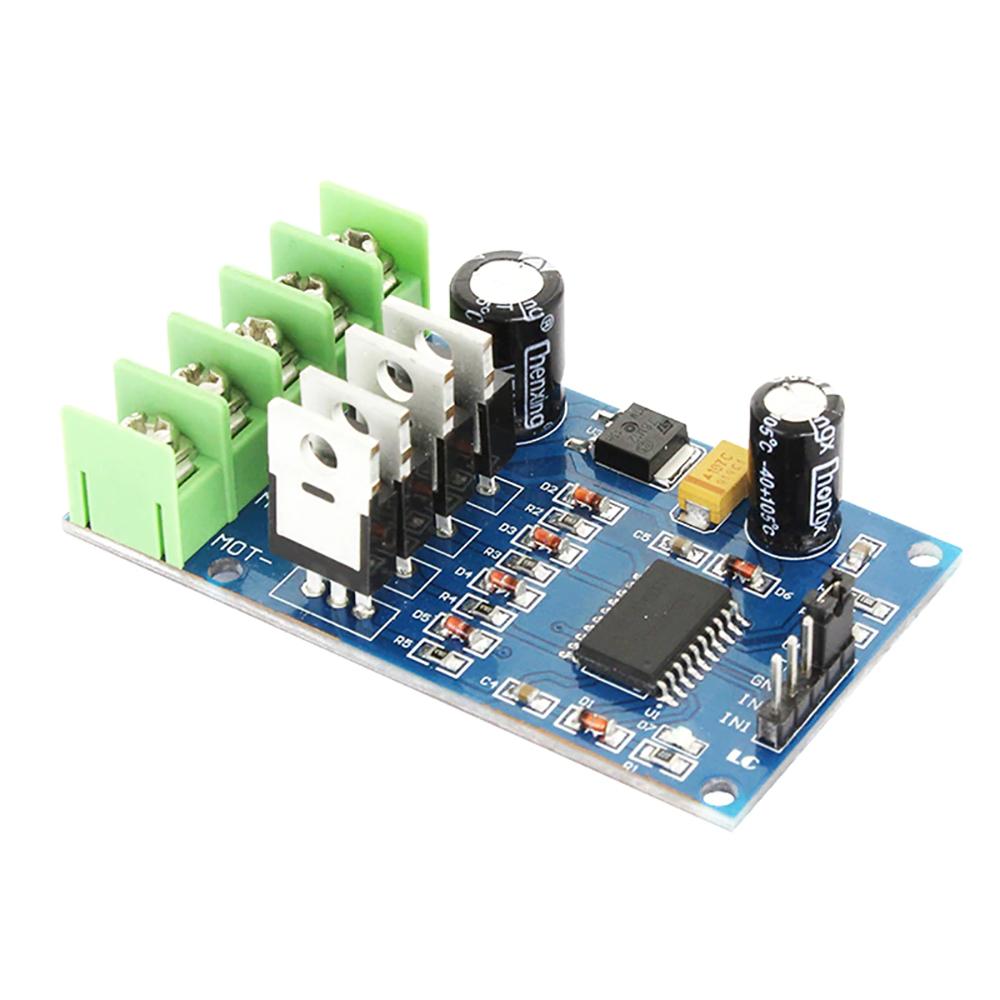

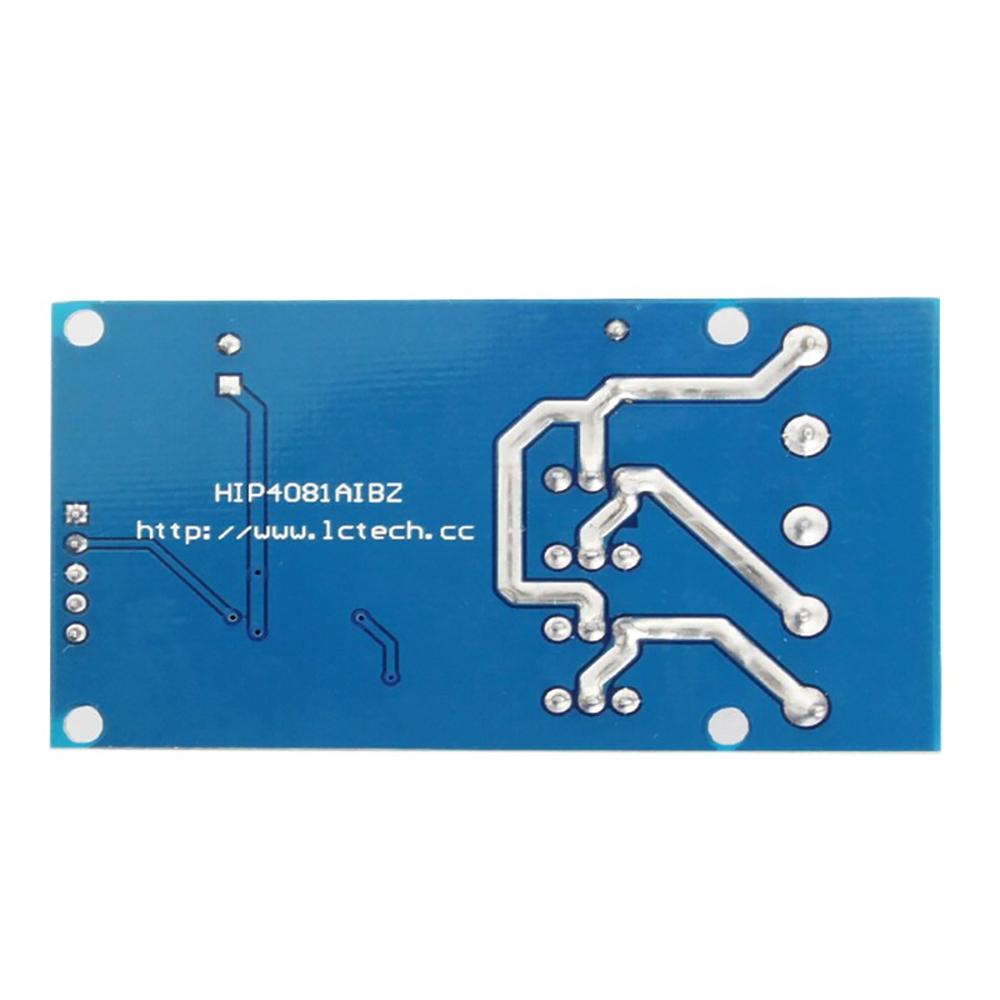

Specifications:  With full bridge driver chip low resistance 55V110ANMOS, the motor can be turned forward and backward. Two PWM inputs, dutycycle regulated in 0-100%. Instant braking ability. The working voltage is 10-40V and the power is below 170W The control is simple and convenient. Only 3 input lines are needed to control the motor Chip built-in dead time hardware control, more suitable for frequent reversing. Reduce the loss of the pipe itself. Tin plating on the back of the module. A conductor can flow through a larger current. Support 5V, 3..3V logical input. Suitable for all types of single-chip IO port direct control. You can also control the positive and negative rotation of the motor by analog input. Board size: 38.8*67.5mm
