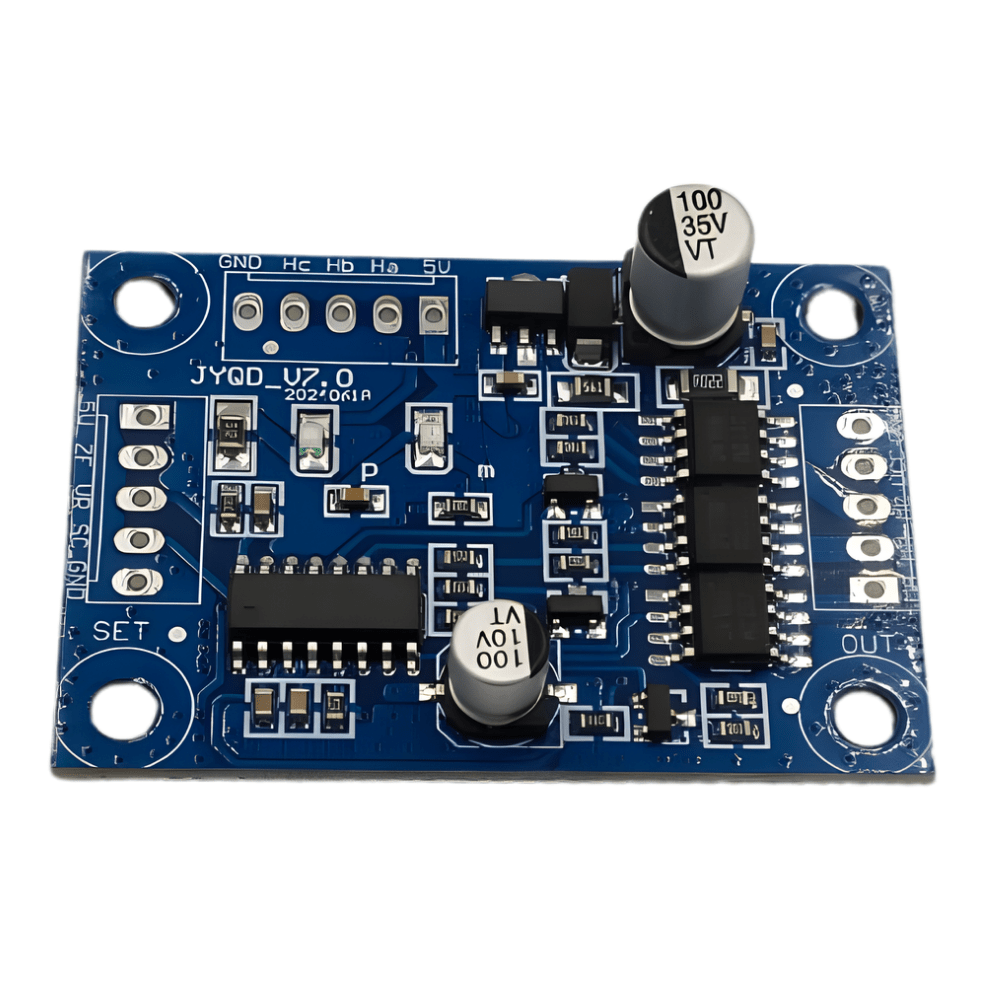

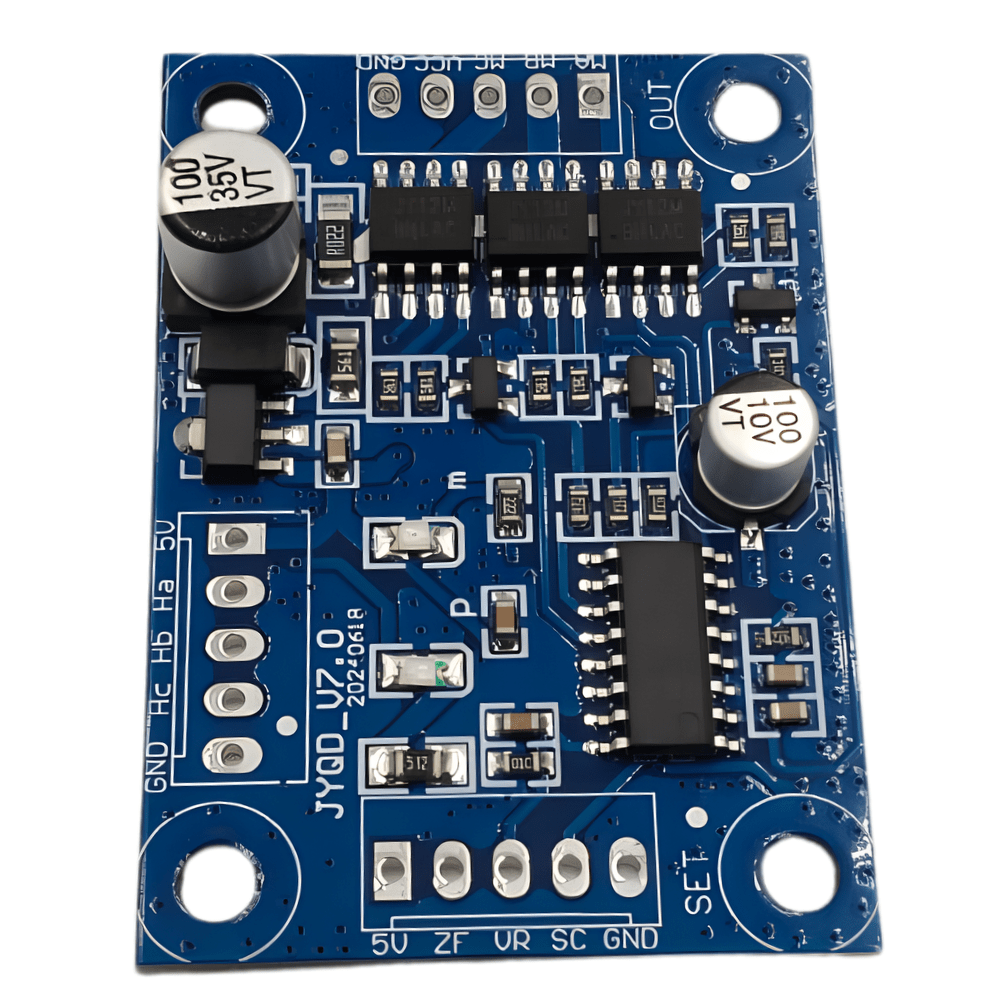

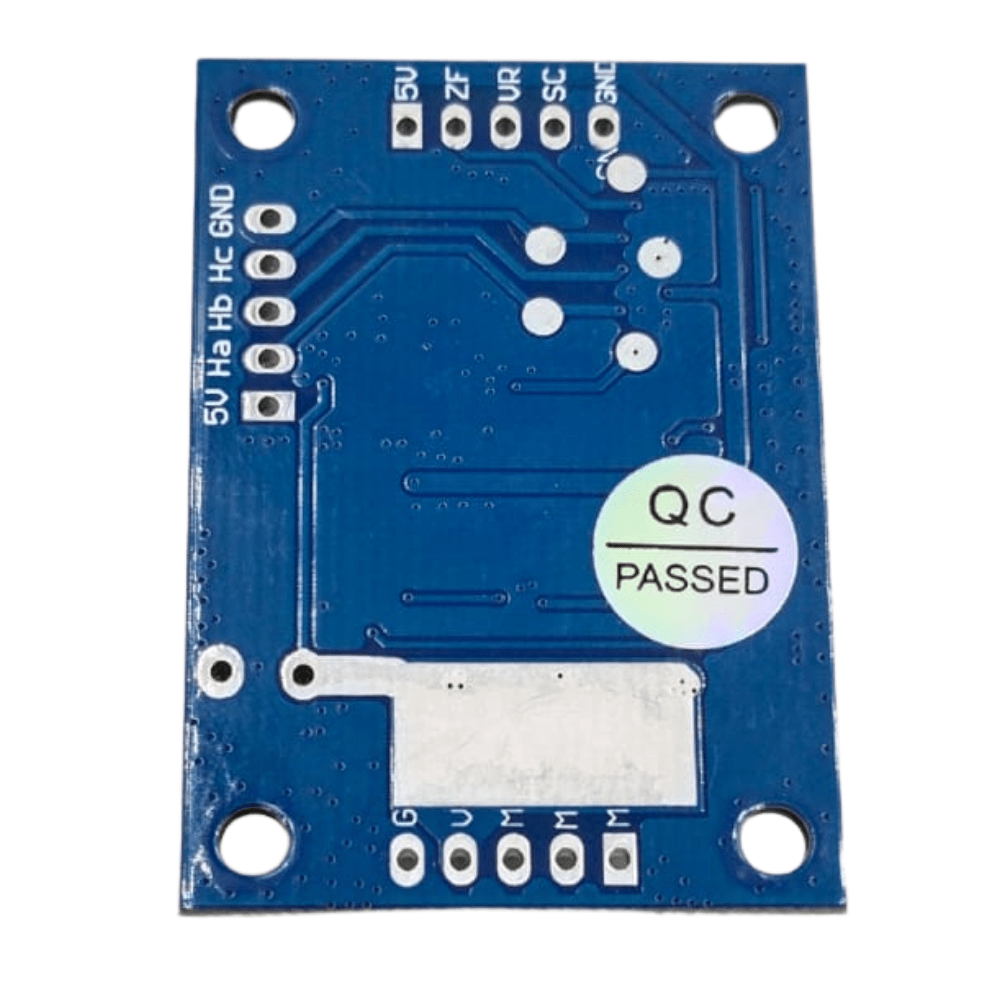

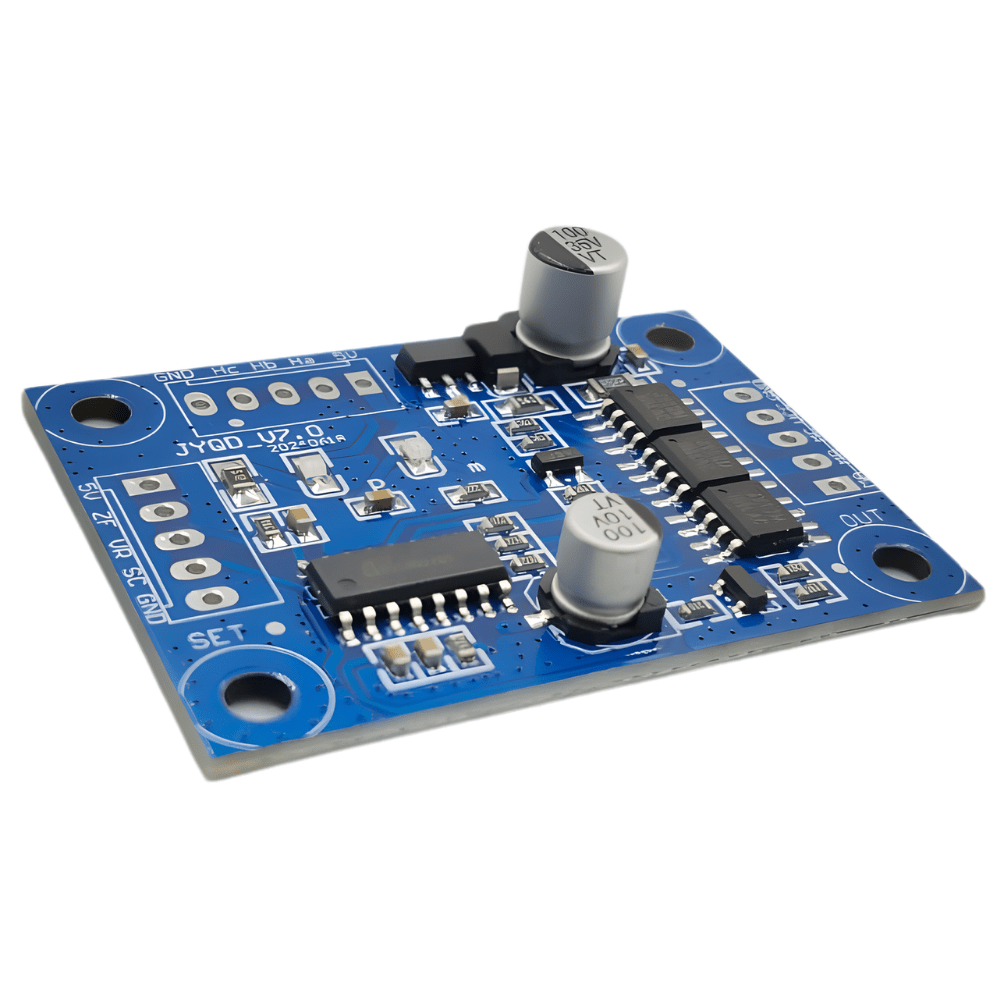

Brushless DC Motor Driver Board JYQD-V7.0

Specifications: Model: JYQD-V7.0 Motor Type: 3-phase Brushless DC (BLDC), sensorless Input Voltage: DC 6–60 V (model dependent) Maximum Current: Up to 20 A (peak, depends on cooling) Speed Control: PWM signal / analog voltage control Direction Control: Forward / Reverse supported Braking Function: Supported Control Interface: Logic-level control pins Protection Features: Over-current, under-voltage, over-temperature protection Efficiency: High efficiency with low power loss Cooling: Heat-sink required for high-power operation Mounting Type: Panel or enclosure mounting Applications: Electric vehicles, pumps, fans, robotics, automation systems
