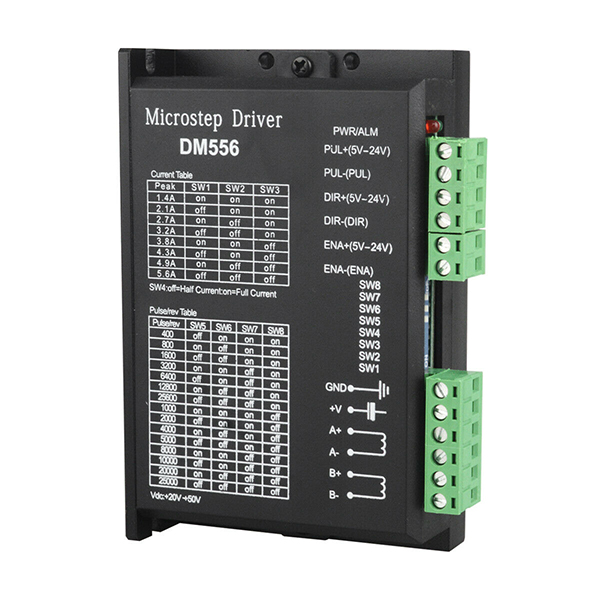

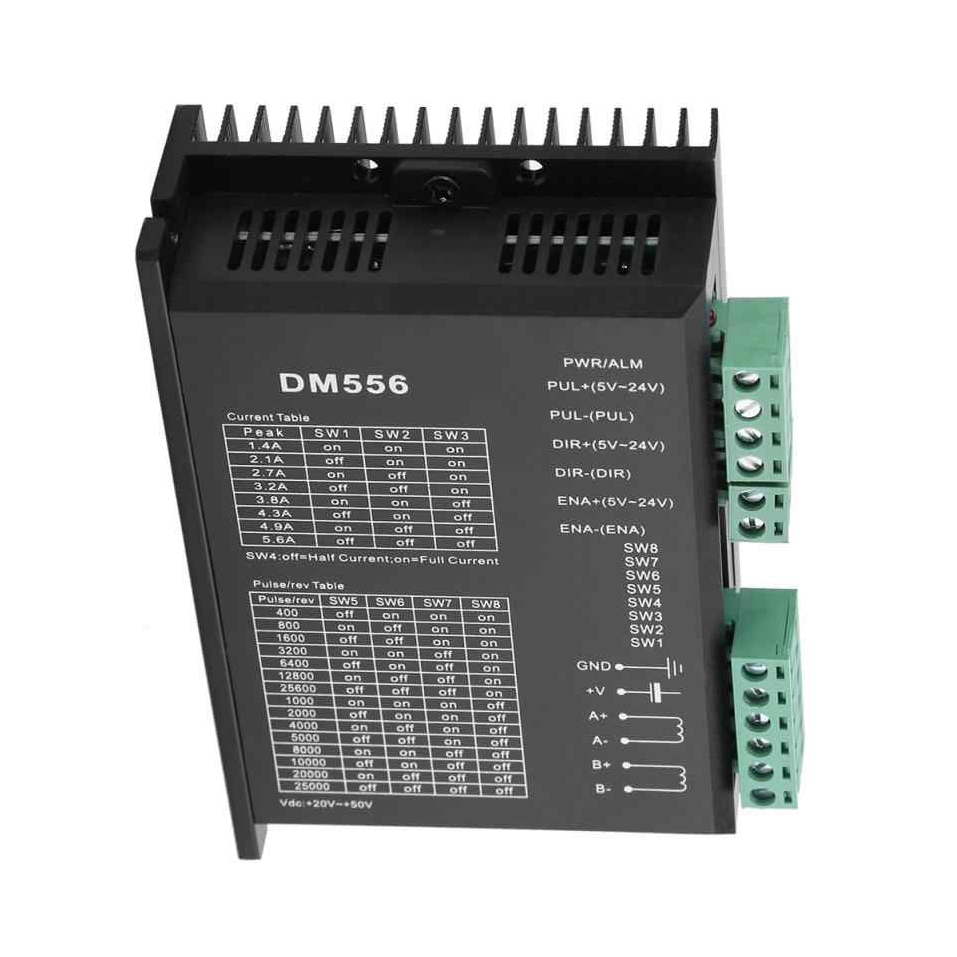

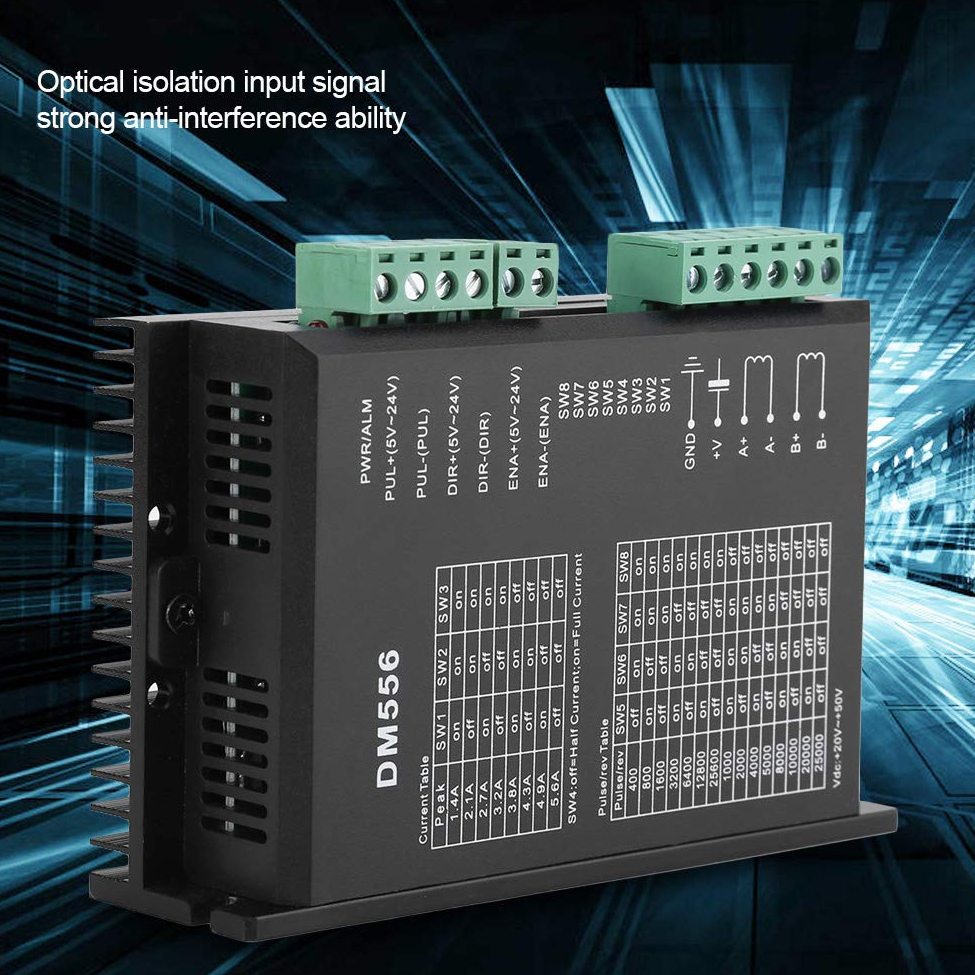

DM556 Digital Stepper Motor Driver with Micro Stepping 20 to 50V 5.6A

Features: Extra-low motor noise offers excellent quietness Anti-Resonance, provides optimum torque and nulls mid-range instability Self-test and Auto-configuration technology, offers optimum responses with different motors Microstep resolutions programmable, from full-step to 102,400 steps/rev Supply voltage up to 50 VDC Output current programmable, from 0.5A to 5.6A Pulse input frequency up to 200 KHz Automatic idle-current reduction Supports PUL/DIR and CW/CCW modes
