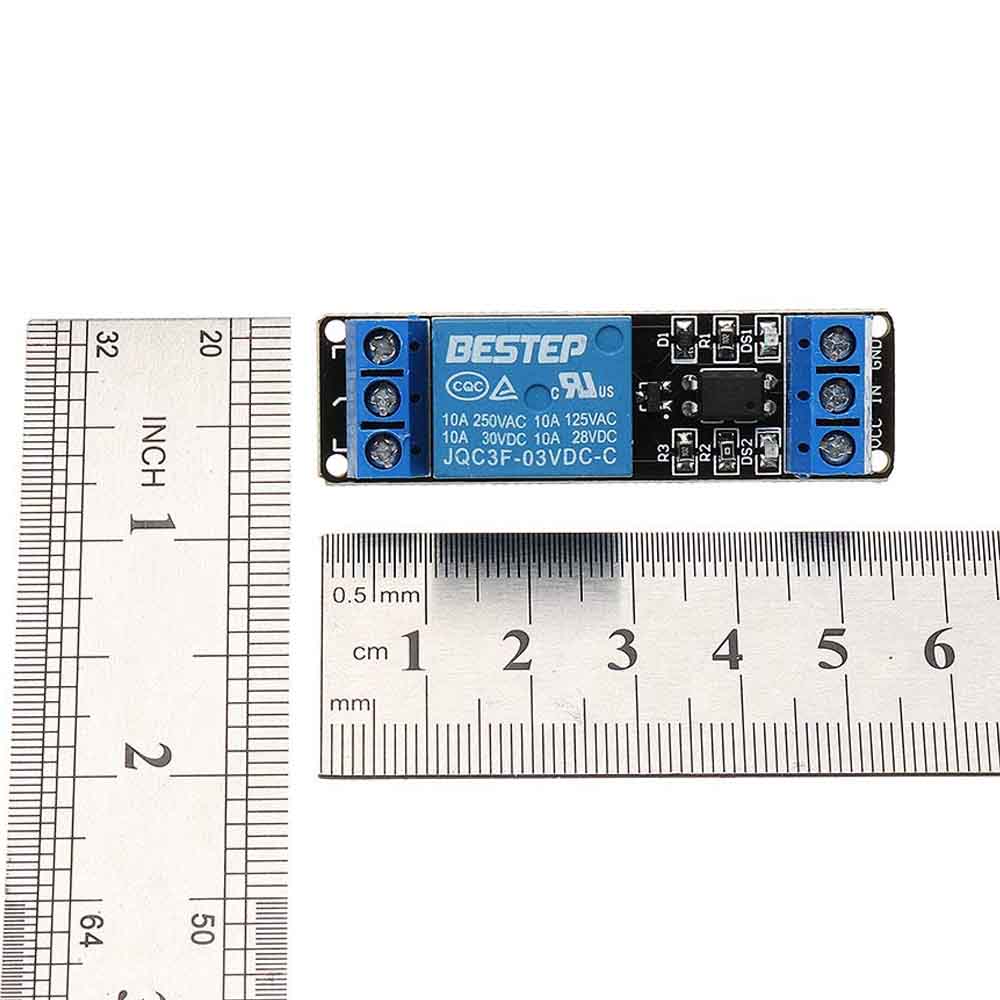

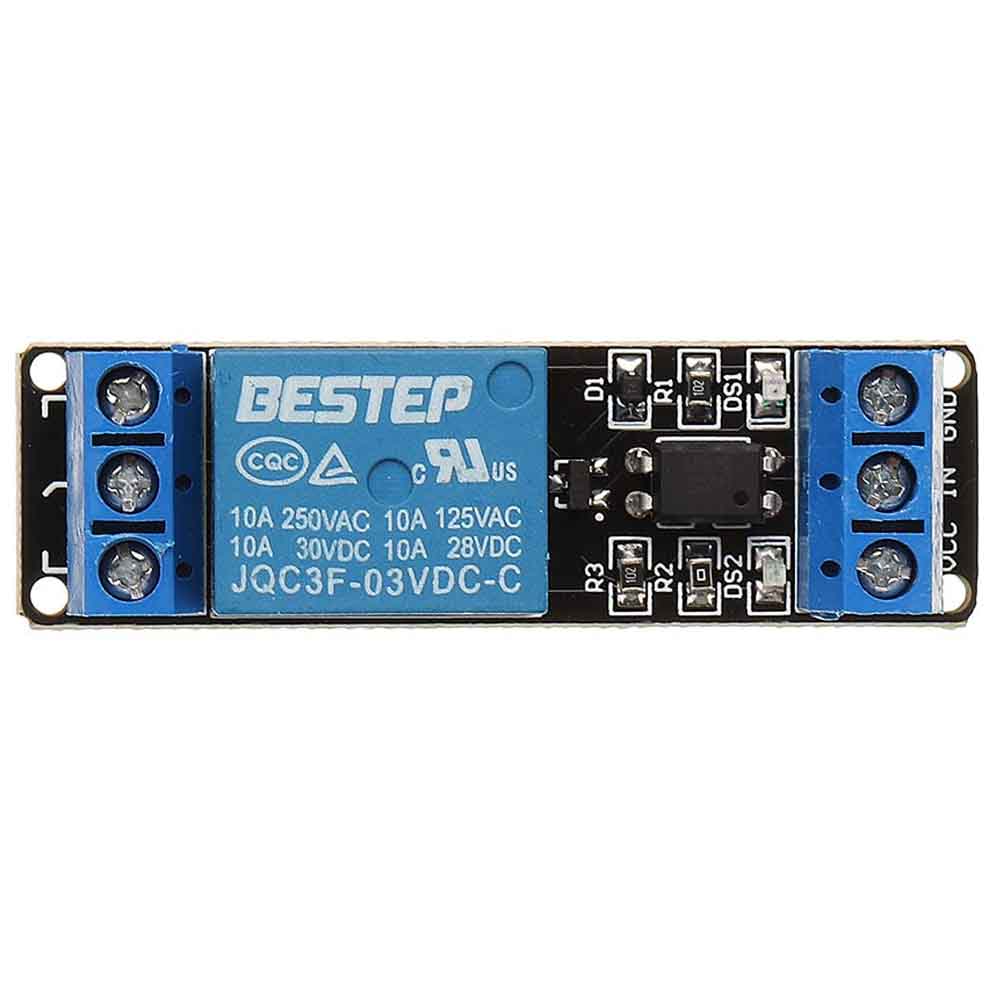

BESTEP 1 Channel Low Level Relay Module with Light Coupling 3V DC

Rated 5.00 out of 5 based on 1 customer rating

Brand :

Hercules

$ 1.29

Categories: Power Supply, Exercise Benches, , Berg Burg Strips Brand: Hercules

Specifications: Two module interface: 1. DC : Connect the power supply positive pole (voltage 3.3V). 2. DC-: Connect the power negative pole. 3. IN: Low level (3.3V) control relay pull in. Relay output terminal: 1. NO: Relay normal open, the relay suspends before pulling in, and then short-connect with the COM. 2. COM: Relay common interface 3. NC: Relay normal close, short connected with COM before pulling in and suspended after pulling in.
