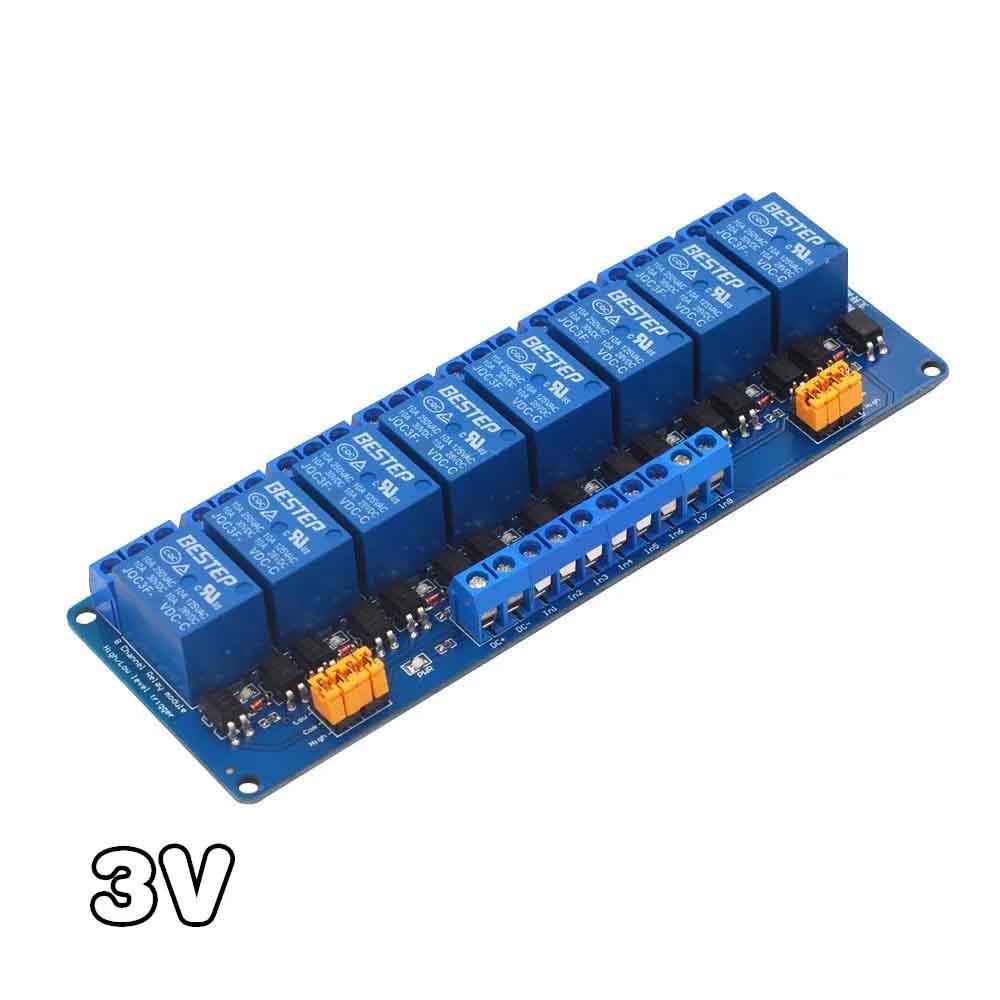

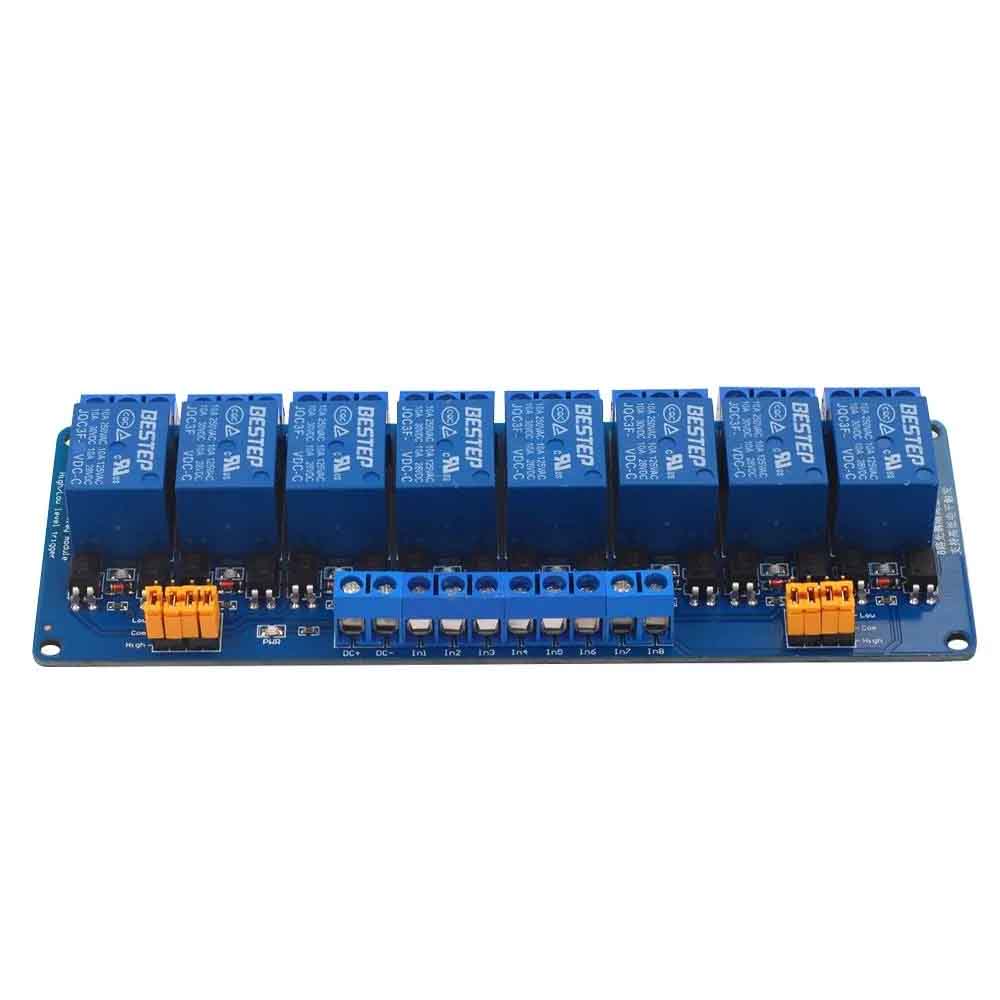

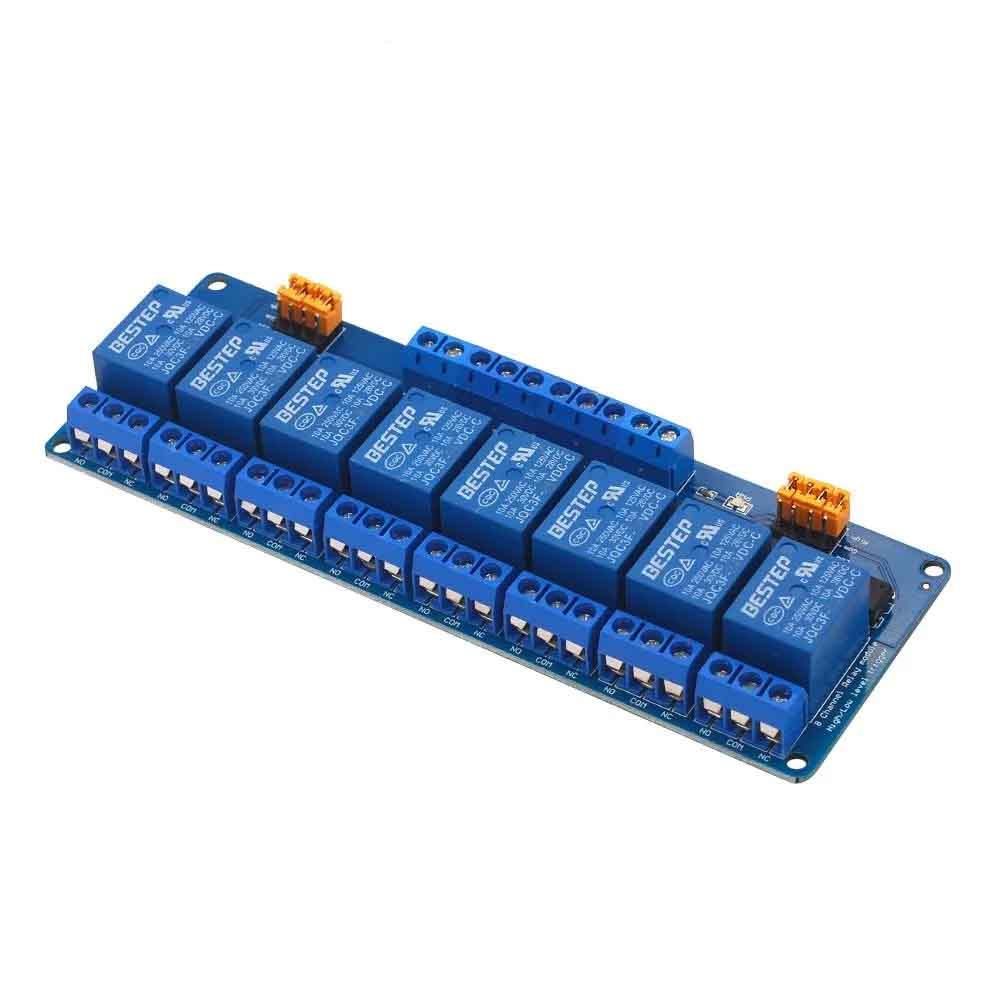

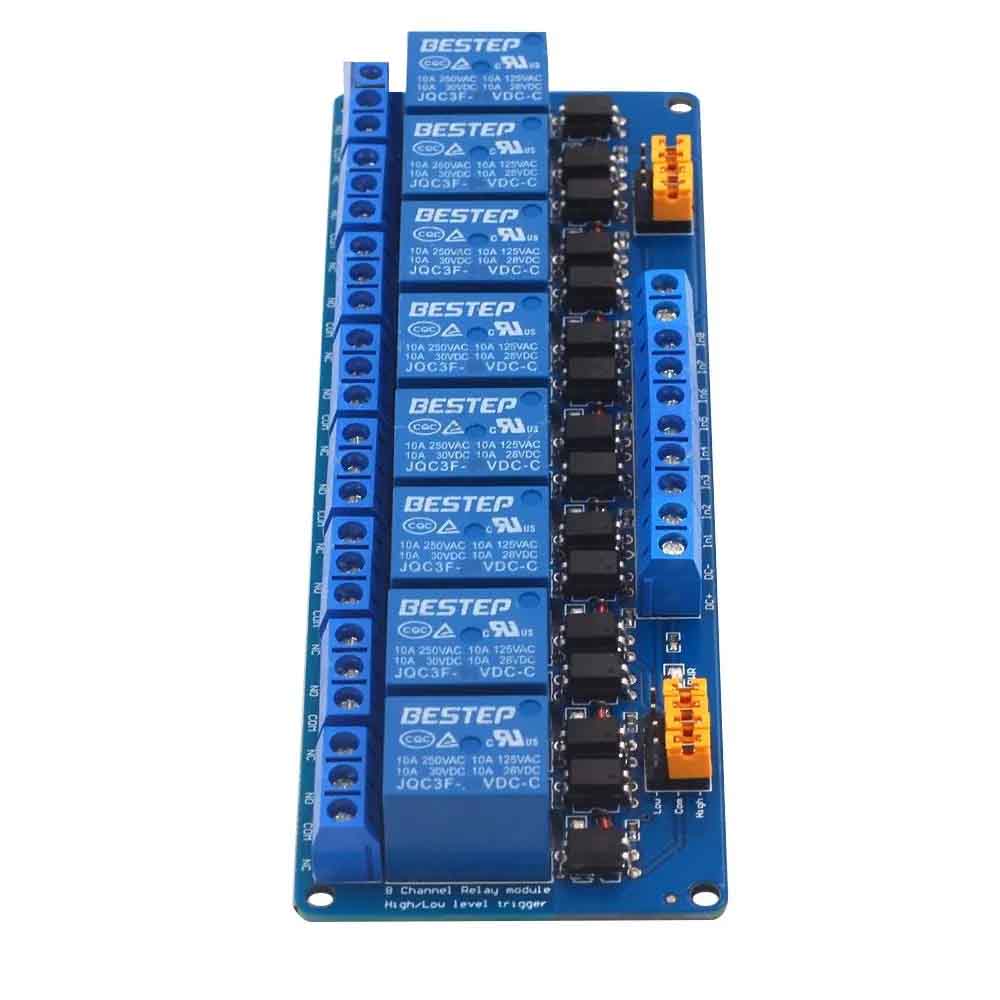

BESTEP 8 Channels 3V Relay Module High and Low Triggering

Features: Maximum load: AC 250V/10A, DC 30V/10A. The chip optocoupler isolation, strong driving ability, stable performance, and trigger current 5mA. The working voltage is 3V. Each channel of the module can be set up by a high jumper or low-level trigger. Fault-tolerant design, even if the control line is broken, the relay will not act. Power indicator (green), 8 relay status indicator (red). The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient. Module size: 142mm x 50mm x 18.5mm (length x width x height). There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm.
