CAT6 RJ45 Adapter Keystone Jack Ethernet Connector Rj45 Plug Cat6 – 1 Pc

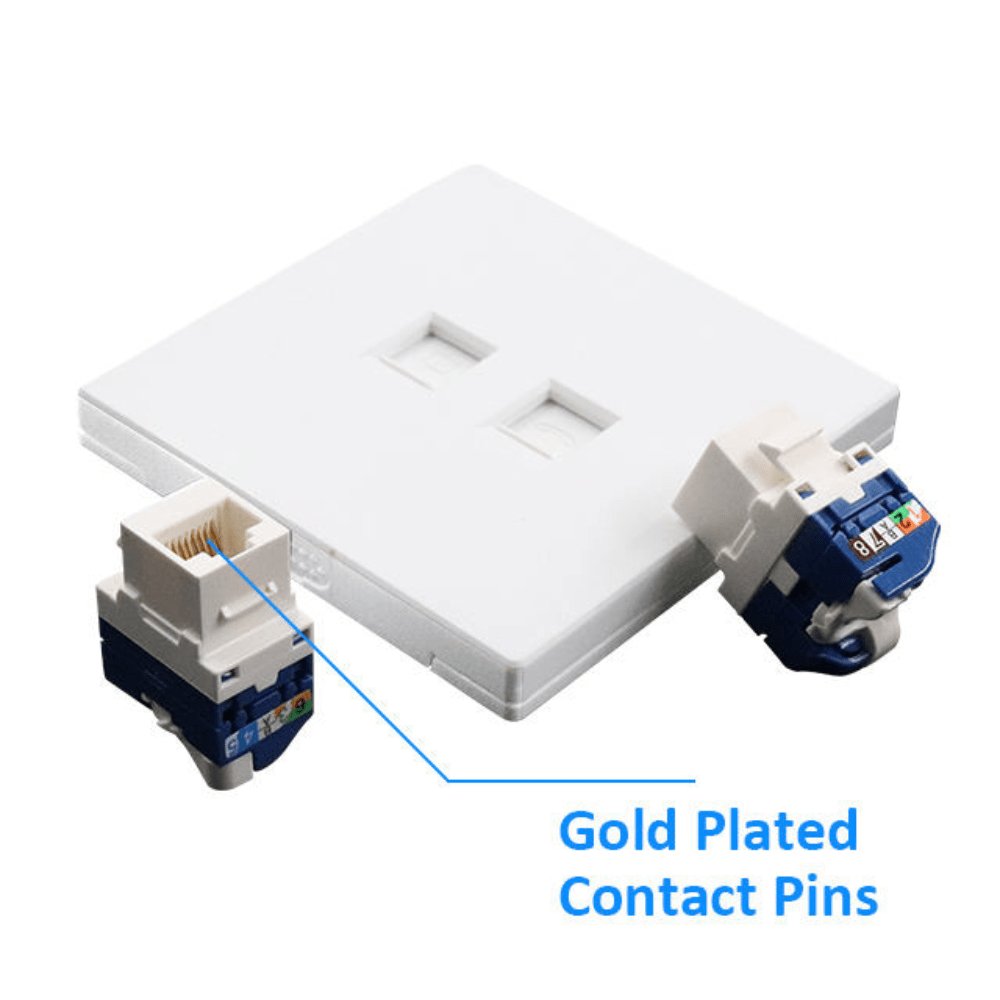

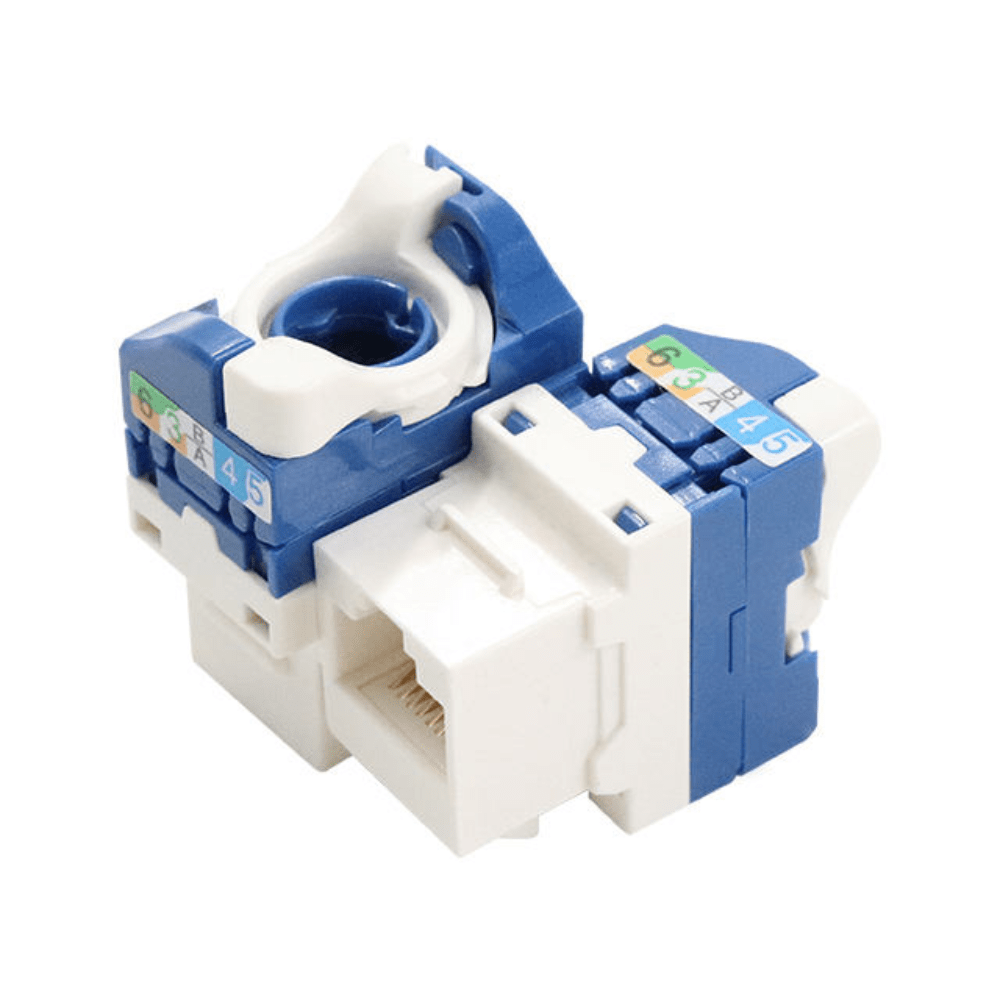

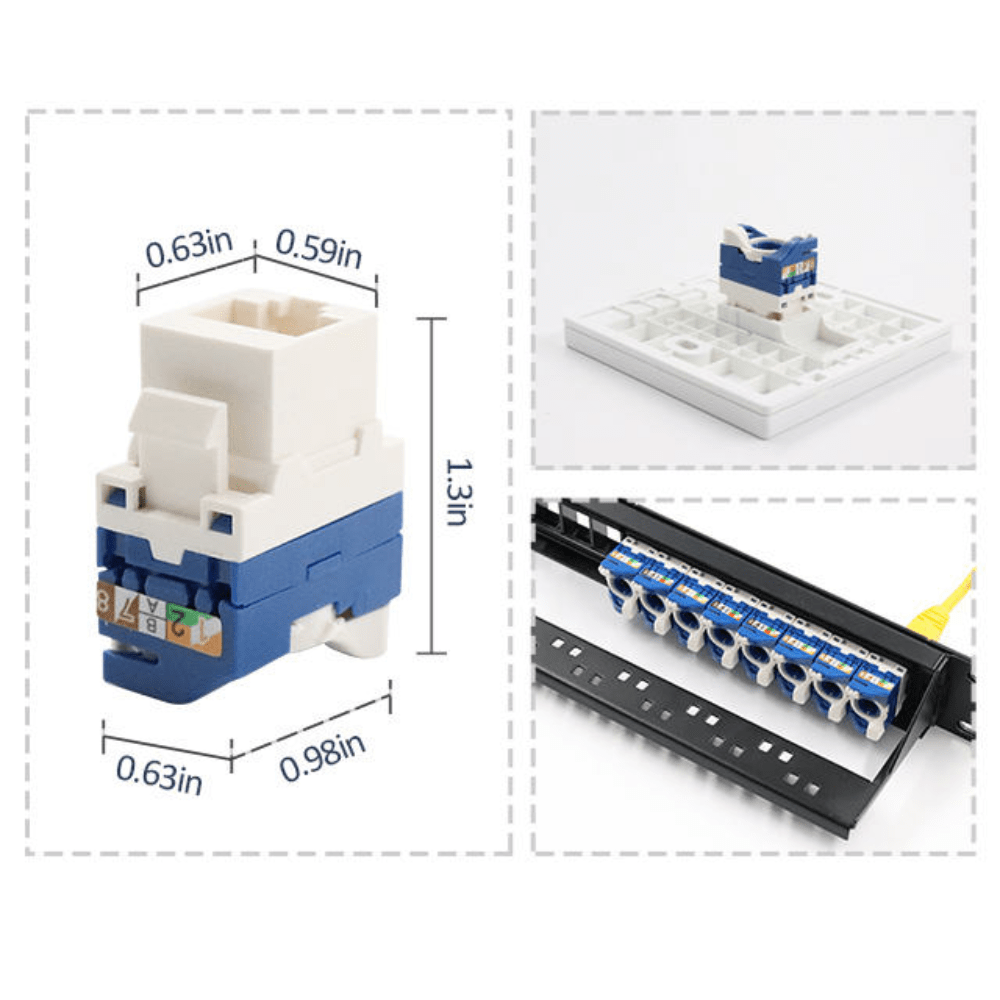

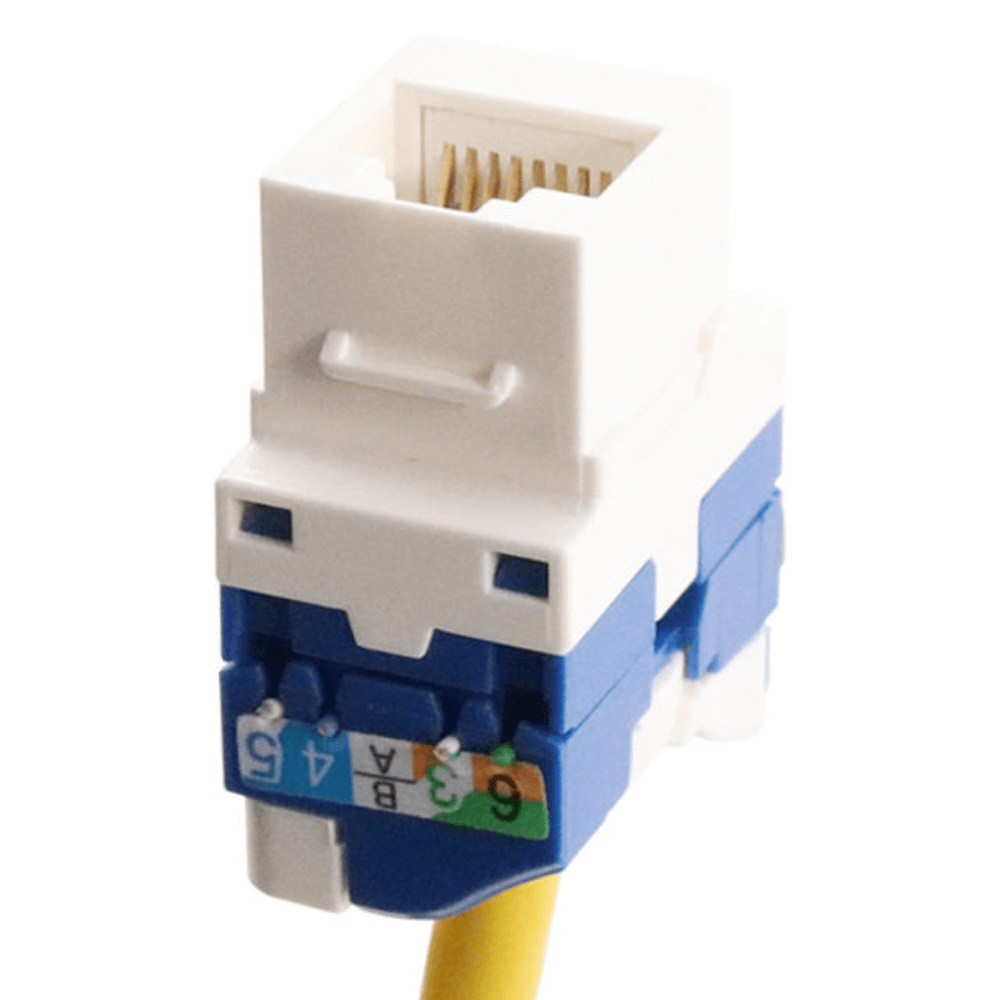

Specifications: Category: Cat6 (Class E) unshielded (UTP) module. Compliant with ANSI/TIA-568-C.2, ISO/IEC 11801 (2nd edition or later) and IEC 60603-7 for jacks. Supports Gigabit Ethernet (1000BASE-T) and backward compatible with 100BASE-T, 10BASE-T. Bandwidth: Typically rated to 250 MHz (some higher-performance modules go to 300-500 MHz). Tool-free termination design: Allows insertion of wires without an impact punch-down tool. For example accepts solid (and sometimes stranded) 22–26 AWG conductors. Contact material: phosphor bronze pins, often gold-plated (e.g., 50 µinches gold over nickel). Housing/insulation material: Flame-retardant plastic (e.g., PC/ABS, UL94 V-0 or V-2 rating). Mating cycles: e.g., min 750 insertions of RJ45 plug. Termination cycles/IDC life: e.g., ≥200 terminations. Wire gauge compatibility: typically AWG 22–26. Operating temperature: for example –10 °C to 60 °C; storage –40 °C to 70 °C. Insulation resistance: e.g., >500 MΩ. Dielectric strength (contact to contact): e.g., 1000 V DC. Supports PoE/PoE /4-pair PoE (IEEE 802.3af/at/bt) — some modules are rated for 100 W. Format: Standard keystone jack module (fits faceplates, patch panels). Cable entry orientation: Some offer “180° termination” or “rotating/angled” design for easier wiring in tight spaces. Wiring scheme support: Both T568A and T568B. Backwards compatibility: Works with Cat5e cable, RJ45 plugs.
