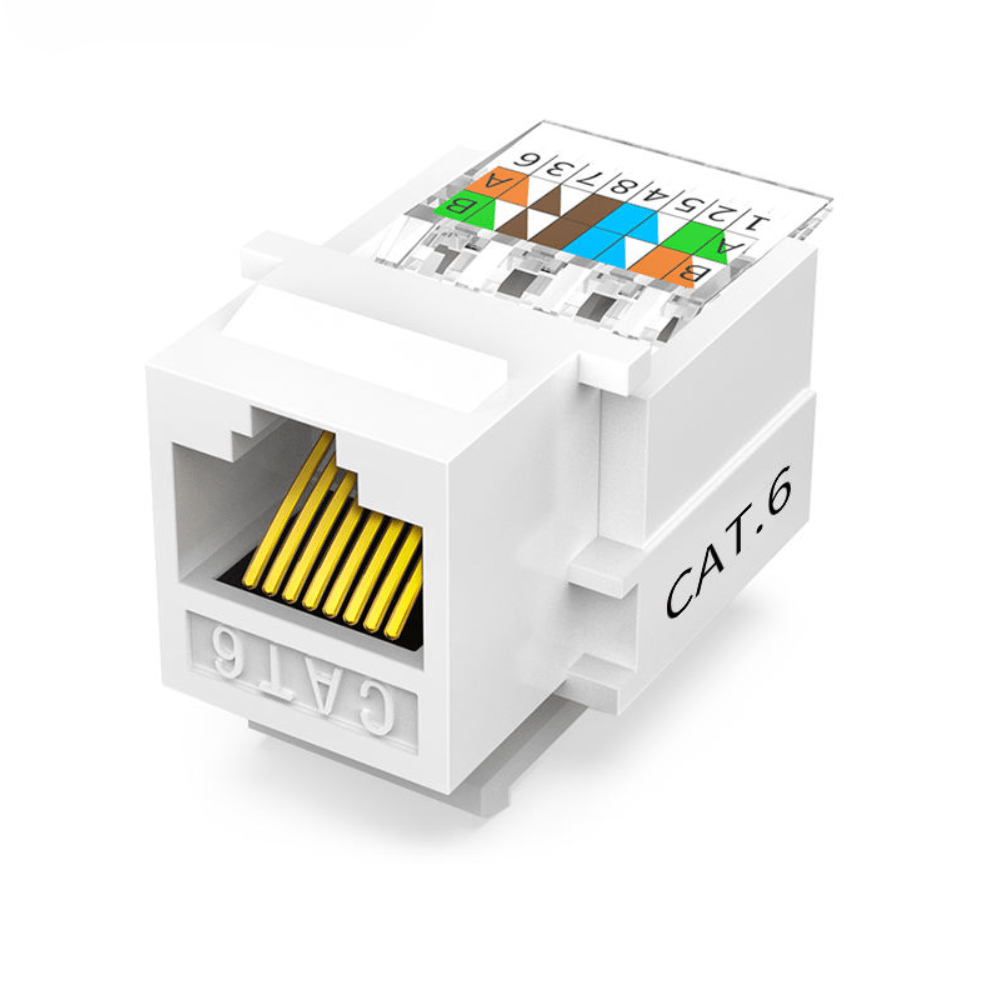

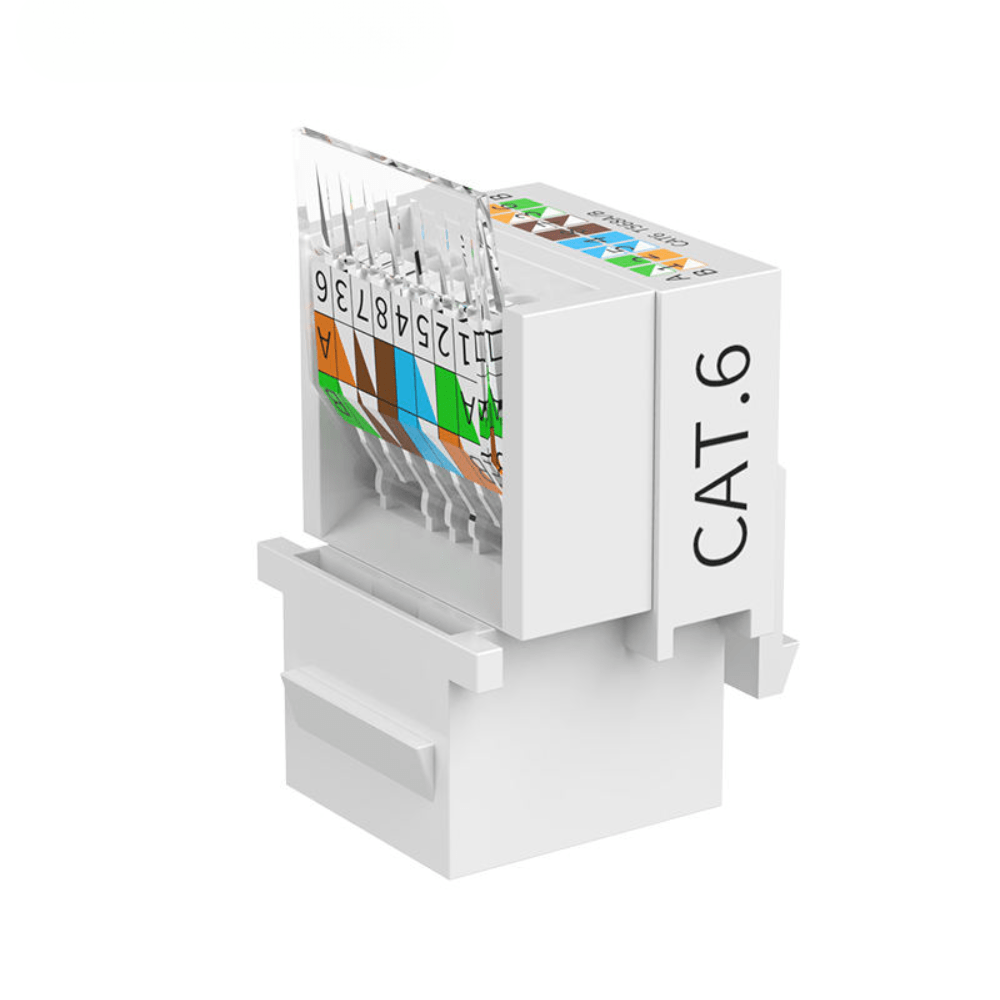

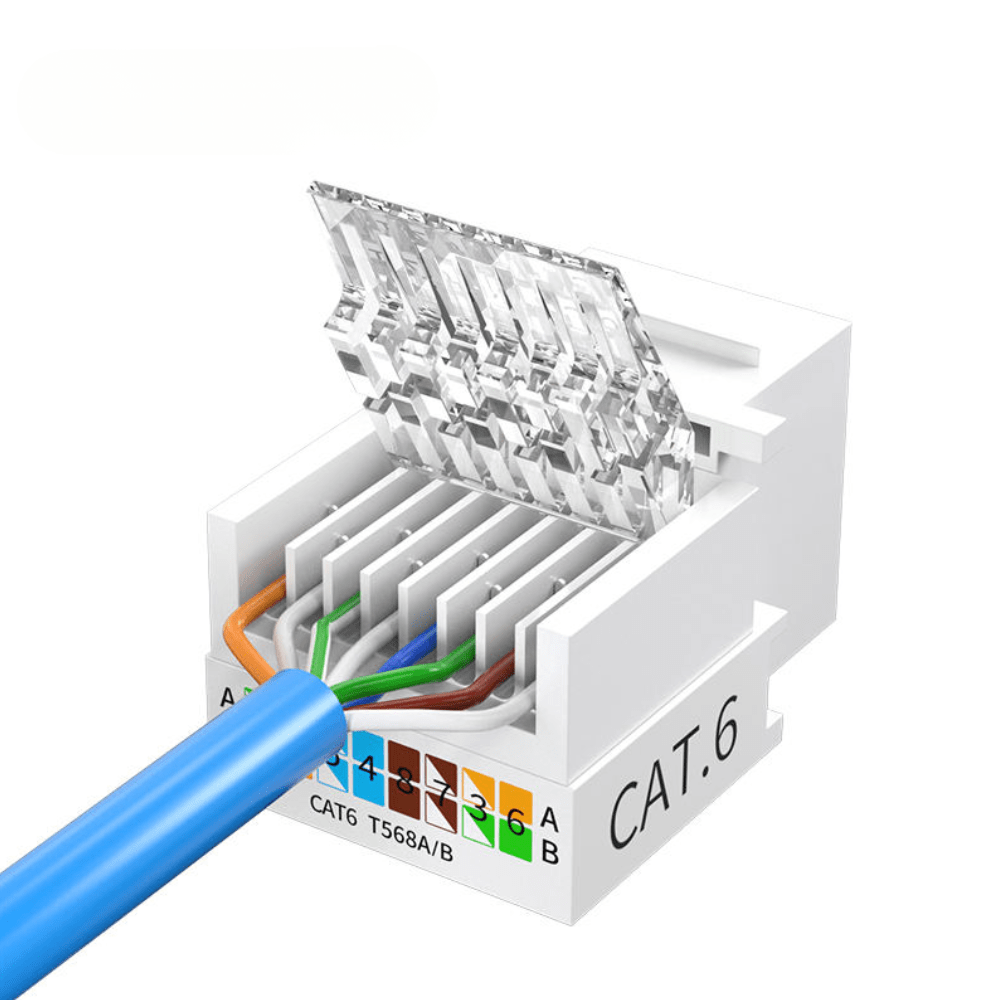

CAT6 Utp RJ45 8P8C No Shielding No Tools Stable Transmission Link Keystone Jack – 1 Pc

Specifications: Type: RJ‑45 8‑position 8‑conductor (8P8C) keystone jack module. Standard snap‑in keystone format; compatible with wall plates, patch panels, surface mount boxes. Supports T568A and T568B wiring schemes. Backward compatibility: a higher category jack (Cat6A) will accept lower category (Cat6, Cat5e) cables though performance will match the lowest rated component. Designed for unshielded twisted‑pair (UTP) cabling (no shielding/foil around pairs). Bandwidth / Category performance: Cat 5e: ~100 MHz typical. Cat 6: ~250 MHz typical. Cat 6A: ~500 MHz typical. Voltage rating: e.g., ~125 V AC for many models. Current rating: ~1.5 A maximum in many modules. Contact resistance: typically ≤ 20 mΩ (Cat6, Cat6A) or similar threshold. Insulation resistance: e.g., ≥ 500 MΩ or sometimes ≥ 1000 MΩ @ specified voltage. Dielectric strength: Examples: 750 V AC RMS @ 60Hz for 1 minute. Conductor/wire gauge compatibility: Often 22‑26 AWG solid or stranded. Mating/insertion cycles: ≥ 750 insertion cycles is typical for some Cat6 modules. Housing material: High‑impact, flame‑retardant plastic (e.g., UL94 V‑0 or V‑2 rated) for most unshielded versions. Size/mounting: Fits standard keystone jack opening (≈ 14.7mm × 20.1mm) in many designs. Operating temperature typical: ~‑10 °C to 60 °C (varies by model). Storage temperature typical: e.g., ‑40 °C to 70 °C. Standards/compliance: Many modules meet standards such as ANSI/TIA‑568.2‑D, ISO/IEC 11801, EN 50173 for structured cabling. Cat 5e: Supports up to ~100 MHz; suitable for 10/100/1000Base‑T (Gigabit) in many cases. Cat 6: Supports up to ~250 MHz; usable for Gigabit and some multi‑Gig (2.5G/5G) within constraints. Cat 6A: Supports up to ~500 MHz; designed for 10GBase‑T performance over full 100m link with UTP.
