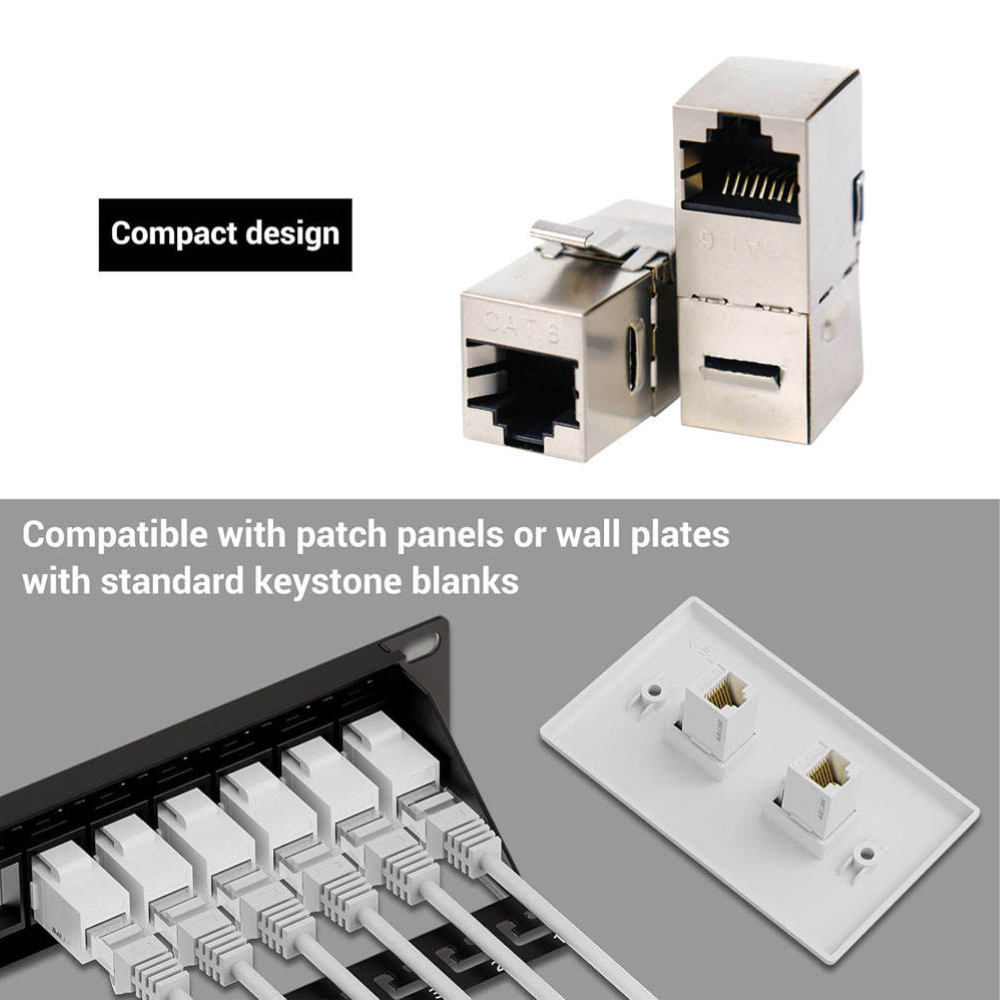

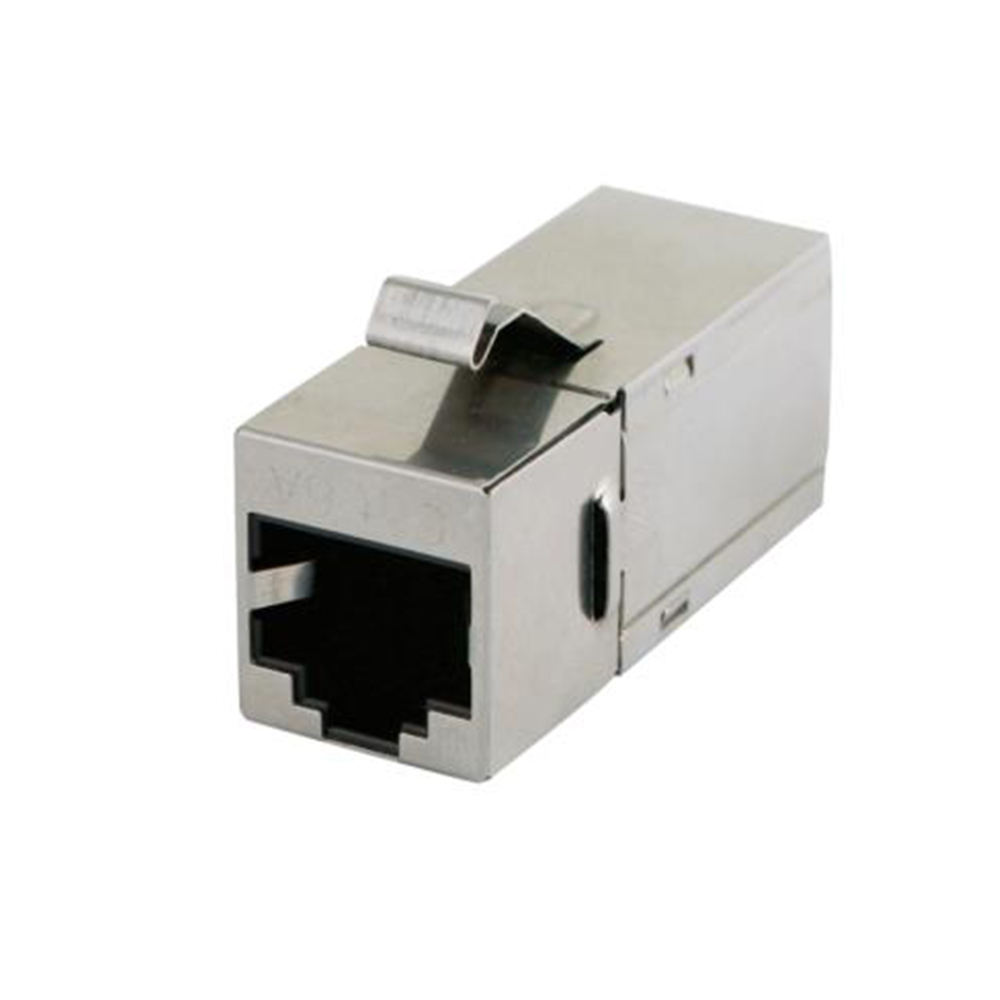

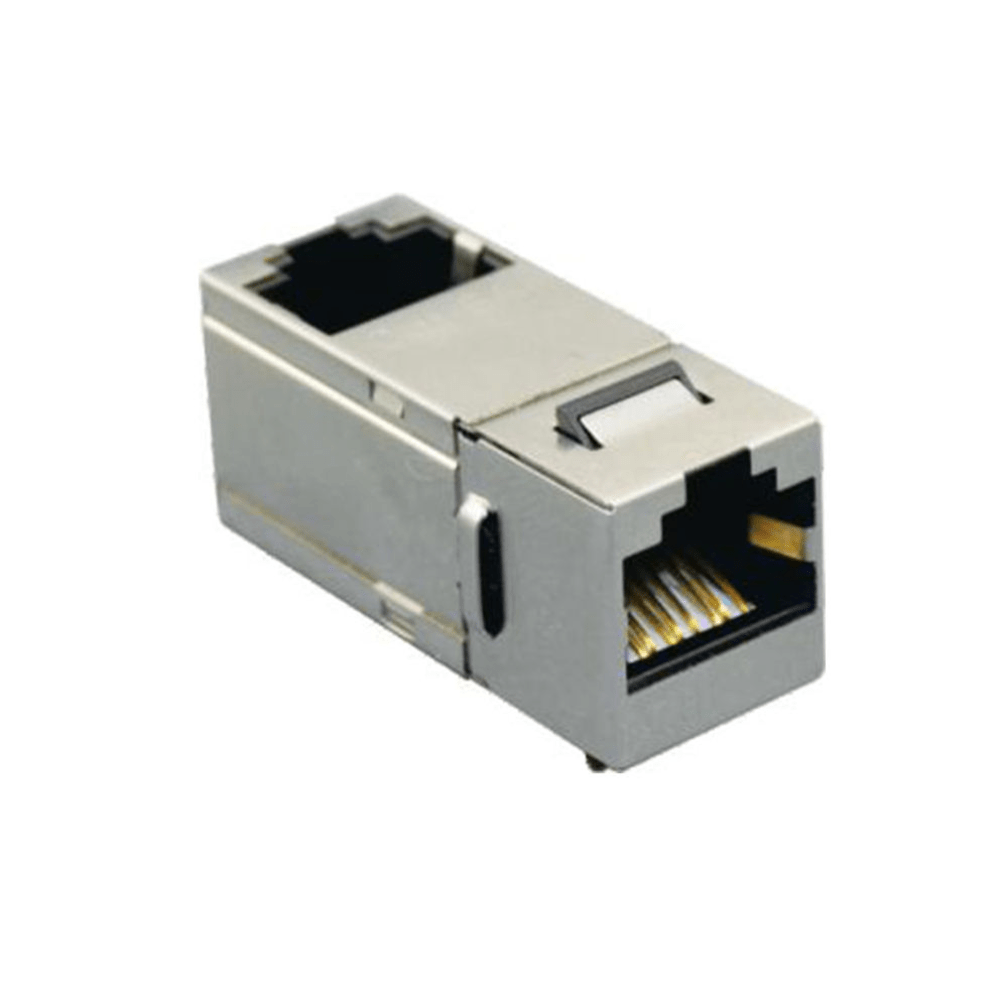

CAT6A 90 Degree Modular Jack RJ45 8P8C Telecom Parts Female to Female Keystone Jack RJ45 Inline Coupler

Specifications: Connector type: RJ45 (8-position, 8-contact; 8P8C) Orientation / Angle: 90 Deg Supported Categories: Cat6, Cat6A, (sometimes Cat5e) Wiring Standards: T568A and T568B wiring schemes Contact Material: Phosphor bronze, gold-plated contacts Shielded version: Metal (e.g. zinc alloy) Unshielded version: Polycarbonate (UL94 V-0) IDC (Insulation Displacement Contact) Material: Phosphor bronze & tinned Supported Cable / Wire Gauge: 22–26 AWG (solid or stranded) Current Rating: ~1.5 A maximum Voltage Rating: ~125 V AC (or up to ~230 V rms for some models) Insulation Resistance: ≥ 500 MΩ (at given test voltage) Dielectric / Withstanding Voltage: ~1000 V (AC or DC, 60 Hz, 1 min) Contact Resistance: Up to ~100 mΩ (depends on model) Termination / Mating Cycles: ≥ 750 insertions (for many) Retention Strength (Plug Retention): For some models, ~7.7 kg between jack and plug Operating Temperature: ~–10 °C to 60 °C (for many) Storage Temperature: ~–40 °C to 70 °C (in some designs) Compliance / Transmission Standard: E.g., ANSI/TIA-568-B.2-1 (Hyperline) for Category 6 PoE Compatibility: (Depends on model) — e.g., trueCABLE 90° coupler supports PoE / PoE / PoE (IEEE 802.3af/at/bt)
