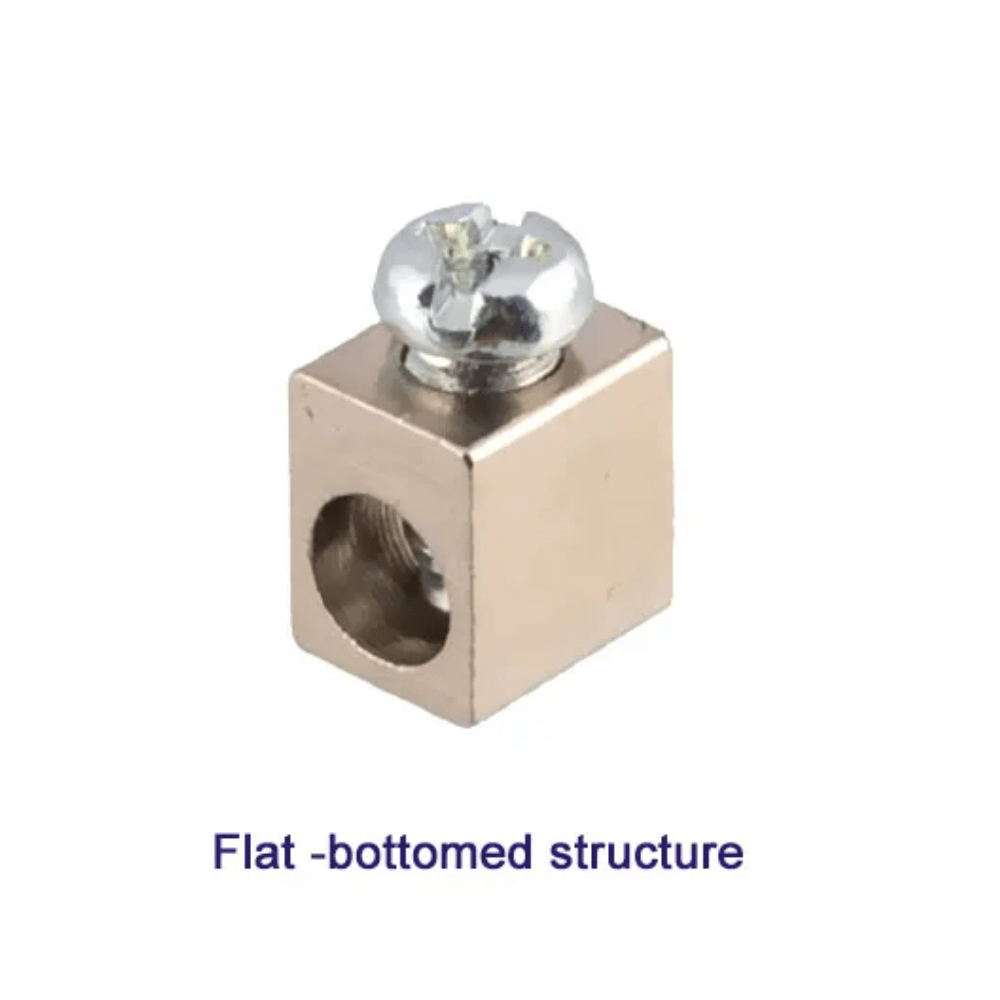

4.5×5.5x6mm 15A SMD PCB Copper Square Terminal Flat Bottom (Pack of 5)

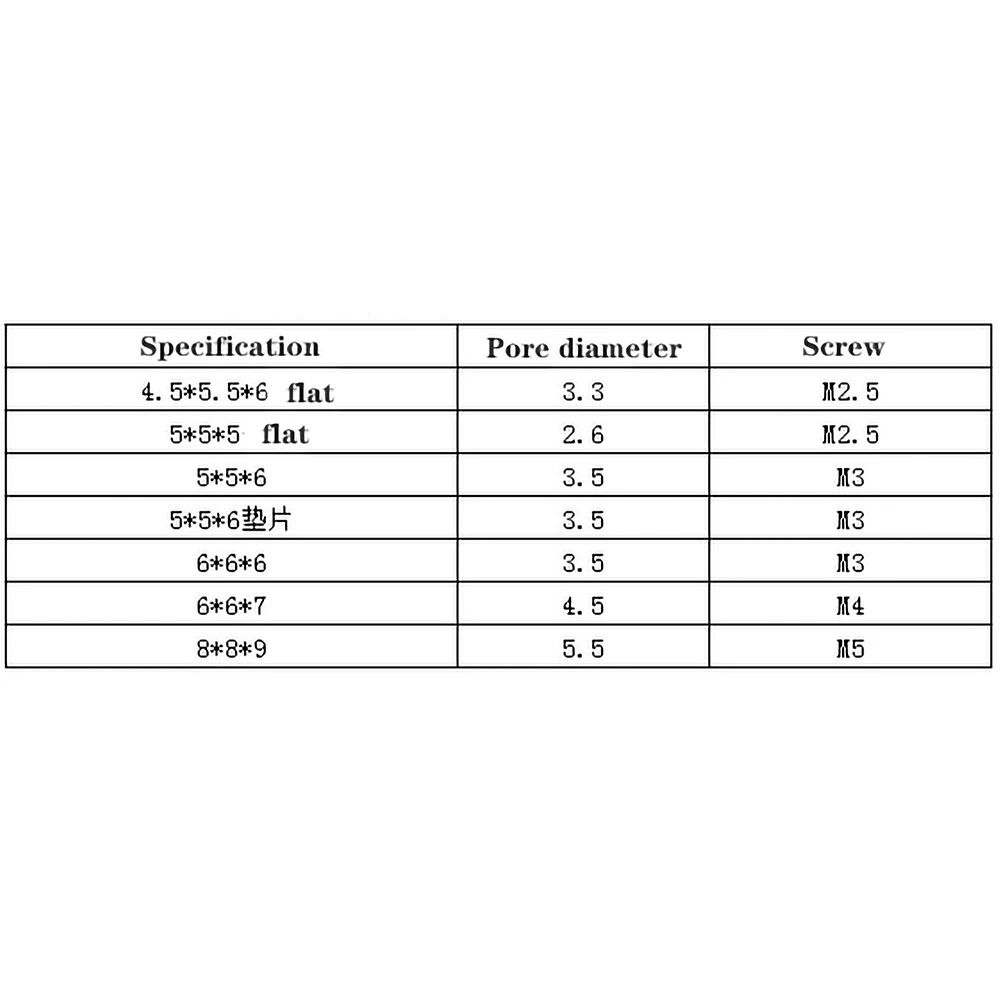

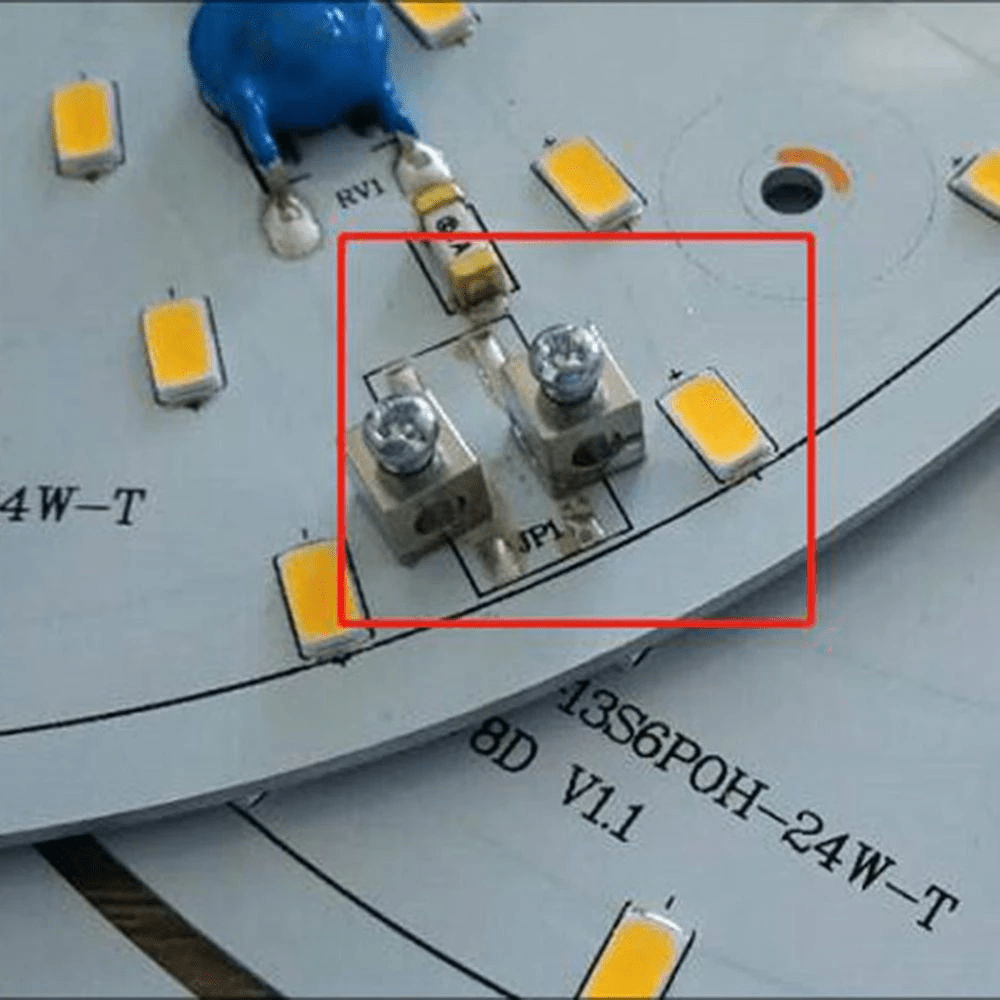

Specifications: Product Type: Copper Square PCB Wiring Terminal Mounting Style: Surface Mount (SMD) Terminal Shape: Square Flat Bottom Material: High-Conductivity Copper (C1100 or equivalent) Plating / Finish: Tin-Plated or Nickel-Plated for corrosion resistance Rated Current: Up to 10A (depends on size and PCB trace width) Rated Current: 250V AC/DC typical Insulation Resistance: ≥ 1000 MΩ at 500V DC Operating Temperature: -40°C to 105°C Solderability: Reflow solder compatible (lead-free or SnPb) PCB Compatibility: Aluminum Core PCBs, FR4 PCBs with metal pads
