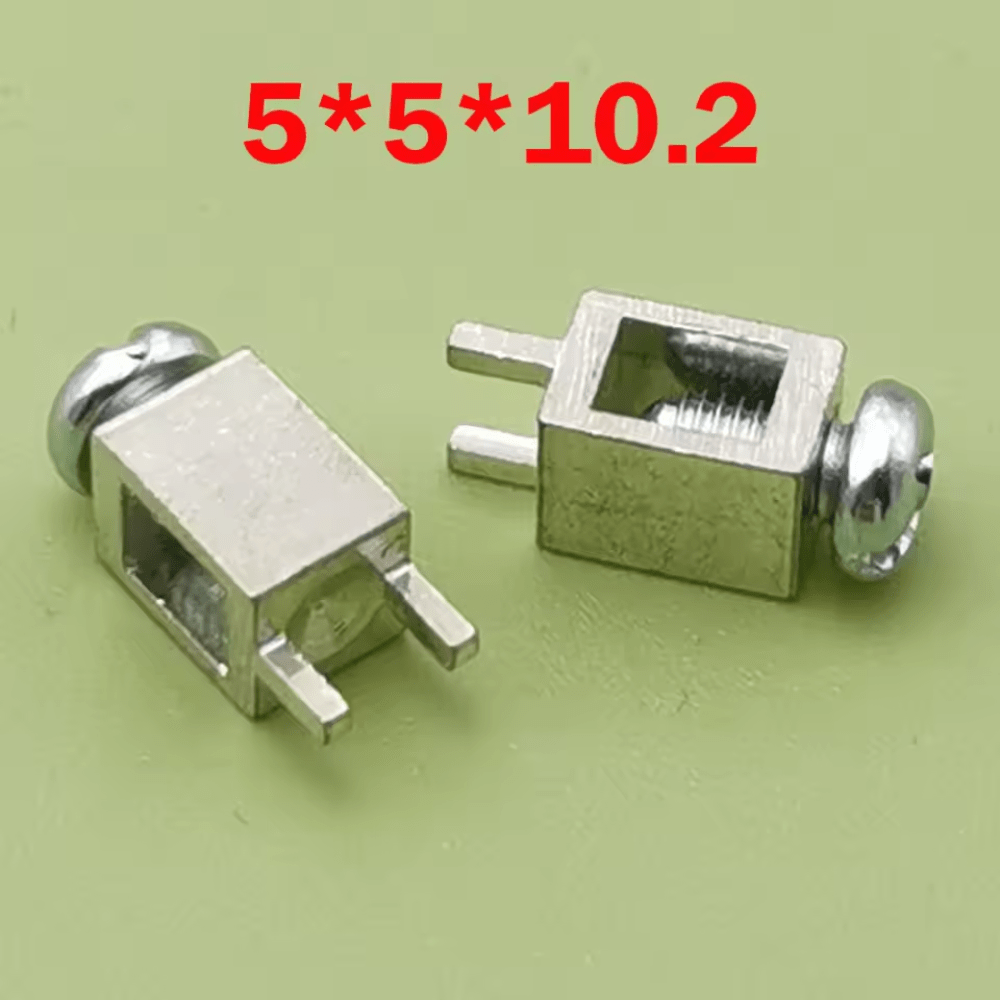

5x5x10.2mm PCB Terminal Block Double Feet Square Copper Terminal High Current 30A Solder Board Drive Power Wire Terminal Connector (Pack of 5)

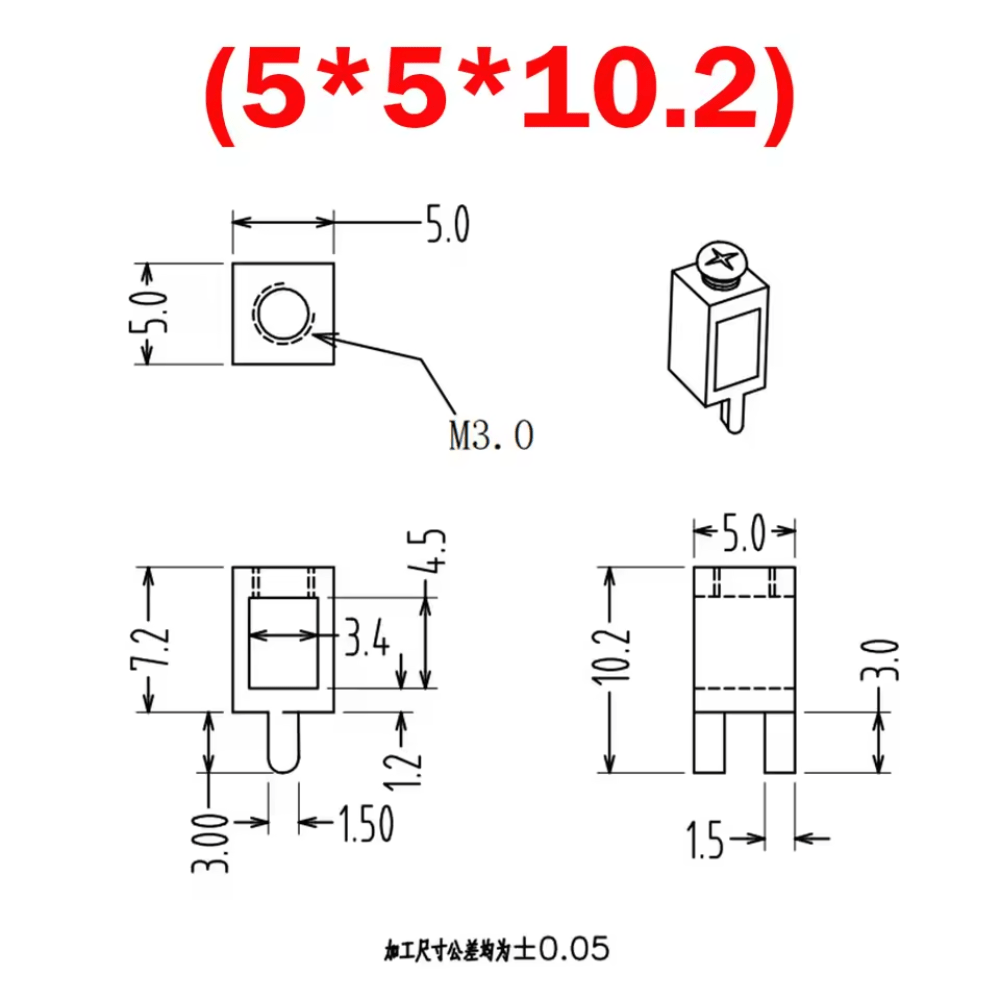

Specifications: Product Type: Copper Square PCB Wiring Terminal Mounting Style: Surface Mount (SMD) Material: High-Conductivity Copper (C1100 or equivalent) Plating / Finish: Tin-Plated or Nickel-Plated for corrosion resistance Rated Current: Up to 30A (depends on size and PCB trace width) Rated Current: 250V AC/DC typical Insulation Resistance: ≥ 1000 MΩ at 500V DC Operating Temperature: -40°C to 105°C Solderability: Reflow solder compatible (lead-free or SnPb) Size: 5mm x 5mm x 10.2mm PCB Compatibility: Aluminum Core PCBs, FR4 PCBs with metal pads
