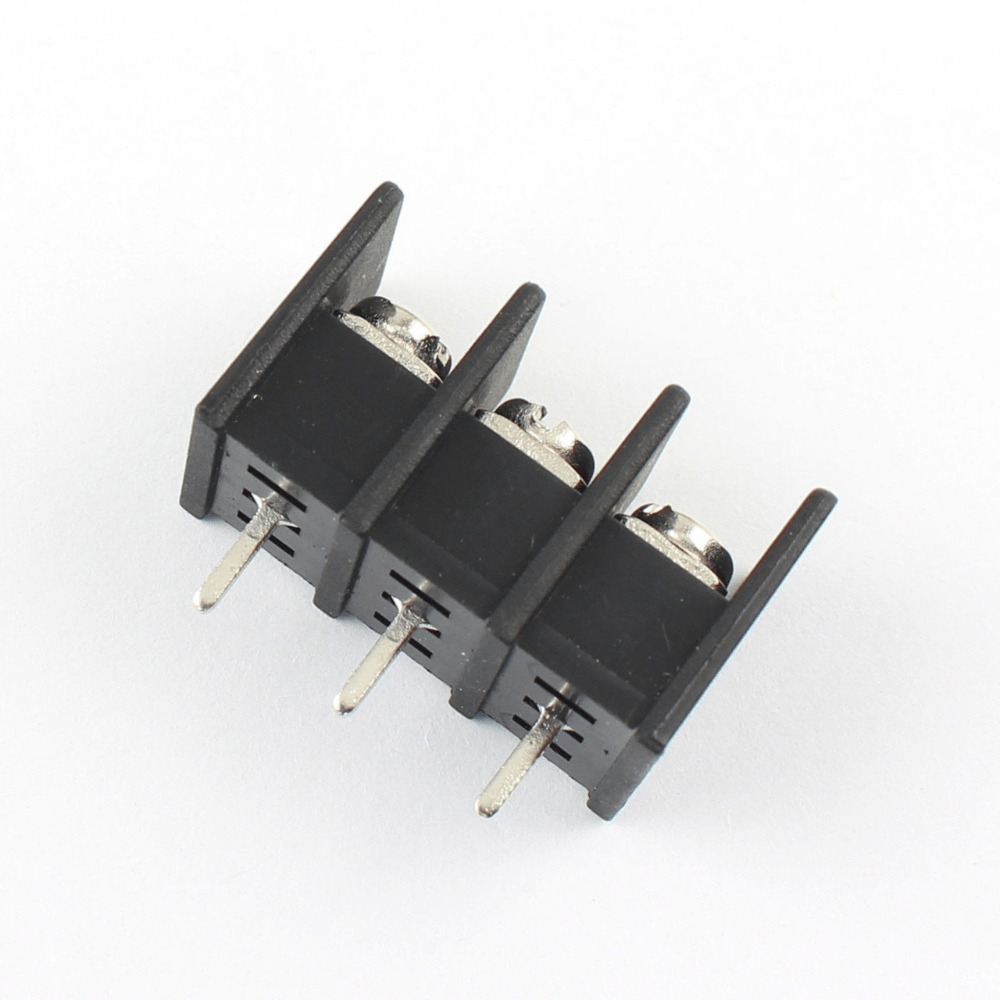

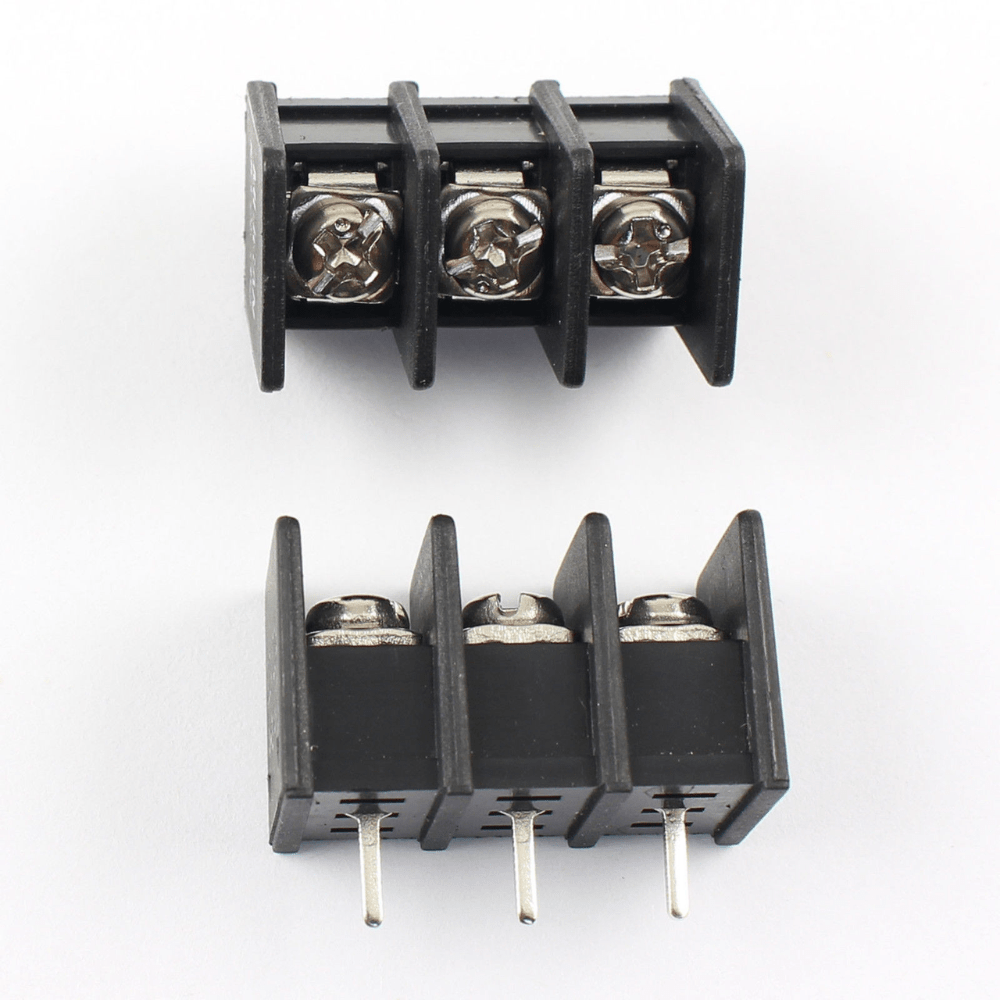

SY25C 3Pin 7.62mm 20A 300V Barrier Terminal Block Connector – 2 Pcs

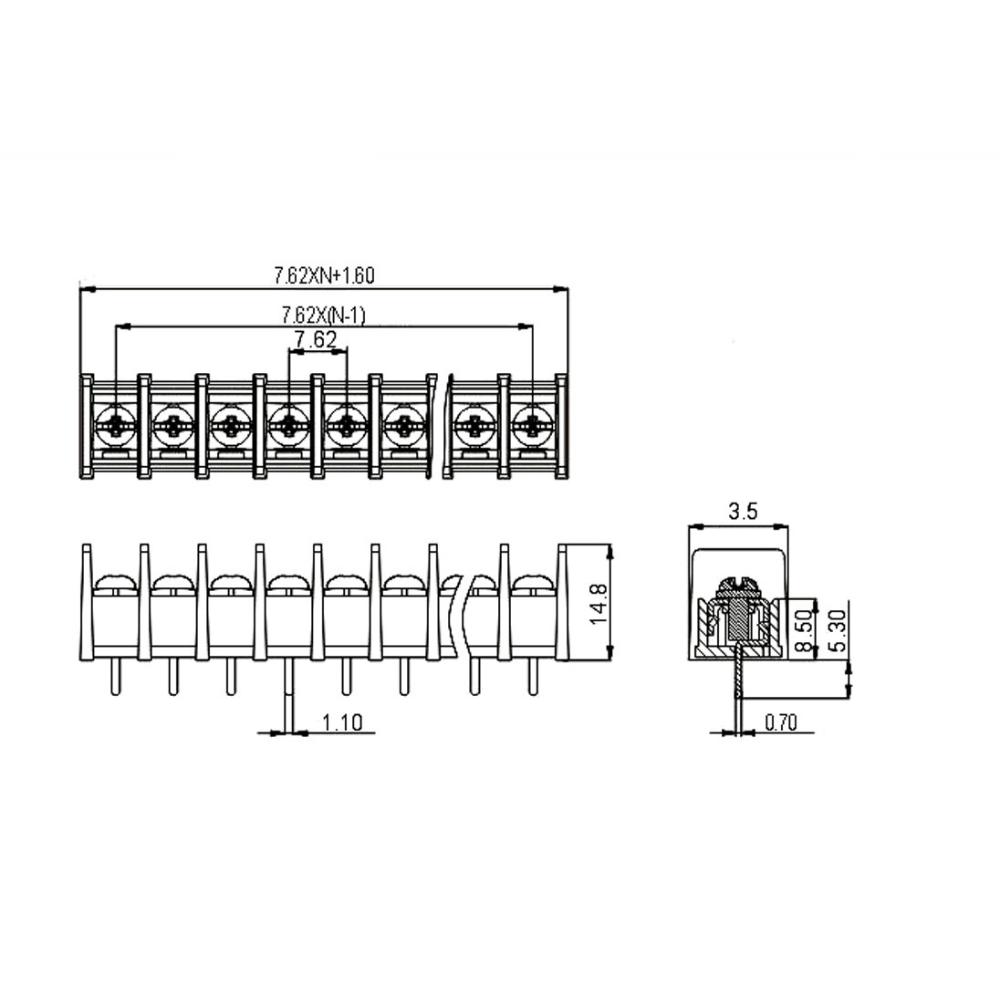

Specifications: Type/Design: Barrier Terminal Block (Features insulating walls between the three terminals) Color: Black Pitch (Pin Spacing): 7.62 mm This is the center-to-center distance between adjacent pins. Termination Method: Screw Connection Wires are secured by tightening a screw-down clamp. Mounting: PCB Mount (Designed for soldering directly onto a Printed Circuit Board) Current Rating: 20 Amperes (20A) Maximum Suitable for power applications requiring up to 20 Amps. Voltage Rating: 300 Volts (300V) Maximum (UL Rating) Wire Range (Gauge): Typically 22 – 14 AWG (American Wire Gauge) The recommended range of wire sizes for a secure and safe connection. Housing Material: Usually PA66 (Polyamide), known for its durability and meeting UL94 V-0 flame retardant standards. Contact Material: Typically Brass, Tin-plated for good conductivity and corrosion resistance.
