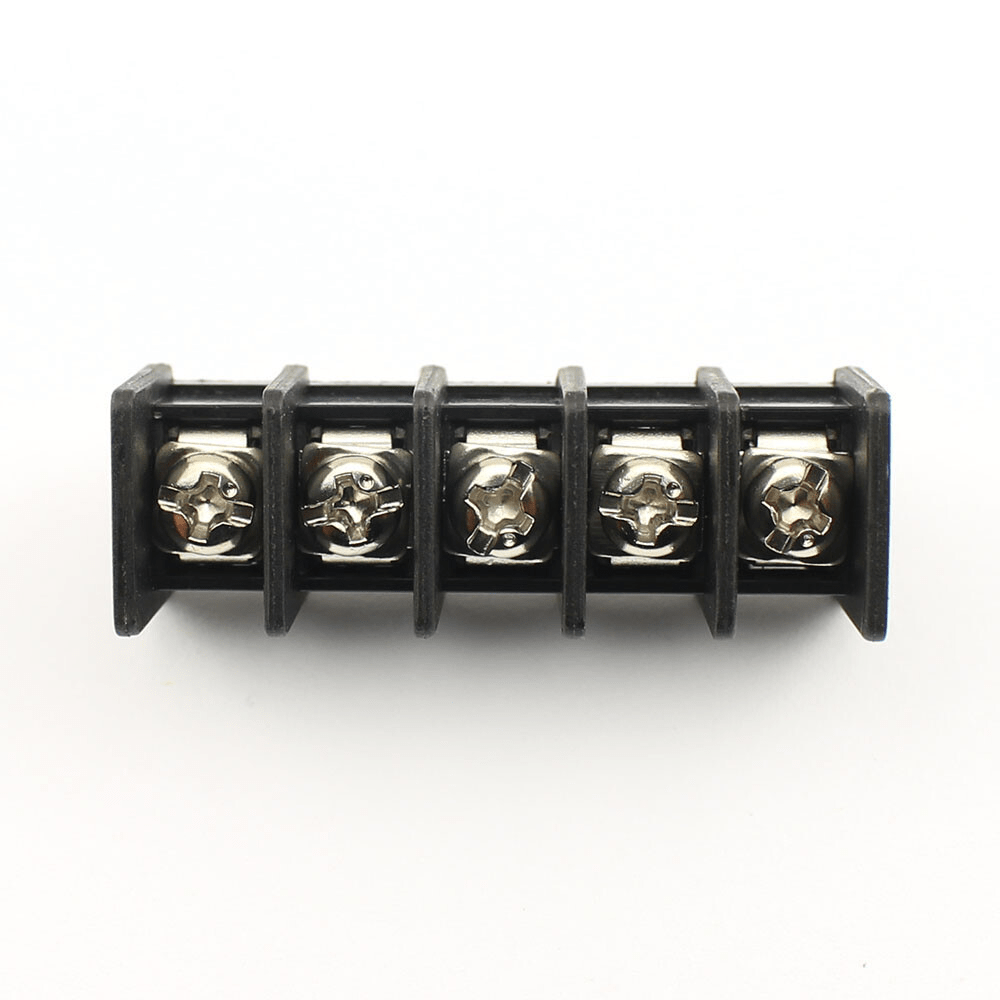

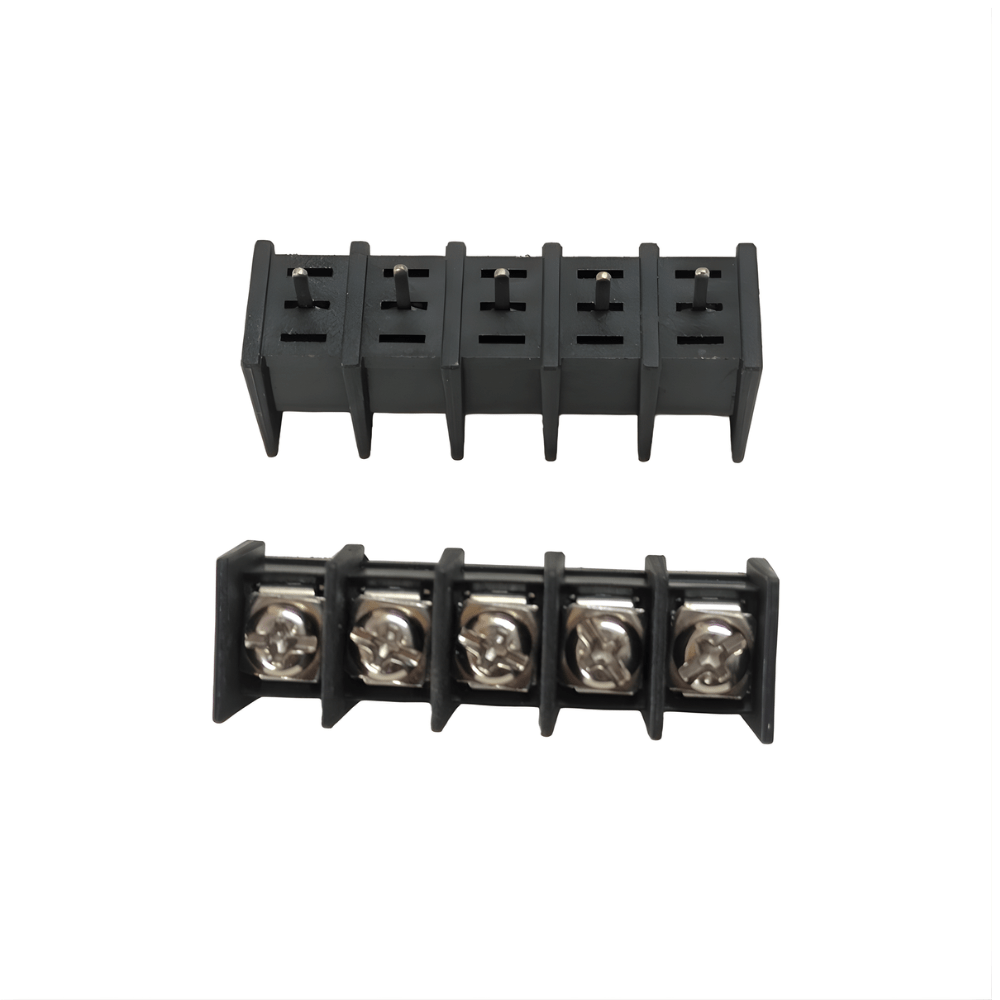

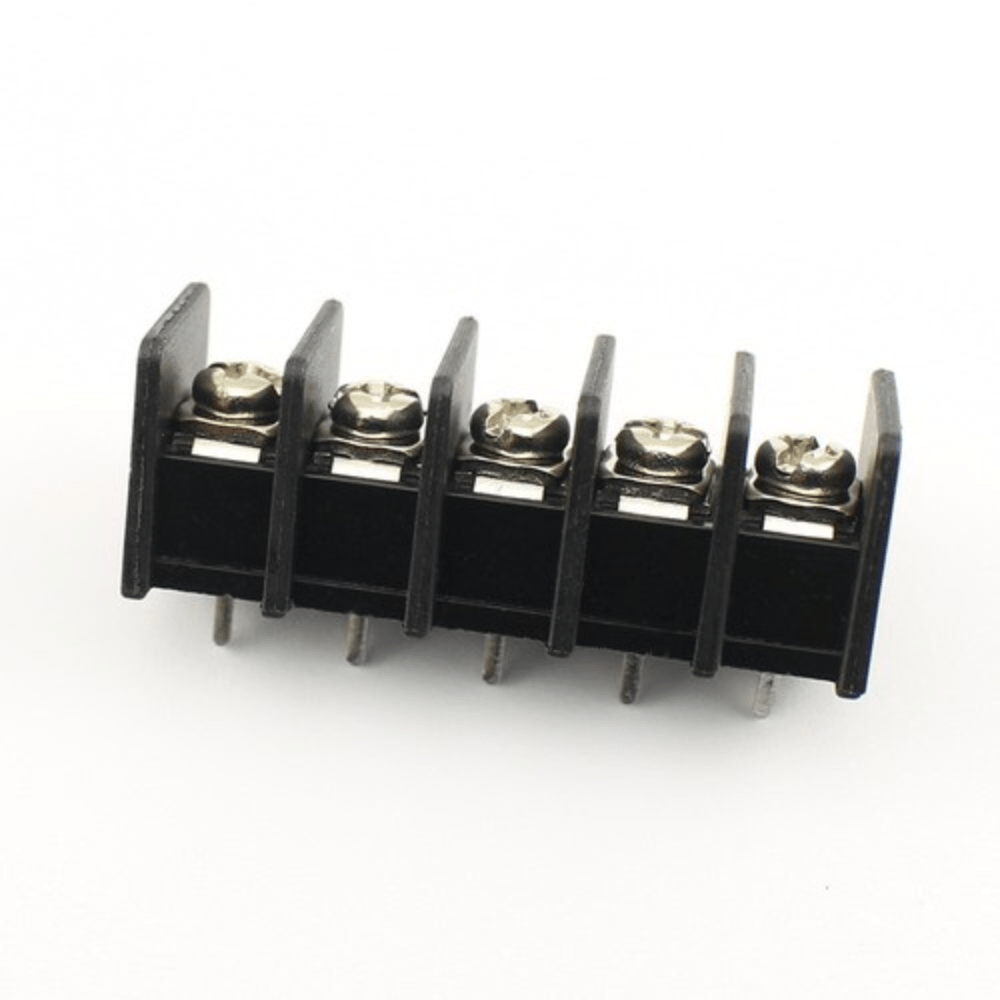

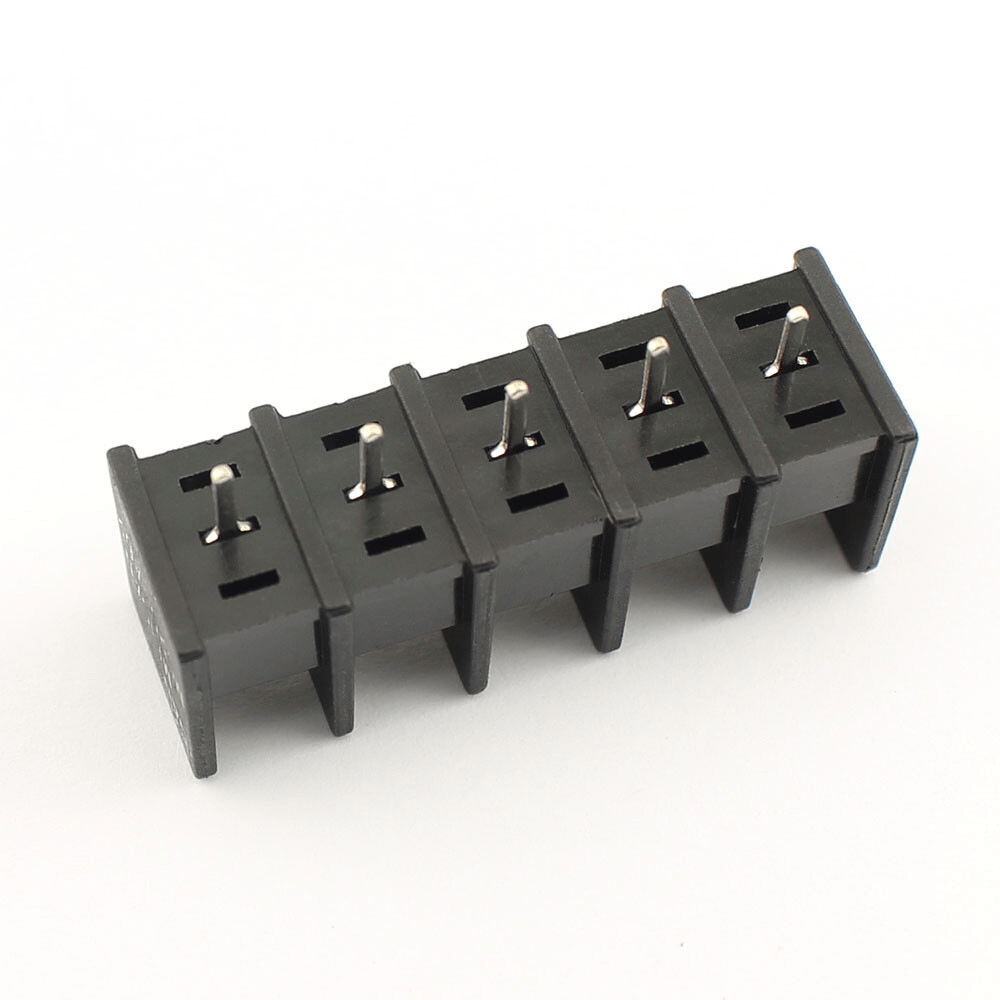

SY25C 5Pin 7.62mm 20A 300V Barrier Terminal Block Connector – 2 Pcs

Specifications: Type/Design: Barrier Terminal Block (Features insulated walls between connection points) Color: Black Pitch (Pin Spacing): 7.62 mm This is the center-to-center distance between adjacent pins. Termination Method: Screw Connection Screws are typically M3 size, often Steel, Nickel-plated. Mounting: PCB Mount (Designed for soldering directly to a Printed Circuit Board) Current Rating: 20 Amperes (20A) Maximum Voltage Rating: 300 Volts (300V) Maximum (UL Rating) Wire Range (Gauge): 22 – 14 AWG (American Wire Gauge) Indicates the range of wire sizes that can be securely terminated. Torque: Approximately 0.5Nm (4.4 in-lb) The recommended tightening force for the screws. Temperature Range: Typically −40∘C to 105∘C The safe operating temperature range. Housing Material: Typically PA66 (Polyamide), UL94 V-0 flame retardant rating Terminal/Contact Material: Brass, Tin-plated
