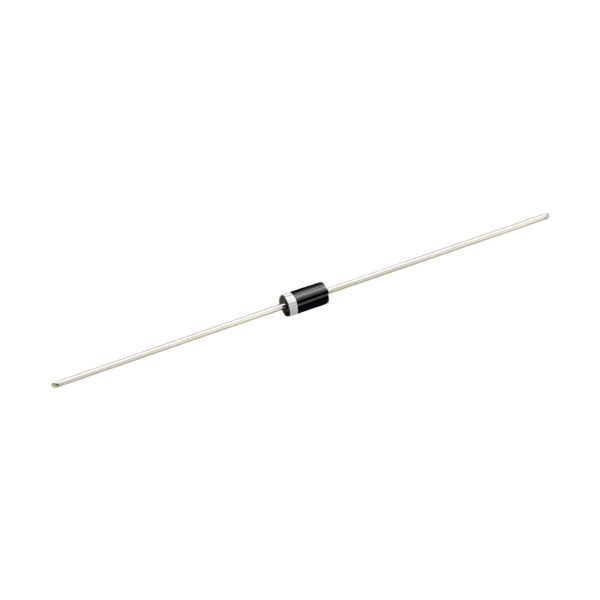

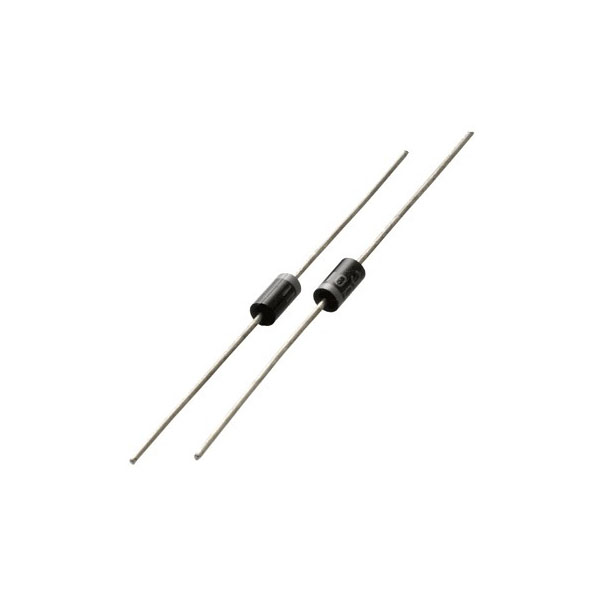

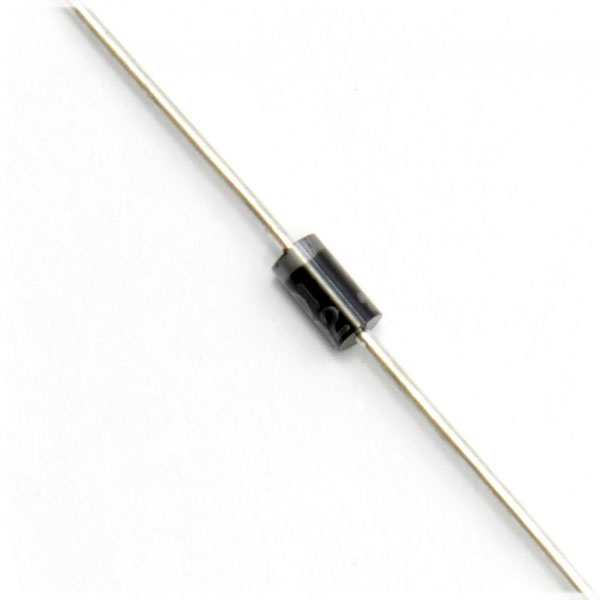

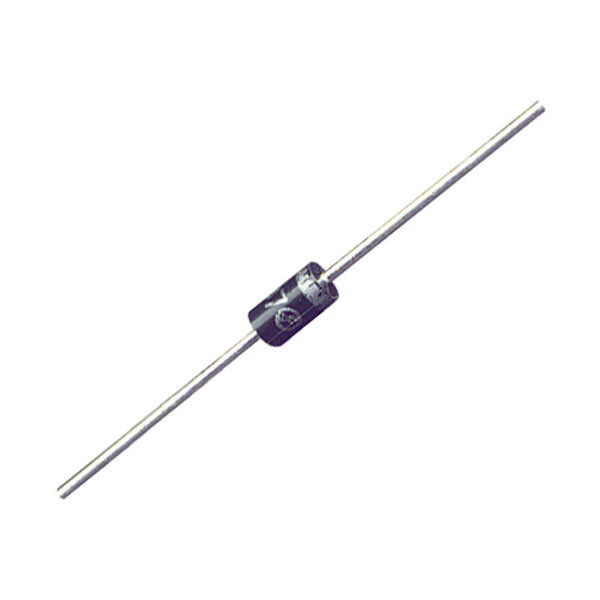

Specifications: Diode Type: Rectifier Diode Maximum Continuous Forward Current: 1A Peak Repetitive Reverse Voltage: 1000V Maximum Forward Voltage Drop: 1.1V (at 1A) Reverse Recovery Time: 30ns (typical) Maximum Operating Junction Temperature: 150°C Package Type: DO-41 (DO-204AL) Mounting Style: Through-Hole Reverse Leakage Current: 5μA (at 1000V) Maximum Surge Current: 30A (8.3ms half sine wave) Reverse Avalanche Energy: 50mJ
