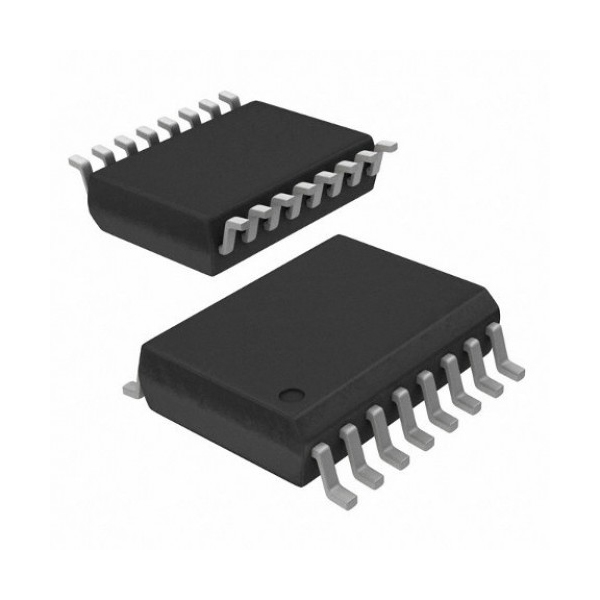

PCF8574T SMD 8 bit I/O expansion for I2C – SOIC16 (Chinese)

Specifications: I2C-bus to parallel port expander 100 kHz I2C-bus interface (Standard-mode I2C-bus) Operating supply voltage 2.5 V to 6 V with non-overvoltage tolerant I/O held to VDD with 100 A current source 8-bit remote I/O pins that default to inputs at power-up Latched outputs directly drive LEDs Total package sink capability of 80 mA Active LOW open-drain interrupt output Eight programmable slave addresses using three address pins Low standby current (2.5 A typical) 40 C to 85 C operation ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
