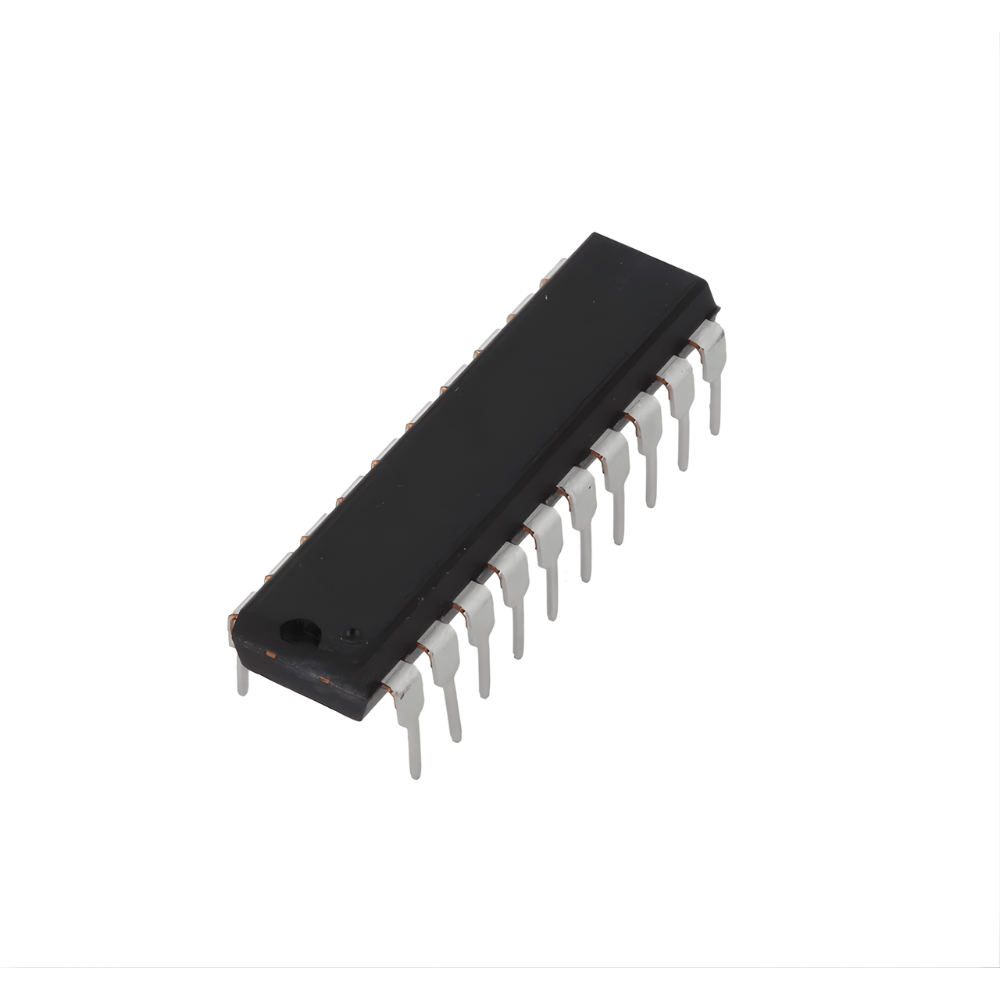

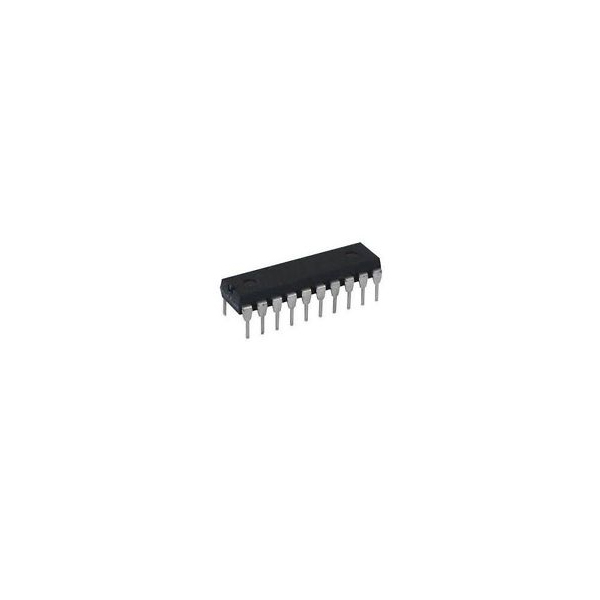

74LS244 IC – Octal Buffer/Line Driver with Tri-State Output IC (74244 IC)

Features:- Supply Voltage: 7V 3-STATE outputs drive bus lines directly  PNP inputs reduce DC loading on bus lines  Hysteresis at data inputs improves noise margins Typical IOL (sink current) 24 mA  Typical IOH (source current) −15 mA  Typical propagation delay times Inverting 10.5 ns Noninverting 12 ns  Typical enable/disable time 18 ns  Typical power dissipation (enabled) Inverting 130 mW Noninverting 135 mW
