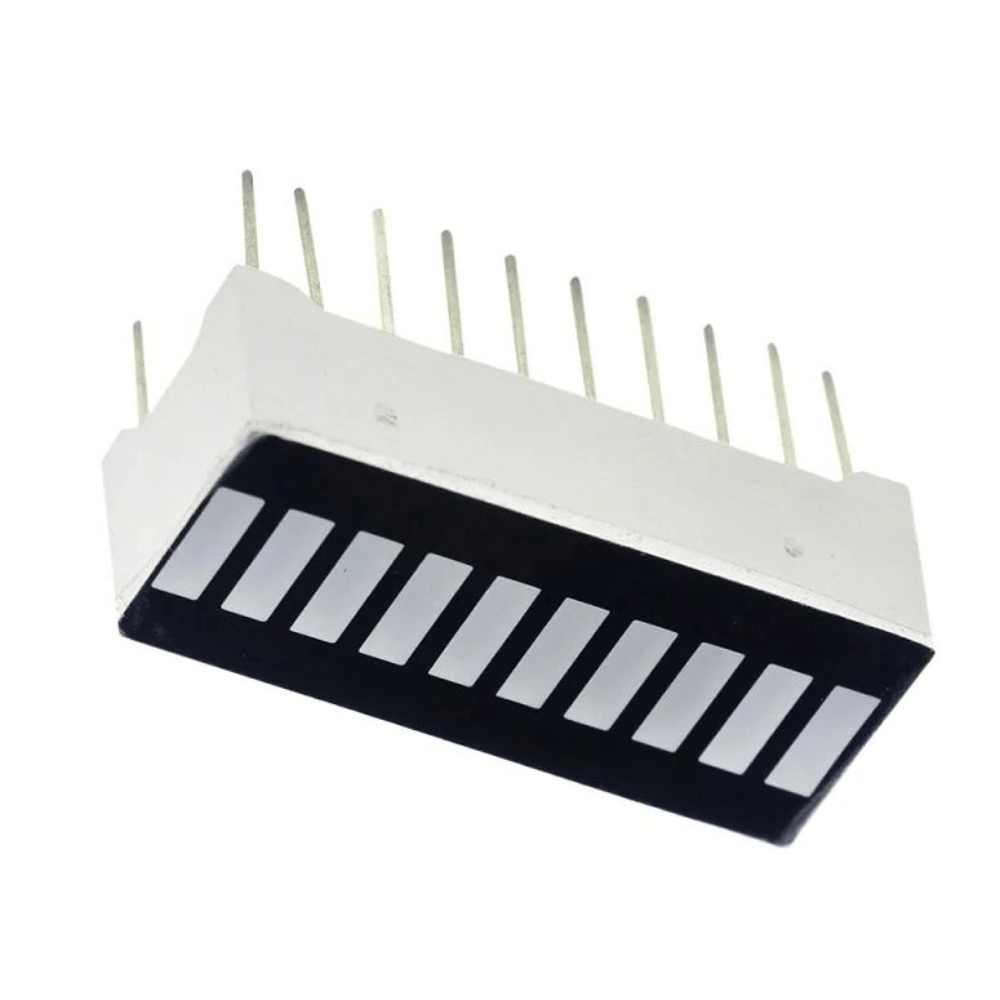

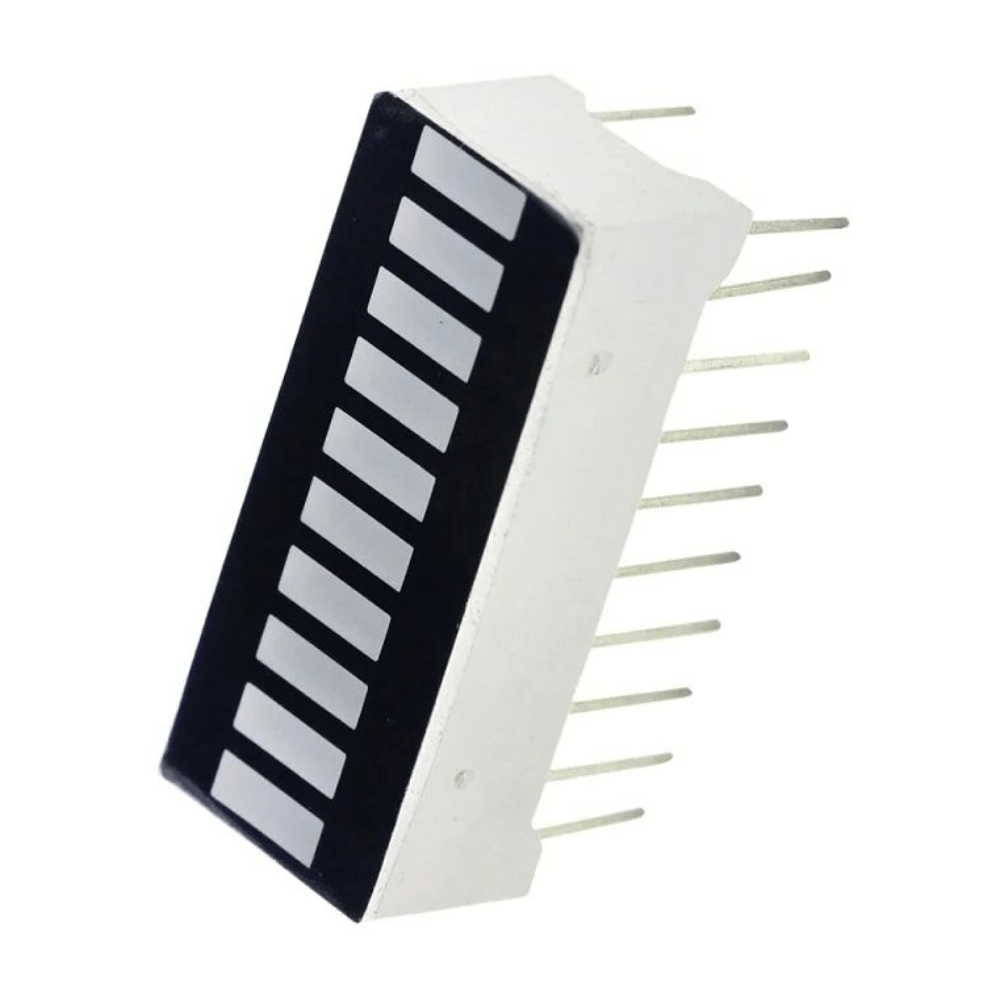

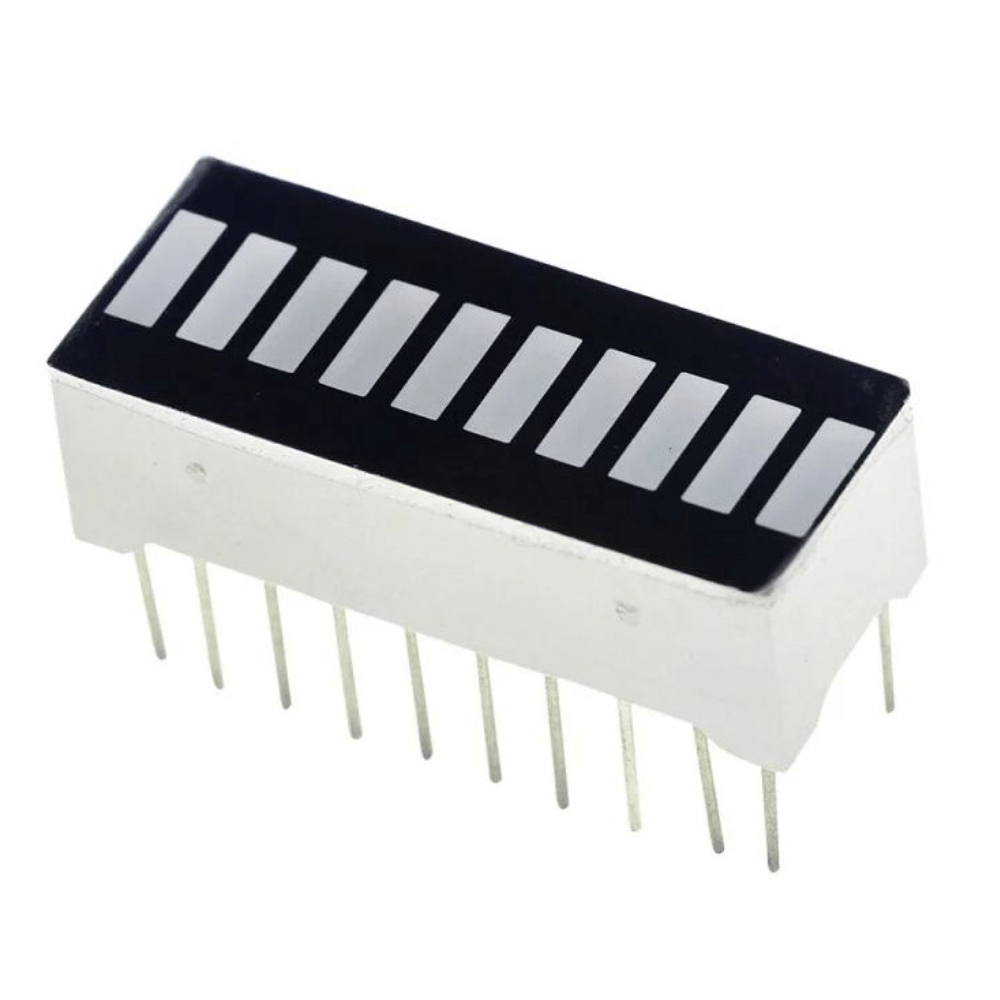

10 Segments 4 Colors Stripe Digital Tubes 2R3Y4G1B Anode

Specifications: Model No: FB10BGYS Product Type: Multicolor Segment Digital Tube Segments: 10 Segments Color Configuration: 2 Red, 3 Yellow, 4 Green, 1 Blue Display Type: Bar / Stripe Indicator Configuration: Common Anode Operating Voltage: Typically 2V–3.3V per segment (depends on color) Forward Current: ~10–20mA per segment Viewing Angle: Wide Mounting Type: Through Hole Applications: Level indicators, audio VU meter, battery indicator, control panels, DIY electronics Features: High brightness, low power consumption, long life
