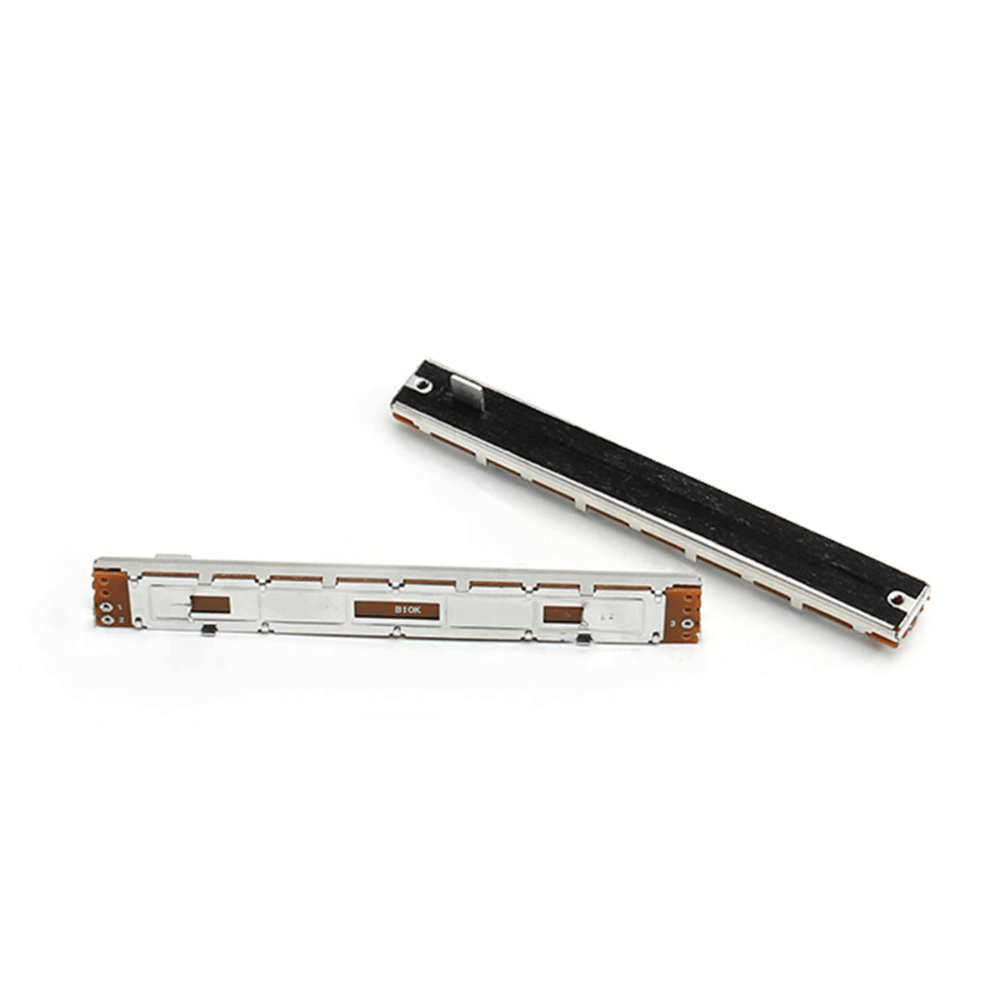

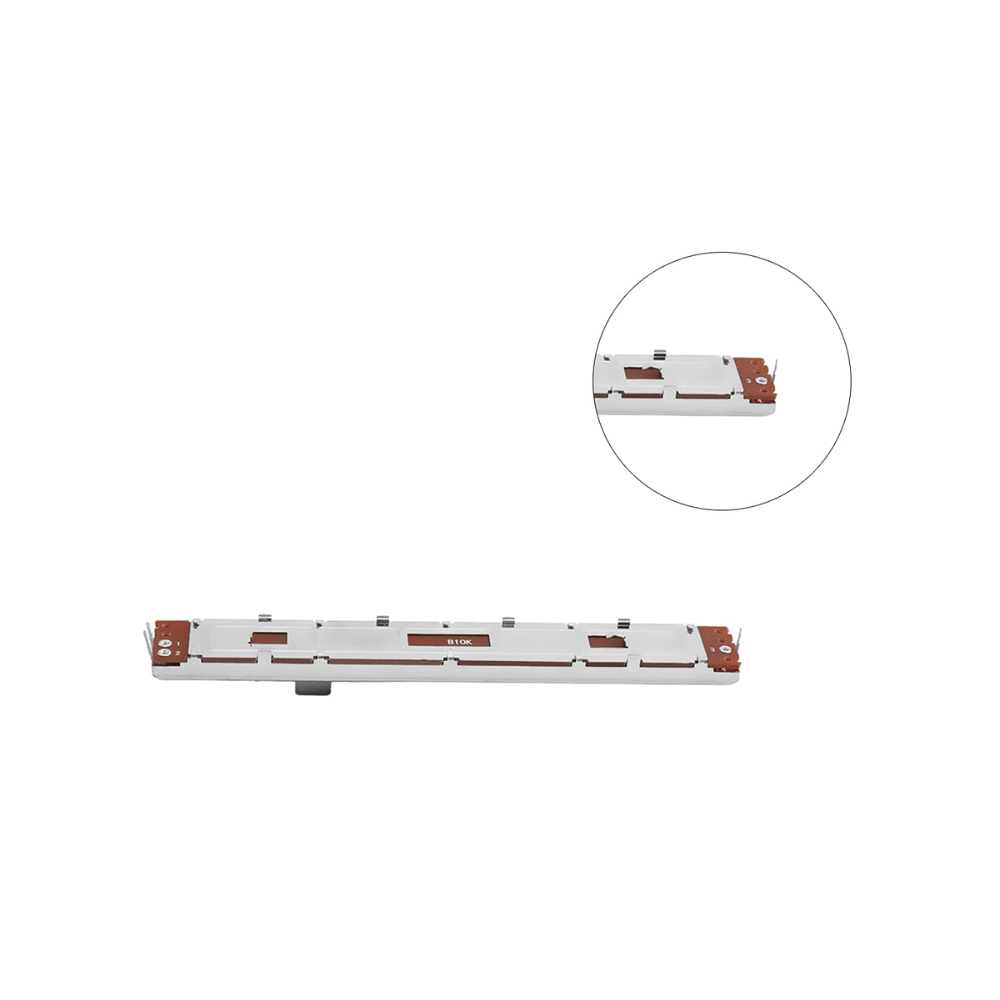

B10KX2 10K Two Channel 100mm 6 Pin Tuning Square Shaft 8mm Straight Slide Potentiometer

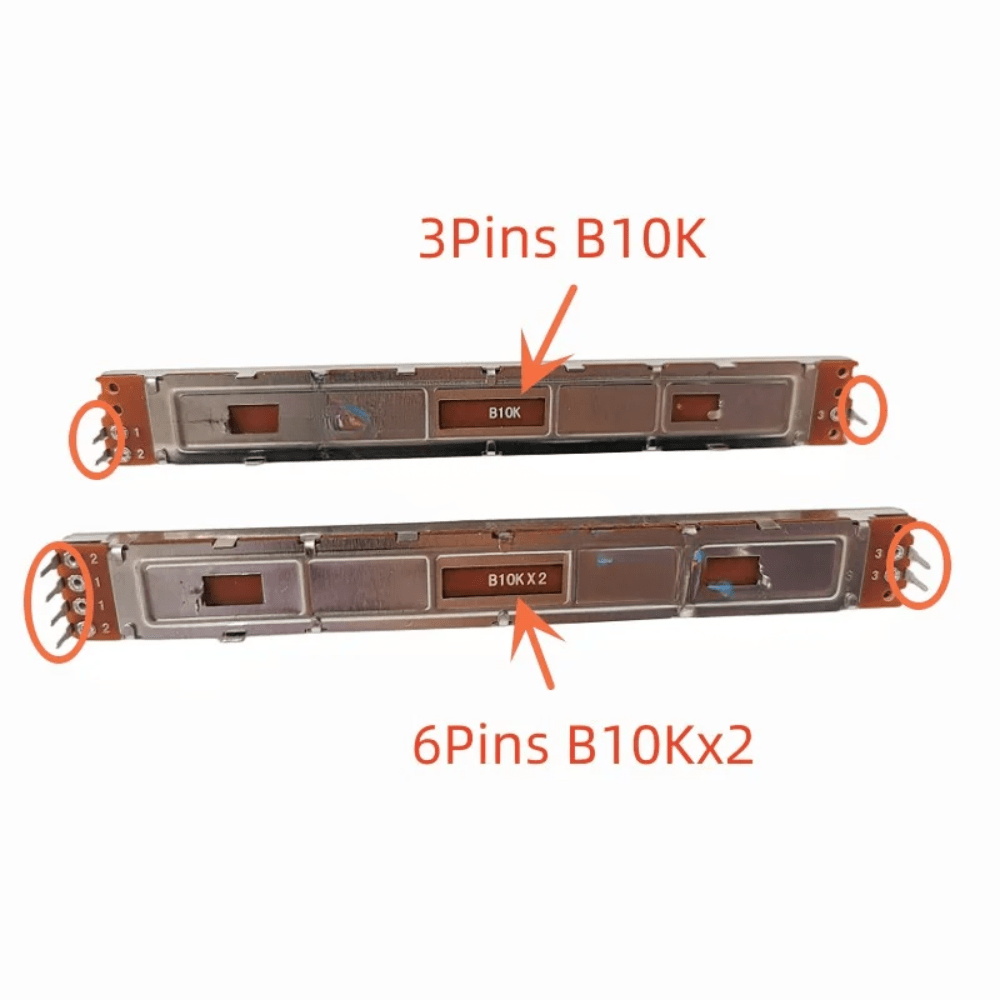

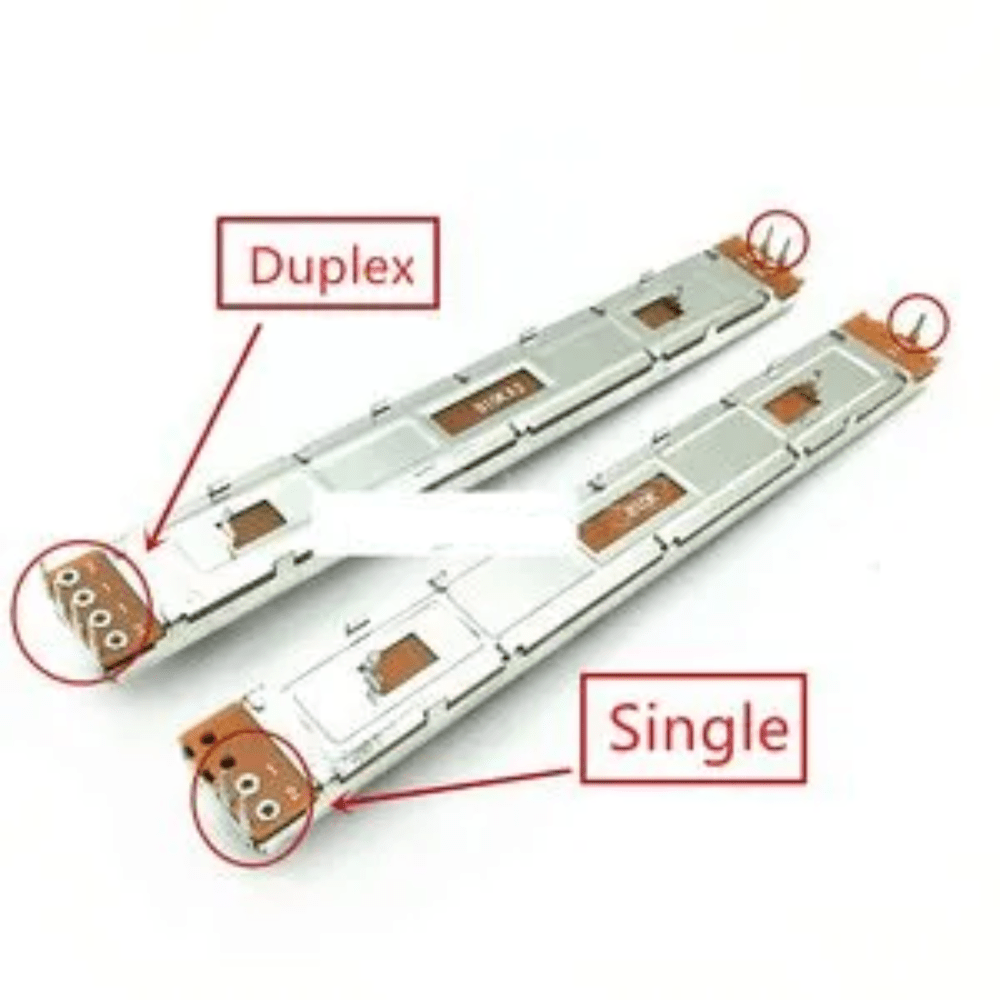

Specifications: Type: Dual-gang potentiometer (stereo / double channel) Resistance Value: 10KΩ × 2 (each channel 10K ohm) Taper Type: Linear (B-type characteristic) Number of Pins: Typically 6 pins (3 per channel) Configuration: Dual independent resistive tracks in a single body Mounting Type: PCB mount / through-hole (common) Control Mechanism: Rotary or slide (fader type variants available) Travel / Rotation: Rotary: ~300° (typical) Slide: Depends on model (e.g., ~45–100 mm travel) Power Rating: ~0.2W (typical for carbon potentiometers) Rated Voltage: Around 200V AC (varies by model) Material: Carbon track element (common type) Tracking Error: Approx. ±2 to ±3 dB between channels Shaft Type: D-type / T-type / slider (depends on variant) Applications: Audio mixers, amplifiers, volume control, signal adjustment
