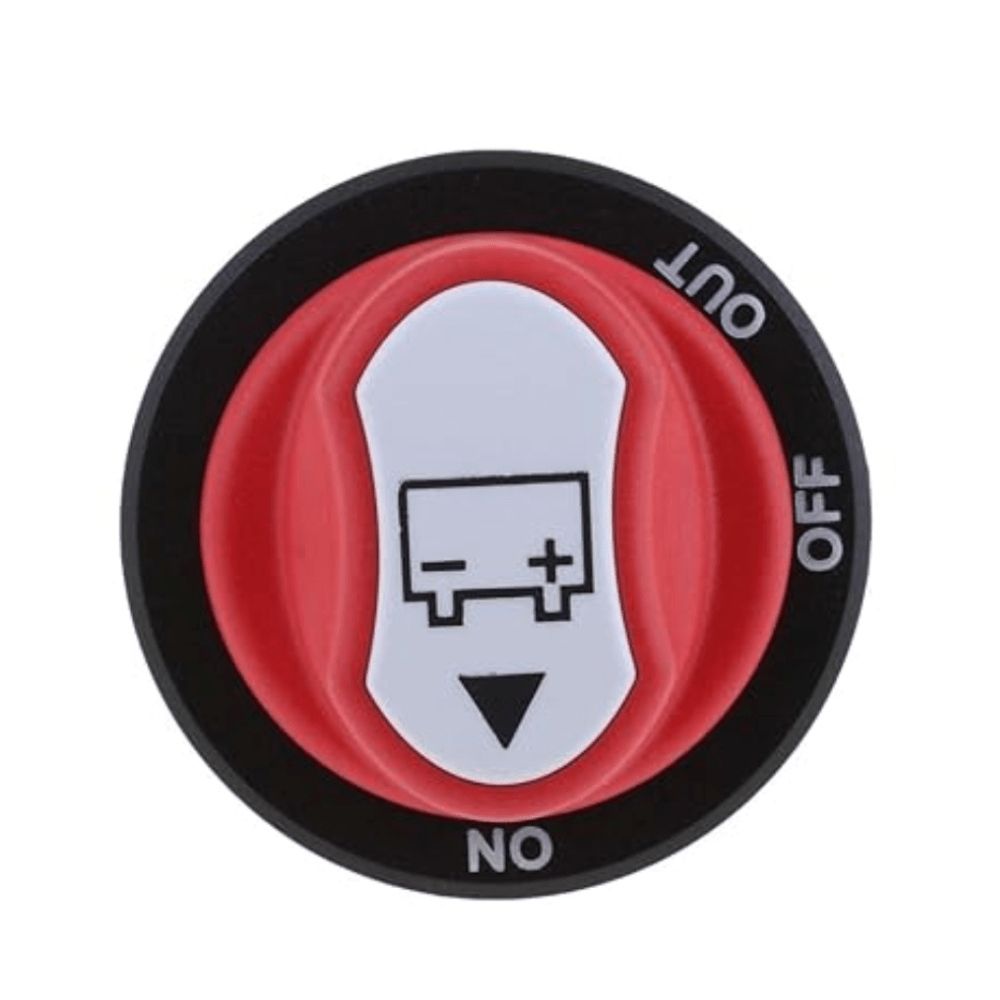

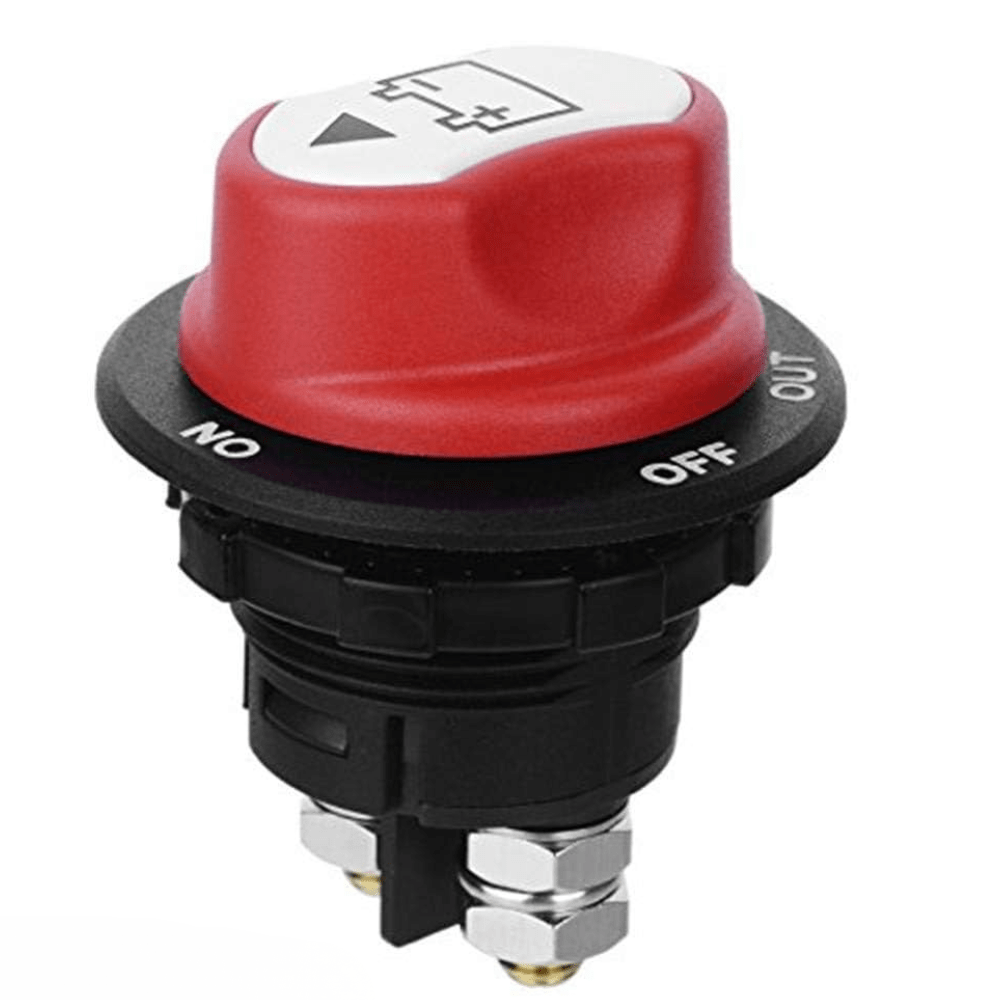

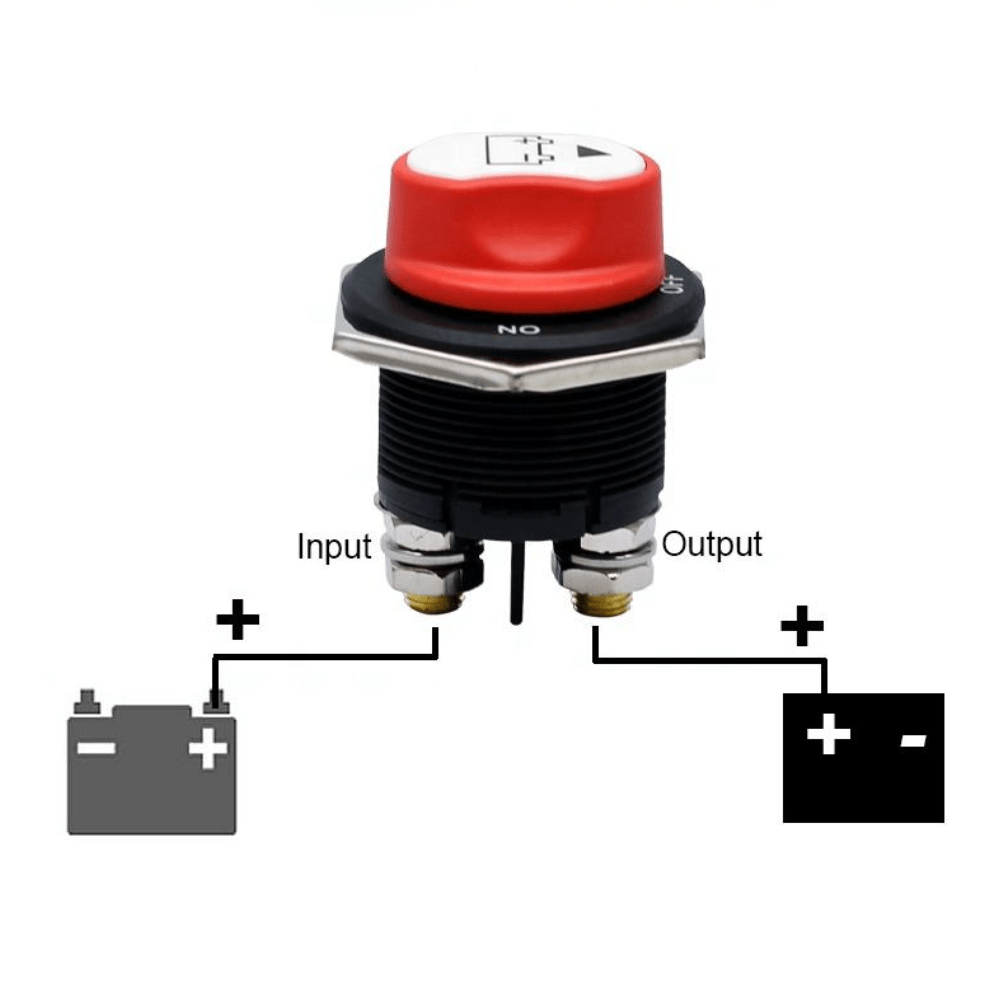

DC 32V 100A Car Rally Battery Switch Disconnector Power Isolator Cut Off Switch Kit for Truck Car Motorcycle Boat

specifications Operating Voltage: 12 V DC (compatible with 12 V–32 V systems) Rated Current (Continuous): 100 A Maximum Voltage: Up to 32 V DC (varies by model) Intermittent Current Capacity: 150 A (short duration) Cranking / Surge Current Rating: 350 A for 5 seconds Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 100 MΩ at DC 500 V Dielectric Strength: AC 1000 V / 1 min (between open contacts) Operating Temperature Range: −30 °C to 60 °C Housing Material: High-strength ABS plastic (heat- and impact-resistant) Internal Contact Material: Copper or silver-plated copper alloy Terminal Studs: Brass or copper, typically M8 (8 mm diameter) Switch Type: Manual rotary or removable key-type isolator Mounting Style: Surface or panel mount (rear terminal connection) Dimensions (Approximate): 68 mm × 68 mm × 75 mm (varies slightly by brand) Color: Red handle with black base (standard rally color scheme) Protection Rating: IP55 – IP65 (dust- and splash-resistant, depending on model) Weight: 150 – 250 g (approximate) Included Accessories: Mounting screws, nuts, washers, terminal caps (varies by kit) Applications: Cars, trucks, motorcycles, boats, RVs, racing and off-road vehicles
