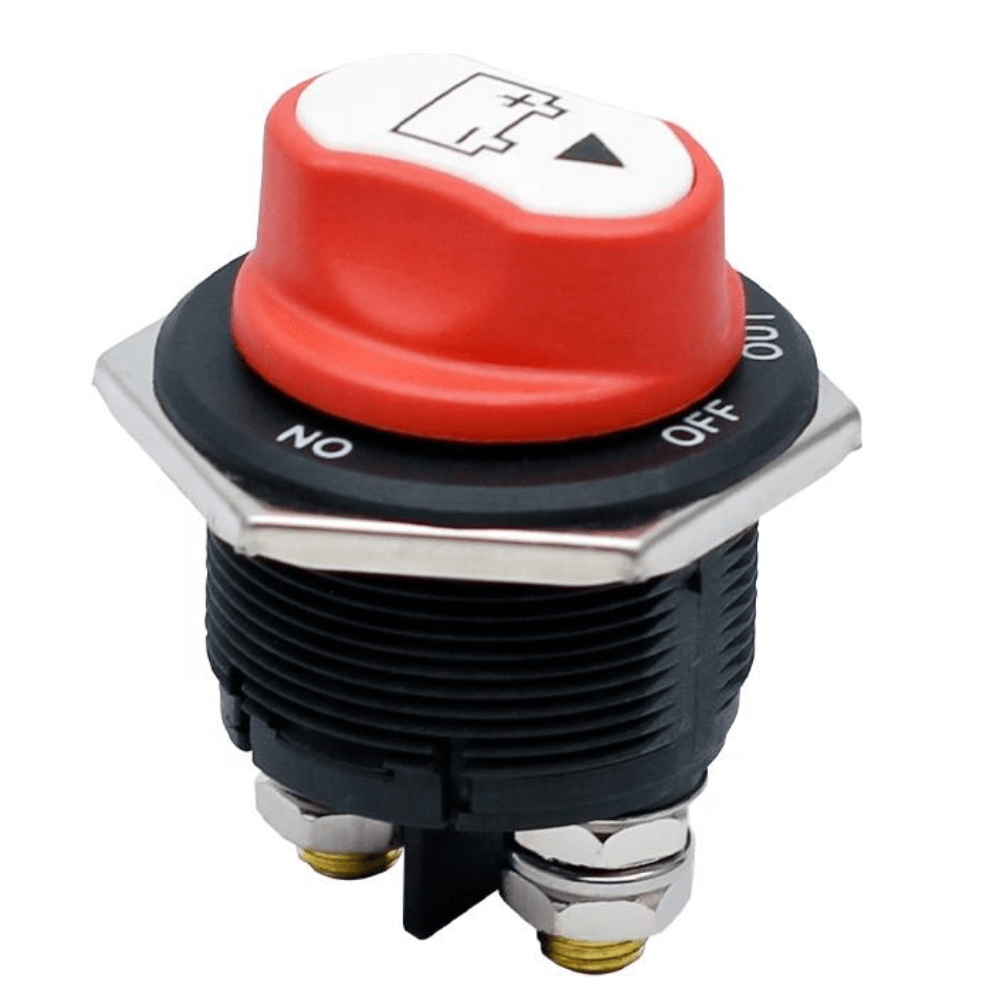

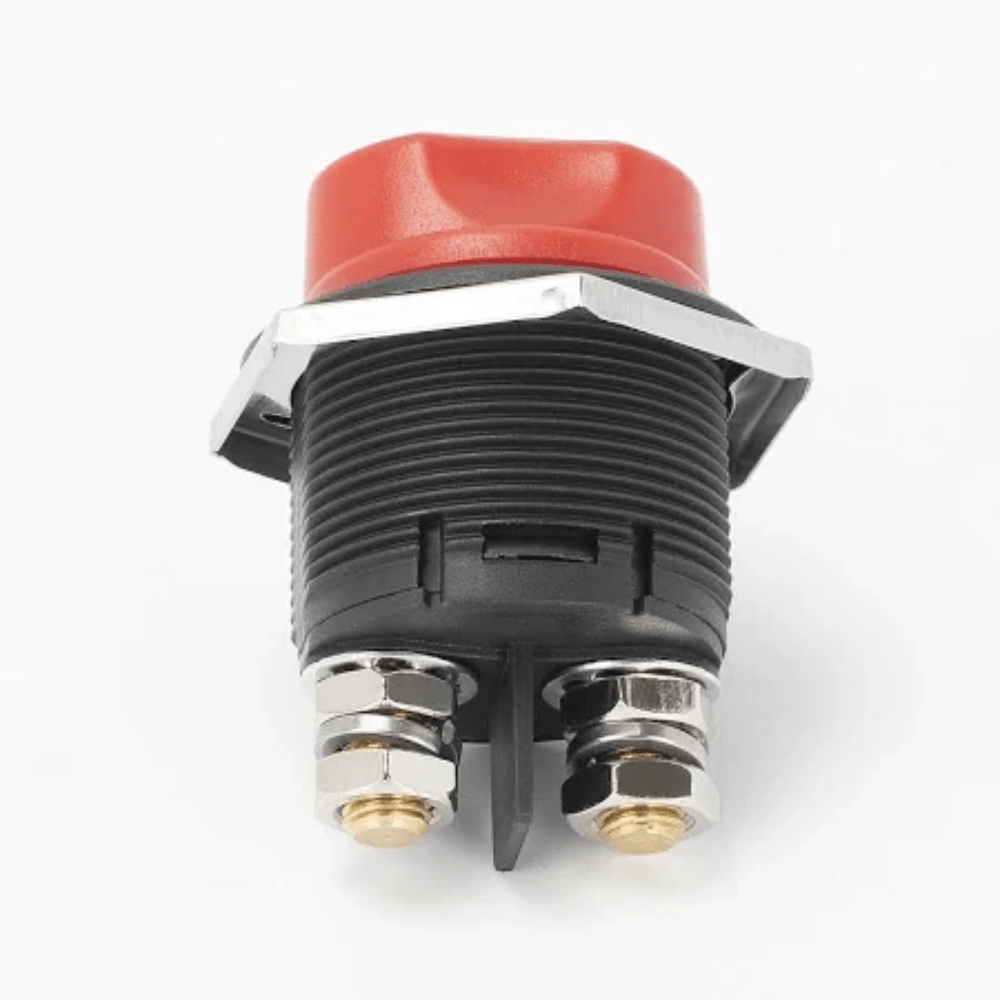

DC 32V 200A Car Rally Battery Switch Disconnector Power Isolator Cut Off Switch Kit for Truck Car Motorcycle Boat

specifications Operating Voltage: 12 V DC (supports 12 V–24 V systems) Rated Current (Continuous): 200 A Maximum Voltage: 32 V DC Intermittent Current Capacity: 300 A (short duration) Starting Surge / Cranking Rating: Up to 1000 A for 5 seconds Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 100 MΩ at DC 500 V Dielectric Strength: AC 1000 V / 1 min (between open contacts) Operating Temperature Range: −30 °C to 60 °C Housing Material: High-strength flame-retardant ABS plastic Internal Contact Material: Copper or silver-plated copper alloy Terminal Studs: Brass or copper (typically M8 / M10 size) Switch Type: Manual rotary or removable key-type disconnect switch Mounting Style: Surface or panel mount (rear terminal connection) Dimensions (Approx.): 70 mm × 70 mm × 80 mm (varies by brand) Color: Red rotary handle with black base (standard rally design) Protection Rating: IP55 – IP65 (dust and splash resistant) Weight: Approx. 250 – 350 g Accessories Included: Mounting screws, nuts, washers, and protective terminal covers (depending on kit) Applications: Cars, trucks, RVs, motorcycles, boats, off-road and racing vehicles
