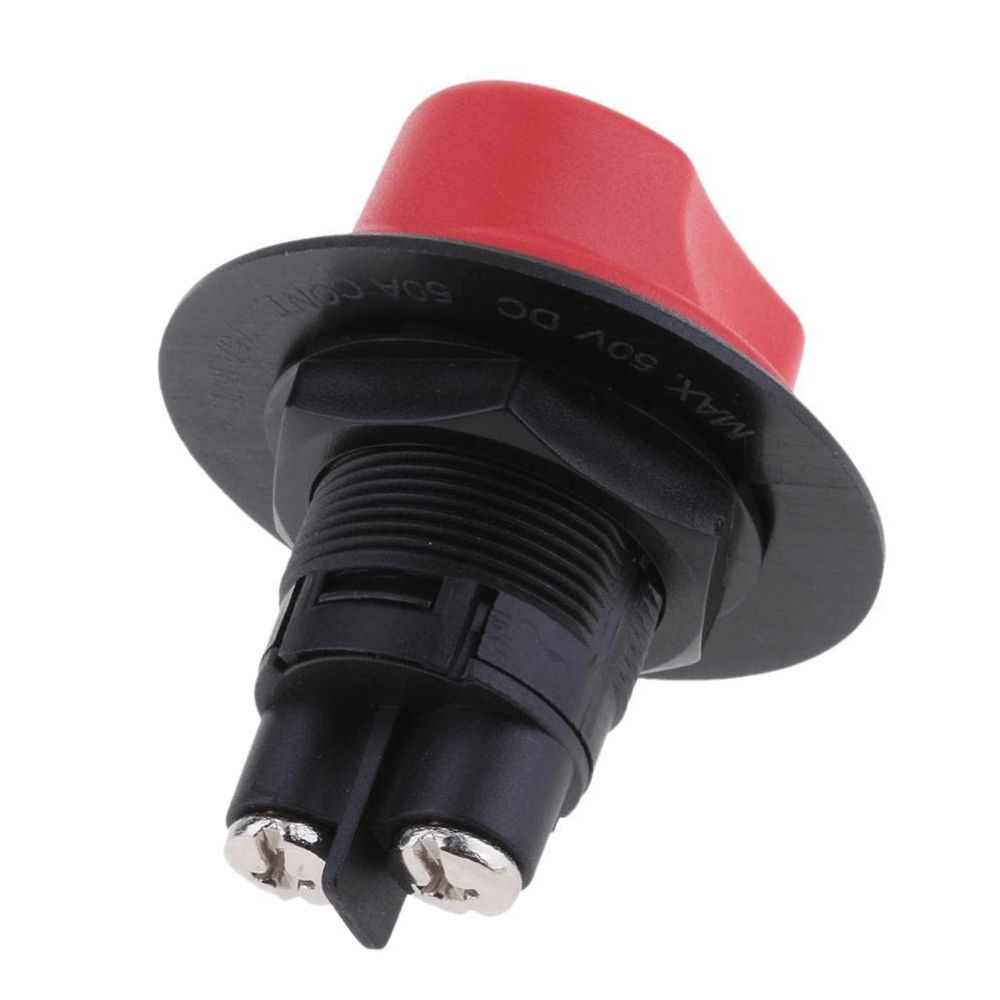

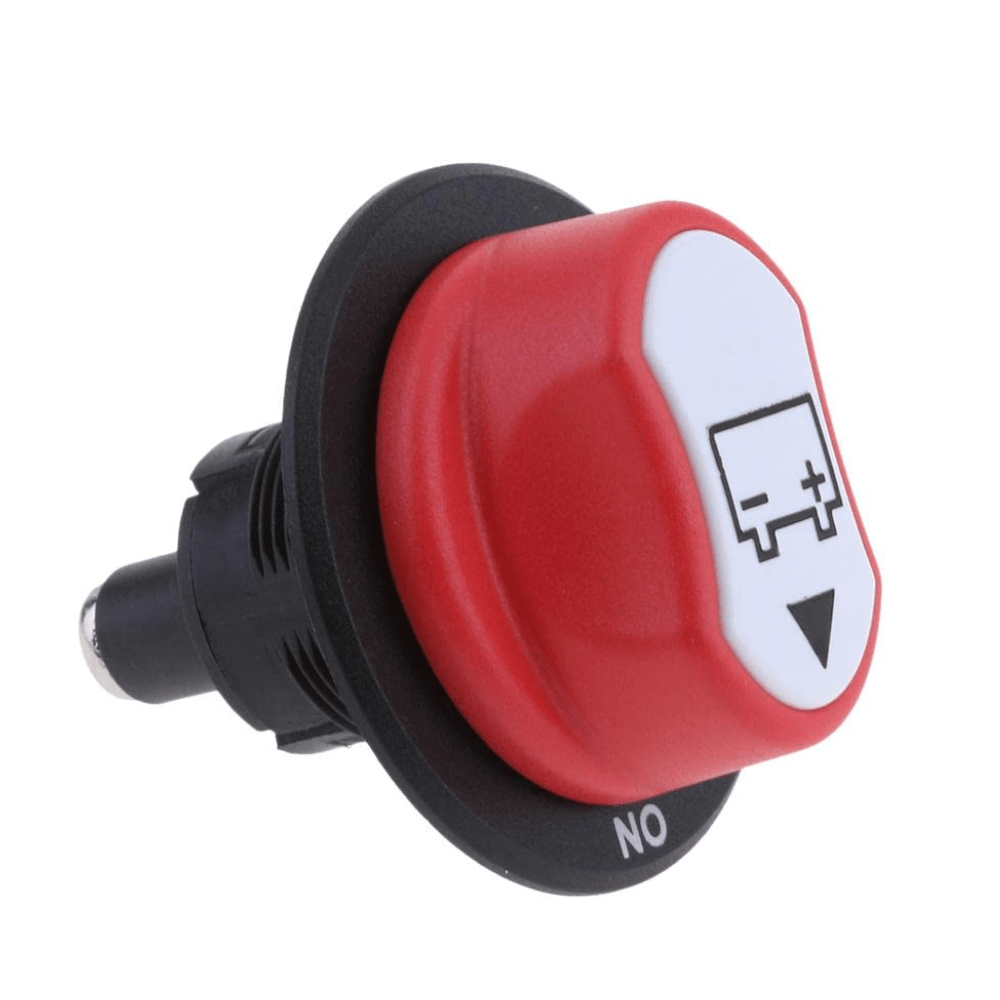

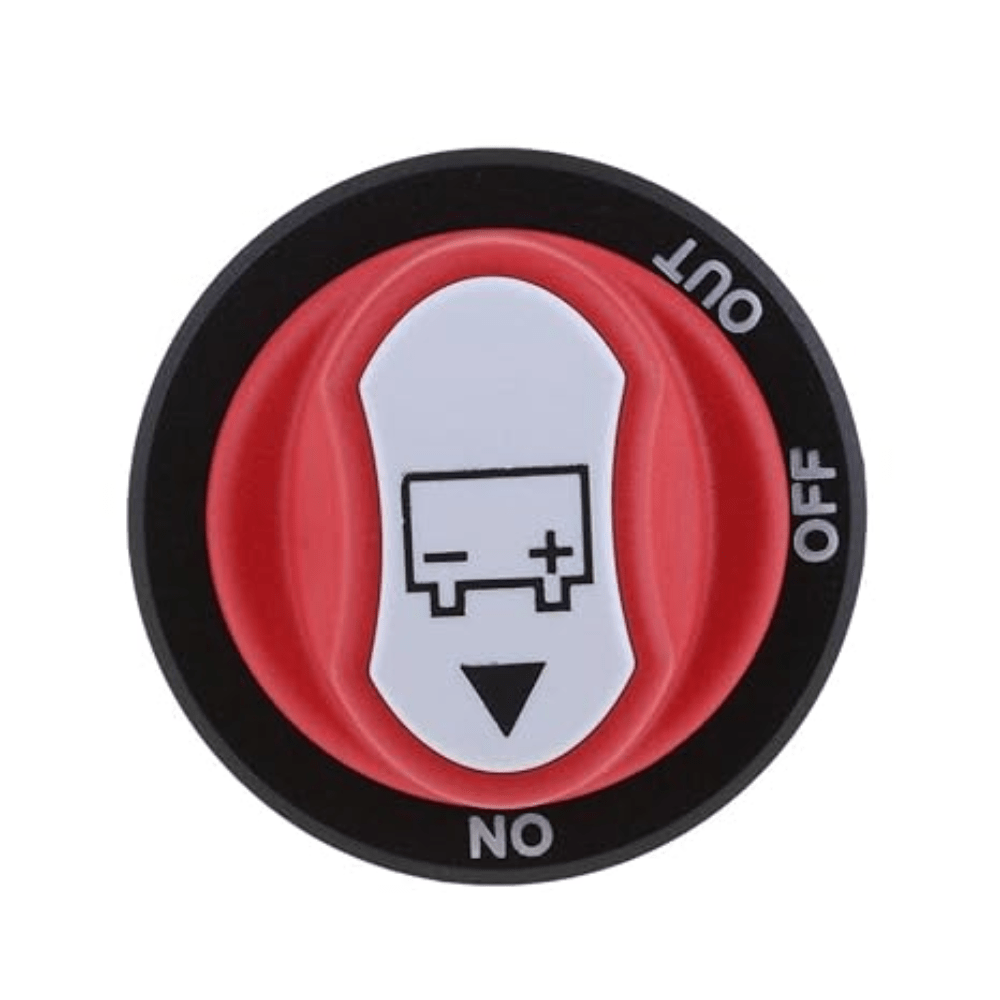

DC 32V 50A Car Rally Battery Switch Disconnector Power Isolator Cut Off Switch Kit for Truck Car Motorcycle Boat

Specifications Operating Voltage: 12 V DC (compatible with 12–24 V systems) Rated Current (Continuous): 50 A Maximum Voltage: Up to 50 V DC (varies slightly by model) Intermittent Current Capacity: ~75 A (short duration) Starting Surge Rating: 200 A–300 A for 5 seconds Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 100 MΩ at DC 500 V Dielectric Strength: AC 1000 V / 1 minute (between open contacts) Operating Temperature Range: −30 °C to 60 °C Housing Material: High-strength ABS plastic (heat-resistant and durable) Internal Contacts Material: Copper or copper-plated silver alloy Terminal Studs: Brass or copper, typically M6 or M8 size Switch Type: Manual rotary knob or removable key-type isolator Mounting Style: Surface or panel mount (rear terminal connection) Dimensions (Approximate): 68 mm × 68 mm × 75 mm Color: Red handle with black base (standard rally style) Protection Rating: IP55 – IP65 (dust and splash resistant, varies by model) Weight: Around 120 – 200 grams Accessories Included: Mounting screws, nuts, washers, sometimes a terminal cover or protective cap Primary Applications: Cars, trucks, motorcycles, boats, RVs, and rally/off-road vehicles
