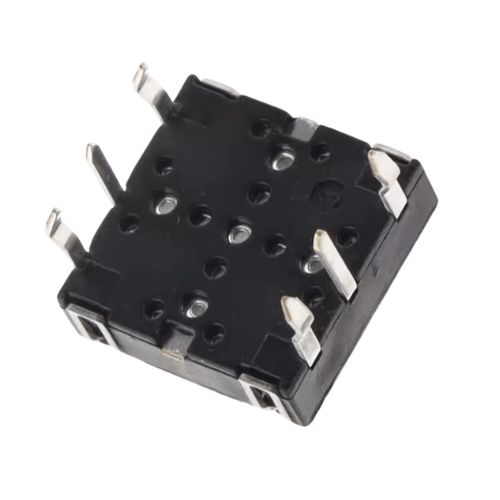

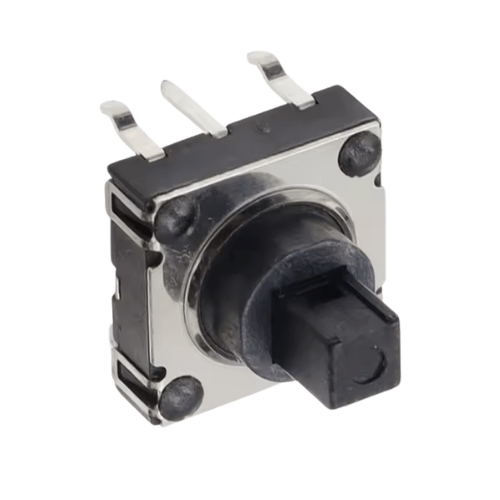

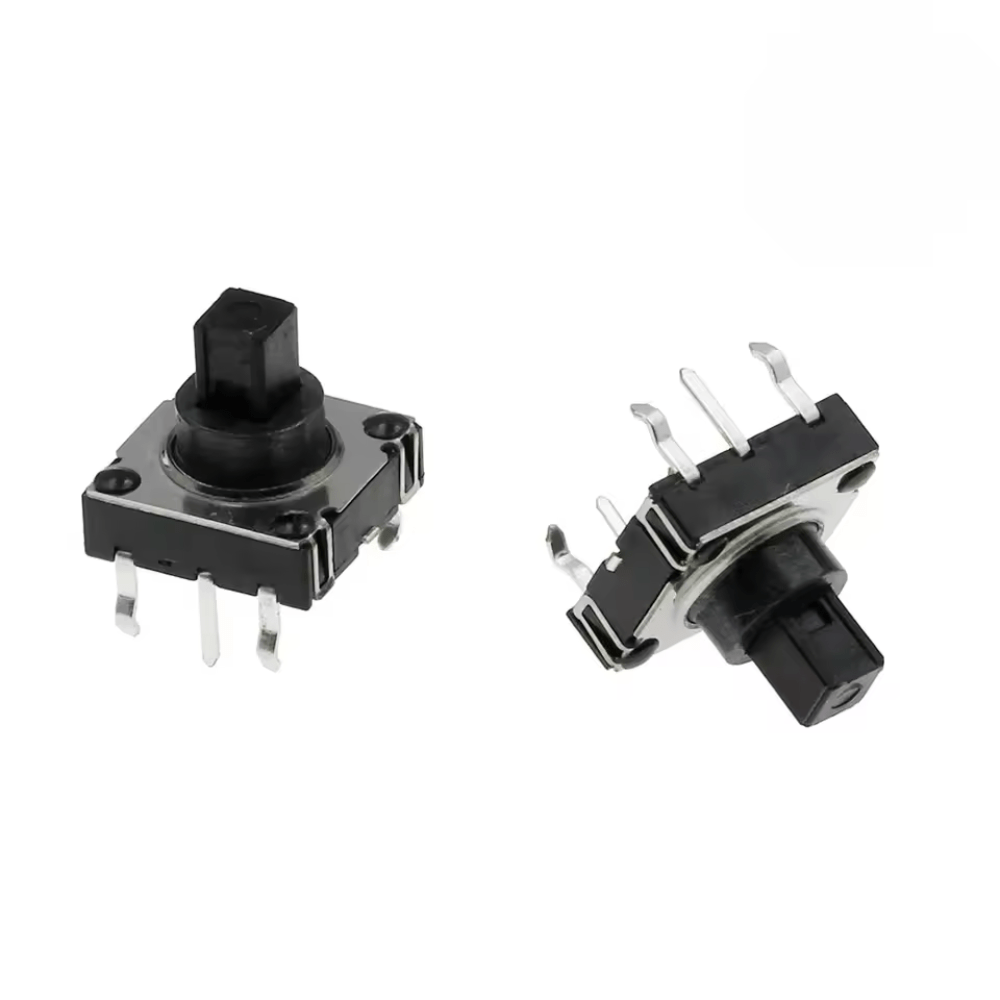

DIP 5 Five way Switch Multi-direction Switch

$ 34.21

inclusive of all taxes

100% Secure Payment

24/7 Dedicated support

Free shipping on all orders over $40.00

Exchange or money back guarantee for all orders

Categories: ,

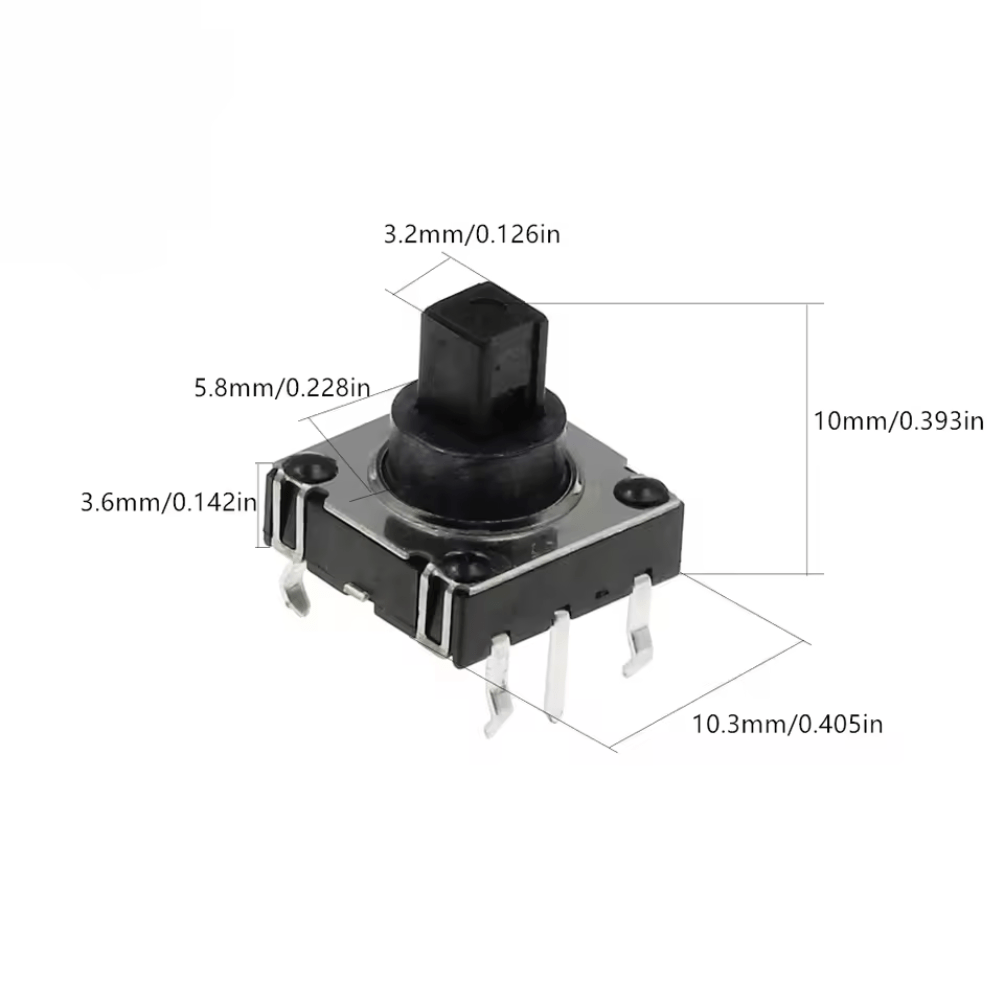

Specifications: Type: DIP 5 Five way Switch Multi-direction Switch Dimensions: 10.5mm x 10.3mm x 10.5mm Length: 10.5mm Width: 10.3mm Height: 10.5mm (including actuator) Mounting Type: DIP Number of Pins: 6 Pins Contact Rating: 50mA at 12V DC Contact Resistance: ≤ 100mΩ (initial) Insulation Resistance: ≥ 100MΩ at 500V DC Dielectric Strength: 250V AC for 1 minute Operating Voltage: 12V DC
