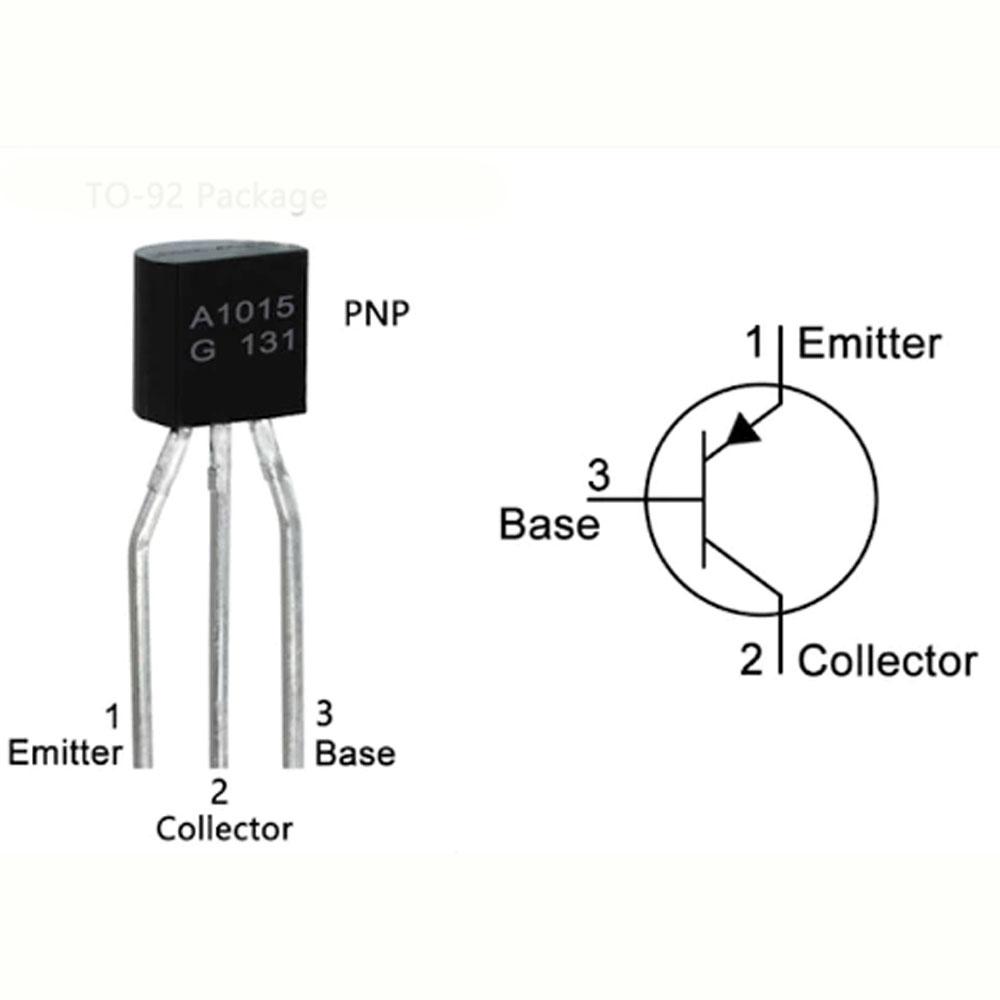

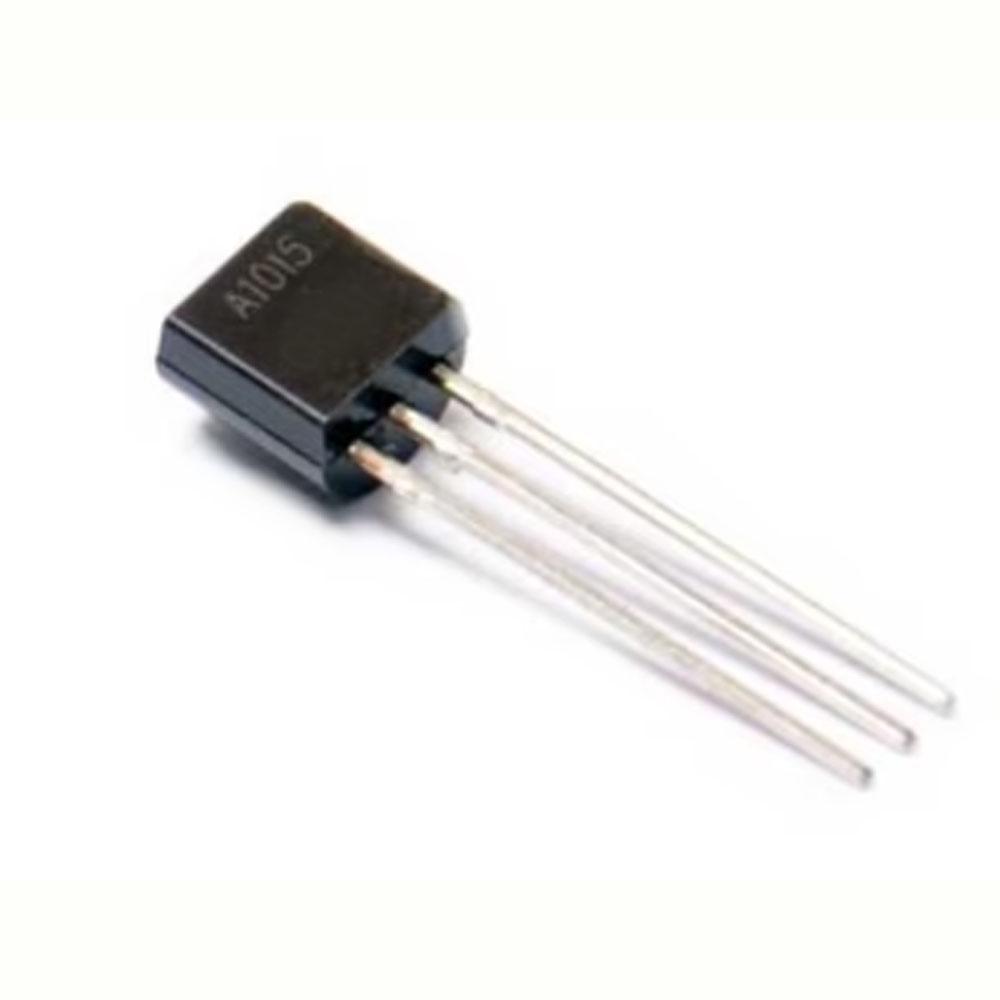

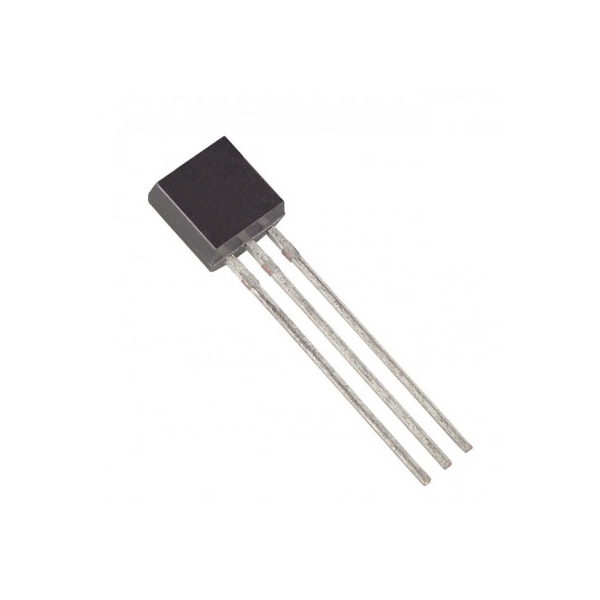

A1015 PNP Transistor (5 Pieces)

Specifications: Type: p-n-p Power Dissipation: 0.4watts High voltage and High current: Vceo = 50v and Ic = 150mA Low Noise: 1dB Case Material: molded plastic Collector power dissipation: 400mW DC current gain: 400 Collector Emitter and Collector Base breakdown voltage: 50Vdc Base Emitter Saturation Voltage: 1.1Vdc Collector-Emitter Saturation Voltage: 0.3Vdc Base Emitter voltage: 1.45Vdc Complementary to 2SC1815 Operating Temperature and Storage Temperature: -55℃ to 150℃
