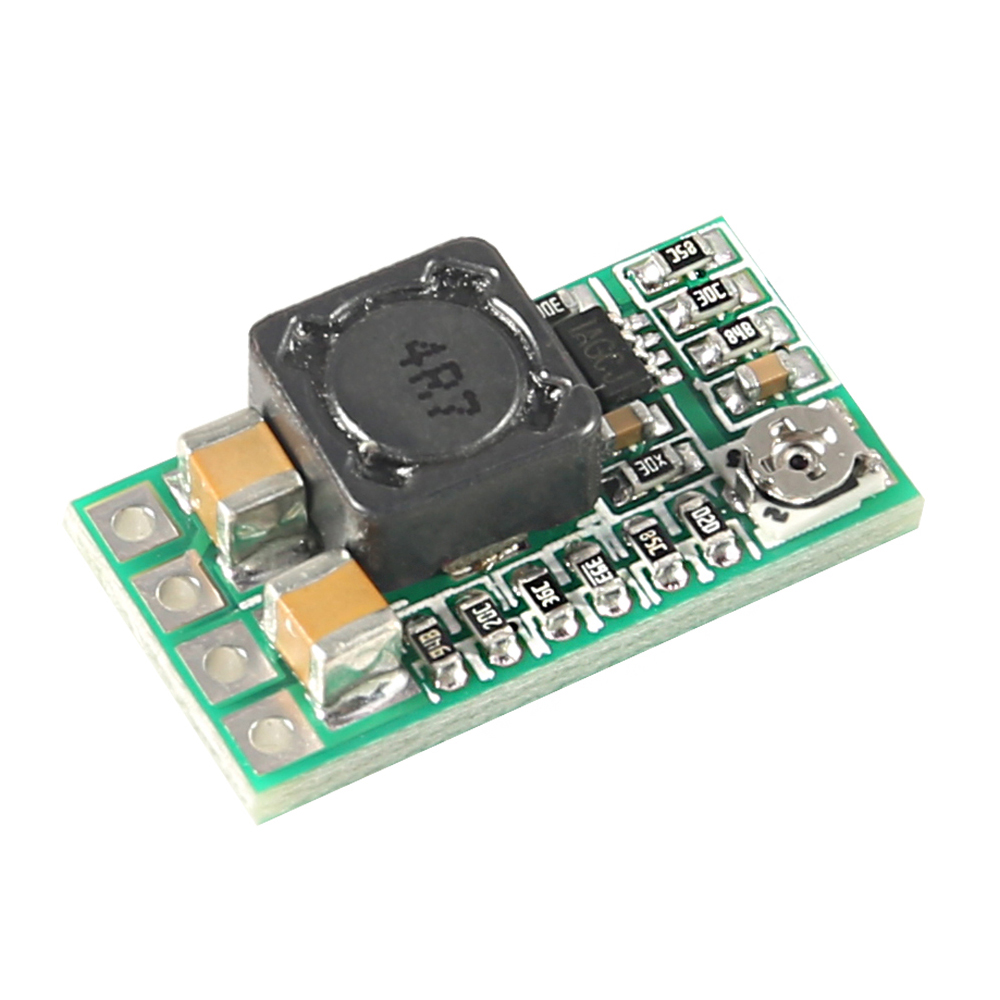

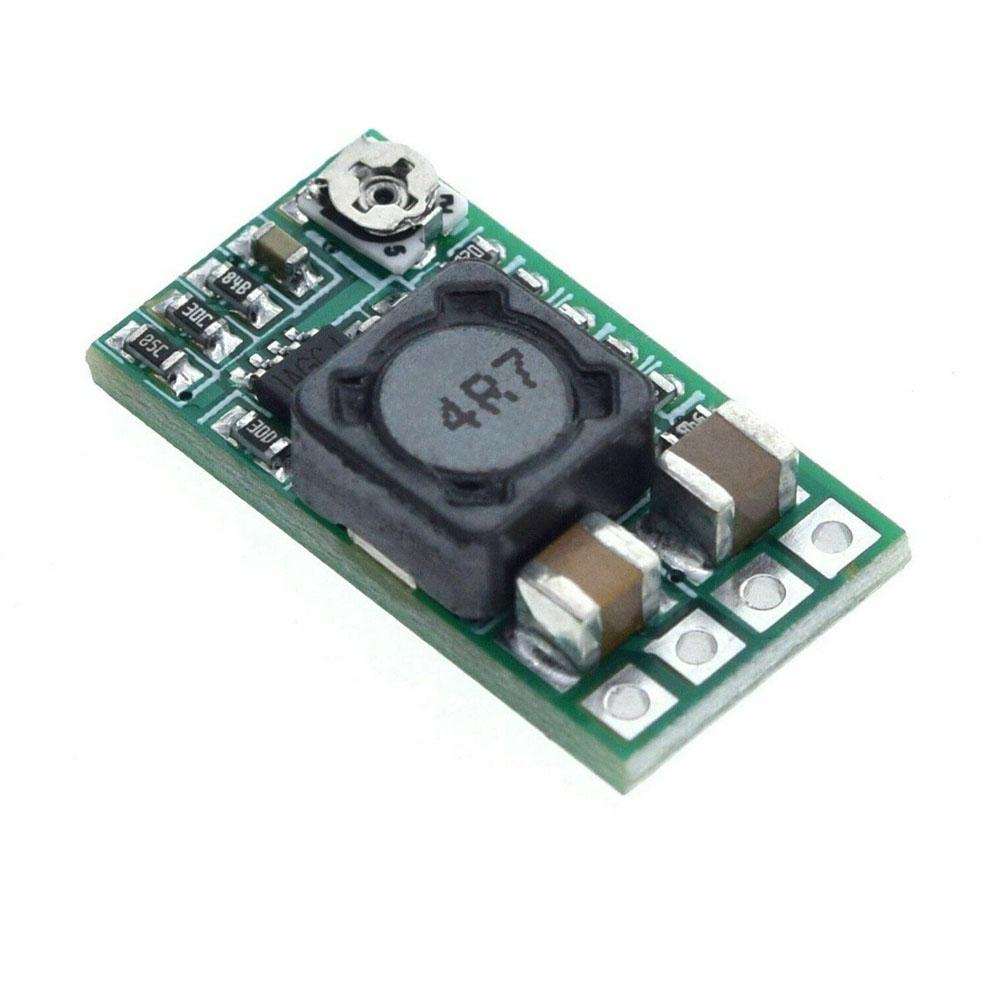

12v-24v to 5V 3A Super Mini Super Size DC Step-Down Module With 97.5% Efficiency
Brand :
$ 0.64
Specifications : Input Voltage:DC 4.5-24V Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V) Output Current: 3A (max),actual testing input 12V output 1.5A Transform Efficiency: 97.5%(max) (6.5 to 5V 0.7A) Switch Frequency: 500KHz Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width Operating Temp.: -40 Celsius-85 Celsius Static Current: 0.85MA Load Adjust Rate: -1% Voltage Adjust Rate: -0.5% Dynamic Response Speed: 5% 200uS
