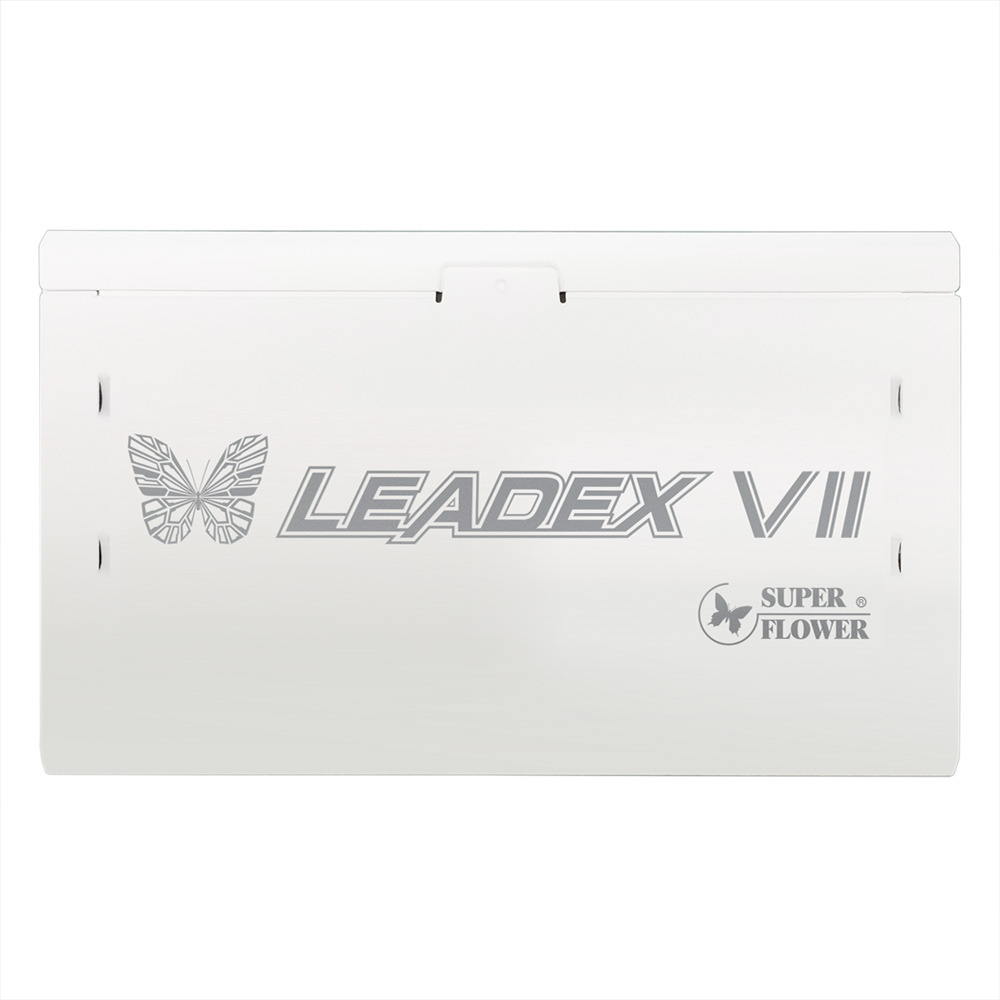

Super Flower Leadex VII GOLD-1000W ATX3.1, PCIe5.1 (white)

About Super Flower Leadex VII GOLD-1000W White SMPS Specification Category Details Series / Certification LEADEX VII XG 1000 W White Edition; certified 80 PLUS Gold; also achieves Cybenetics Platinum levels of overall efficiency on both 115 V and 230 V inputs ATX & Power Excursion Compliant with Intel ATX 3.0 and 3.1 standards; supports up to 200 % transient power loads via enhanced design including HCS terminals and dual 8-pin power sockets converting to a 12 4-pin GPU connector Cooling Design Equipped with a 140 mm FDB fan featuring a 9-blade design, offering accurate RPM control, lower noise output, and better cooling; includes ECO/auto fan mode for silent idle operation Cable Design Fully modular system using ultra-flexible ribbon cables, enhancing internal airflow and simplifying cable routing Component Quality Built with 100 % Japanese 105 °C capacitors on both main board and modular panel, ensuring durability and reliability Input & Protection Features Supports 100–240 V full-range auto voltage detection with active PFC; includes standard protections like OVP, OCP, OPP, SCP, UVP, OTP, NLO, and surge/inrush protection Efficiency Performance Efficiency profile at 115 V: 87 % (20 %), 90 % (50 %), 87 % (100 %); Cybenetics Platinum efficiency ratings up to ≈91 % on 115 V and ≈93 % on 230 V lines Additional Features & Compliance Complies with Energy Star, EuP regulations; ECO fan mode switch; robust design for gaming builds; supports SLI/CrossFire configurations; completed over 2000 on/off cycles; uses lead-free materials, RoHS/WEEE compliant Physical Specs Dimensions approx. 150 × 86 × 150 mm; compact design suitable for many systems
