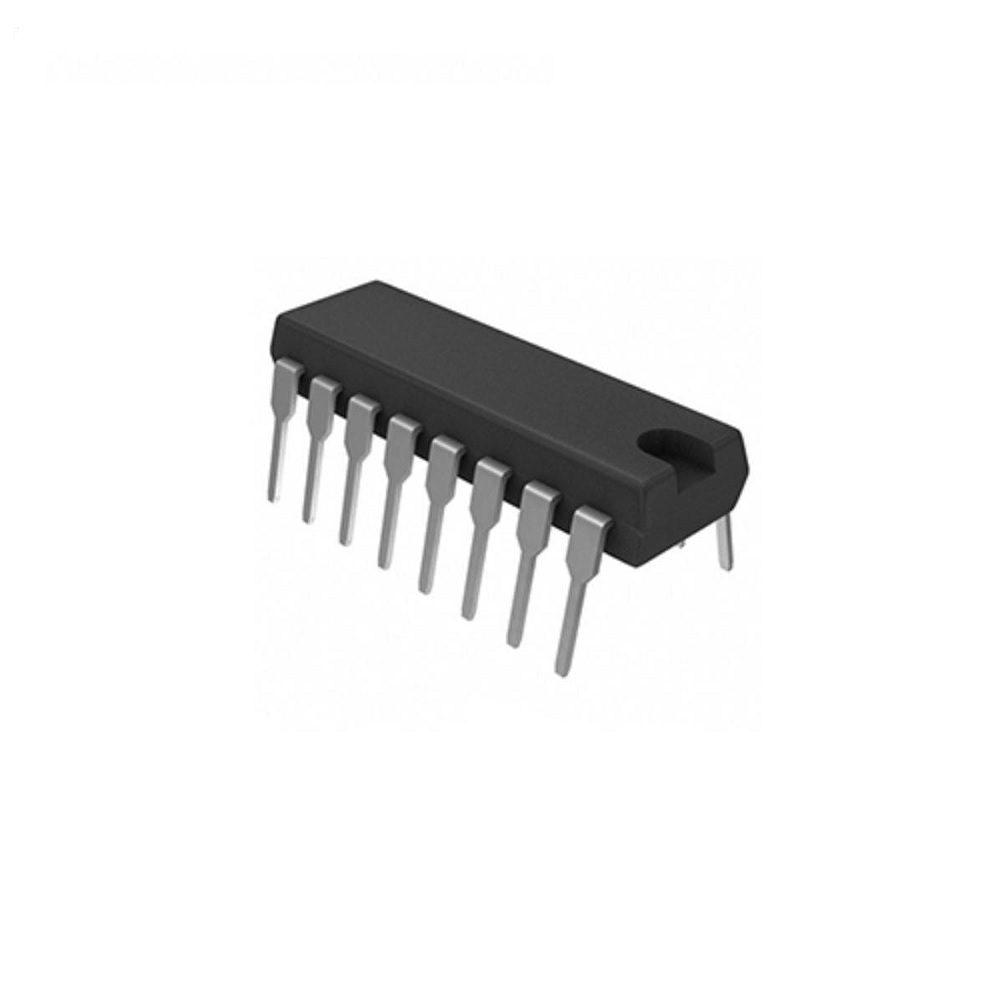

74HC595 8-bit Serial to Parallel Shift Register IC

Specifications: Supply Voltage (VCC − 0.5 to 7.0V Input Voltage (VIN) −1.5V to VCC 1.5V Output Voltage (VOUT) − 0.5 to VCC 0.5V Clamp Diode Current (IIK, IOK) ± 20 mA DC Output Current, per pin (IOUT) ± 35 mA DC VCC or GND Current, per pin (ICC) ± 70 mA Storage Temperature Range (TSTG) − 65°C to 150°C Power Dissipation (PD) (Note 4) 600 mW S.O. Package only 500 mW Lead Temperature (TL) (Soldering 10 seconds) 260°C
